Small Size Scissor Pallet Truck , High Lift Pallet Truck With Lifting Height 800mm
Small Size Scissor Pallet Truck , High Lift Pallet Truck With Lifting Height 800mm
Specifications
Brand Name :
REACH
Model Number :
JF
Certification :
CE, TUV
Place of Origin :
Zhejiang, China
MOQ :
6 sets
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
40000 sets per month
Delivery Time :
25 - 30 days
Packaging Details :
6sets/pallet, 144 / 180sets for a 20ft container
Capacity :
1000kg
Lowered fork height :
85mm
Max. lifting height :
800mm
Steering wheel :
180*50mm
Fork wheel :
74*50mm
Width overall forks :
520/550/685mm
Turning radius :
1360mm
Service weight :
104-115kg
Description

1000kg scissor high lift hand pallet truck with lifting height 800mm

Quick Details

Model: High lift hand pallet truck JF

​​​Capacity: 1000kg

Lowered fork height: 85mm​

​Max. lift height: 800mm​​

Steering wheel: Φ180*50mm

​Fork wheel: Φ74*50mm

​Turning radius: 1360mm​​

​Service weight: 104-115kg

Advantages:

  • Can lift cargos to the position of 800mm height, used as a worktable, and is widely used in automobile, mould, electronics and other industries.

  • Ideal design with numerous possibilities makes this unit very suitable as pallet truck/scissor lift table.

  • Telescopic jack composes of 3 piston rods creating light pumping force giving great rigidity.

  • ​Support legs come into operation automatically.

  • It prevents the unit from moving when the forks are raised to keep the safety of the operator.

  • ​Truck automatically slows the descending speed when heavy goods loaded to prevent cargo damage.

  • 210 degree turning radius.

  • ​Reduce physical effort and considerably improve the ergonomic conditions at work stations by raising the trucks to the desired height.

  • ​2 lateral stabilizers when raised ensure good stability.

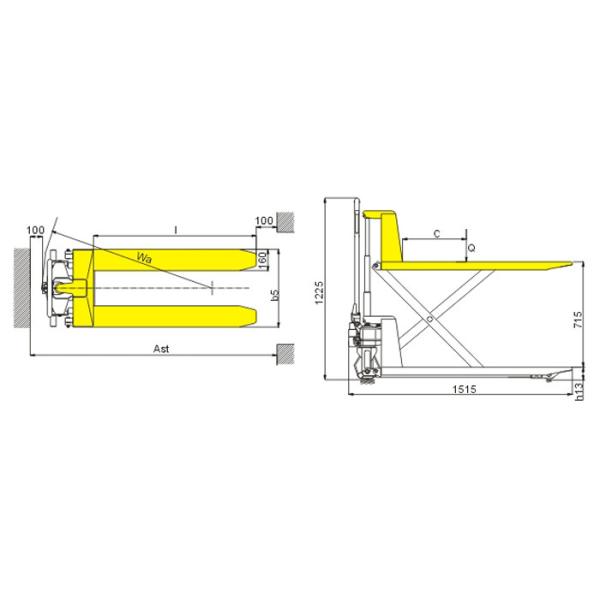

SPECIFICATIONS
Model JF
Capacity kg 1000
Lowered fork height mm 85
Steering wheel mm 180*50
Fork wheel mm 74*50
Fork length mm 1150
Width overall forks mm 520/550/685
Aisle width for pallets 1000*1200 crossways mm 1715
Aisle width for pallets 800*1200 lengthways mm 1765
Turning radius mm 1360
Service weight kg 104-115

​

​
