2000kg Capacity Motorised Pallet Truck Reliable Design With Electronic Scale
2000kg Capacity Motorised Pallet Truck Reliable Design With Electronic Scale
Specifications
Brand Name :
REACH
Model Number :
CBD20KC
Certification :
CE, TUV
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
600 sets per month
Delivery Time :
25 - 30 days
Packaging Details :
1set / pallet or 1set / wooden box
Capacity :
2000kg
Front wheels :
250*70mm
Rear wheels :
82*126mm
Balance wheels :
127*57mm
Max. lifting height :
202mm
Fork dimensions :
54/186/1100(1150/1220)mm
Width overall forks :
556/656/691mm
Max. deviation (rate) :
±2‰
Description

2000kg capacity electric pallet truck with electronic scale

Quick details:

Model:​ Electric pallet truck with scale CBD20KC​

Capacity: 2000kg

Lowered fork height: 82mm

Max. Lifting height: 202mm

Fork dimensions: 54/186/1100(1150/1220)mm

Max. deviation (rate): ±2‰

Battery: 24V210AH

​Service weight: 720kg

Advantages:​

  • Compact, flexible, easy to operate, safe for operator.
  • Good passing performance, max. gradeability 8/20%.
  • Floating driving wheel, shock proof, stable.
  • The balance wheel is easy to disassemble and easy to maintain.
  • The driving motor is AC motor, no carbon brush, no maintenance, and greatly prolongs the service life.
  • Side way battery which is easy to change, make the electric pallet truck can do non-stop working.
  • The connecting rod is different from the traditional connecting rod type, it is never bent and has adjustable length.
  • Double guide wheel, convenient to go in and out the pallets.
  • The design of the cover is reasonable and reliable, and the disassembly is convenient, so that the maintenance of the electrical parts is very easy.
  • The integration of electrical equipment layout, neat lines, clear, easy maintenance, electrical system reliable, shockproof.
  • With the world famous brand weighing display instrument, the instrument has shockproof, waterproof function, with high reliability. The electric pallet truck is equipped with 8 weighing sensors, the performance is reliable, weighing accuracy is high.
  • Can choose printer as an option.

2T Electric pallet truck with scale

2000kg Capacity Motorised Pallet Truck Reliable Design With Electronic Scale

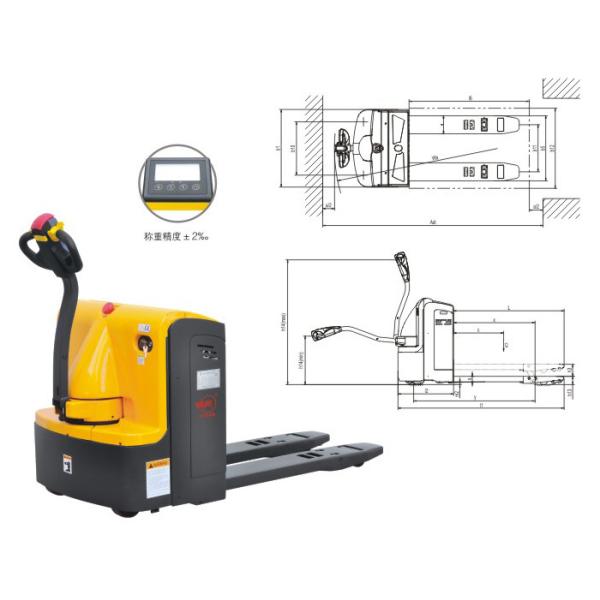

SPECIFICATIONS OF ELECTRIC PALLET TRUCK WITH SCALE
Model CBD20KC
Battery type 1 set side way battery
Load capacity/rated load kg 2000
Load center distance mm 600
Load distance, centre of drive axle to fork mm 815/865/935
Tread mm 1229/1279/1349
Axle load, full capacity, front/rear kg 1240/1450
Axle load, unload, front/rear kg 540/150
Tyre size, front mm 250*70
Tyre size, rear mm 82*126
Additional wheels (dimensions) mm 127*57
Max. lifting height mm 202
Height of tiller in drive position min./max. mm 780/1230
Fork height, lowered mm 82
Overall length mm 1673/1723/1793
Length to face of forks mm 573
Overall width mm 775
Fork dimensions mm 54/186/1100(1150/1220)
Width overall forks mm 556/656/691
Aisle width for pallets 1000*1200 crossways mm 2033/2083/2153
Aisle width for pallets 800*1200 lengthways mm 2133/2133/2153
Turning radius mm 1400/1450/1520
Travel speed, laden/unladen km/h 5.5/5.6
Lift speed, laden/unladen m/s 0.04/0.05
Lower speed, laden/unladen m/s 0.06/0.05
Max. gradeability, laden/unladen % 8/20
Service brake Electromagnetic brake
Max. deviation (rate) ±2‰
Dive motor power kw 1.2
Lift motor power kw 1.2
Battery V/Ah 24/210
Service weight kg 720
