Detachable Double Pallet Truck , Low Shelves Warehouse Pallet Jack Truck
Detachable Double Pallet Truck , Low Shelves Warehouse Pallet Jack Truck
Detachable Double Pallet Truck , Low Shelves Warehouse Pallet Jack Truck
Detachable Double Pallet Truck , Low Shelves Warehouse Pallet Jack Truck
Specifications
Brand Name :
REACH
Model Number :
CBD20S
Certification :
CE, TUV
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
600 sets per month
Delivery Time :
25 - 30 days
Packaging Details :
1set / pallet or 1set / wooden box
Capacity :
2000kg
Lowered fork height :
90mm
Max. lifting height :
1600/2000/2500mm
Tyre size, front :
250*70mm
Tyre size, rear :
80*70mm
Fork dimensions :
60/180/1100mm
Initial lift :
120mm
Battery :
24V210AH
Description

Double pallet 2000kg electric pallet truck widely used in low shelves warehouse

Quick details:

Model:​ Double Pallet Electric Pallet Truck CBD20S

Capacity: 2000kg

Lowered fork height: 90mm

Max. Lifting height: 1600/2000/2500mm

Initial lift: 120mm

Aisle width for pallets, 1000*1200 crossways: 2238mm

Aisle width for pallets, 800*1200 lengthways: 2288mm

Battery: 24V210AH

​Service weight: 950kg

Advantages:​

  • Carry two pallets at one single time.
  • The tiller head is equipped with an emergency reverse direction switch, which provides safer operation.
  • Built-in pressure relief valve protects the truck from overload, and increase the electric pallet truck's safety.
  • Stepless speed control and turtle speed switch.
  • Vertical driving wheel offers small turning radius.
  • Dividable and exchangeable mast.
  • Adjustable floating balance wheel is resistant to wear and stable.
  • Sliding rail connects the moving part of the front and rear, makes lifting and lowering stable.
  • CANbus technology reduces wiring complexity.
  • Hall-effect throttle control eliminates ware components and prolongs its use time.
  • The balance wheel is detachable,convenient to maintain.
  • Integral and modularized electrical system makes the maintenance of the electrical parts convenient.

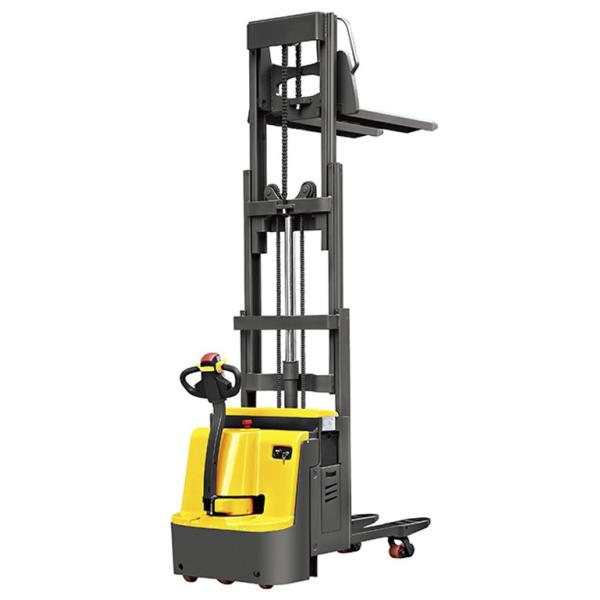

2000kg capacity Double pallets electric pallet truck

Detachable Double Pallet Truck , Low Shelves Warehouse Pallet Jack Truck

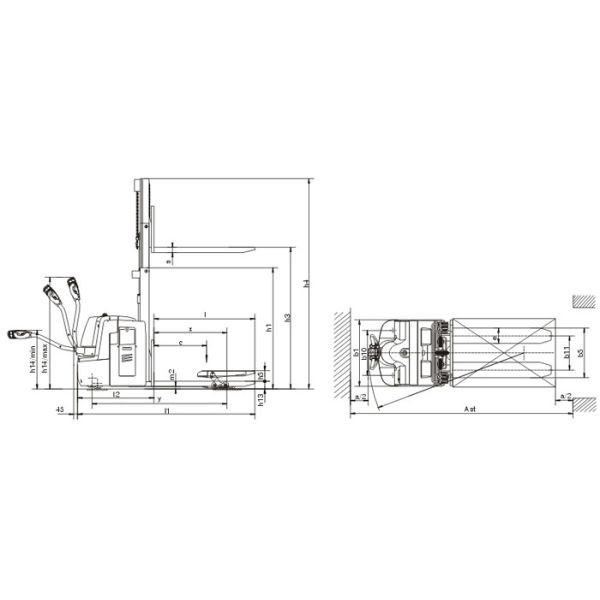

SPECIFICATIONS OF DOUBLE PALLETS ELECTRIC PALLET TRUCK
Model CBD20S
Load capacity/rated load kg 2000
Load capacity/rated load with mast lift kg 1000
Load capacity/rated load with wheel arm lift kg 2000
Load center distance mm 600
Load distance, centre of drive axle to fork mm 831
Fork height, lowered mm 90
Tyre size, front mm 250*70
Tyre size, rear mm 80*70
Additional wheels (dimensions) mm 127*57
Height, mast lowered mm 1082/1212/1382
Max. lifting height mm 1600/2000/2500
Initial lift mm 120
Height of tiller in drive position min./max. mm 780/1230
Overall length mm 1962
Length to face of forks mm 862
Overall width mm 775
Fork dimensions mm 60/180/1100
Width overall forks mm 570/650
Aisle width for pallets 1000*1200 crossways mm 2238
Aisle width for pallets 800*1200 lengthways mm 2288
Turning radius mm 1705
Travel speed, laden/unladen km/h 4.5/5.2
Lift speed, laden/unladen m/s 0.03/0.04
Lowering speed, laden/unladen m/s 0.05/0.045
Battery V/Ah 24/210
Service weight kg 950
