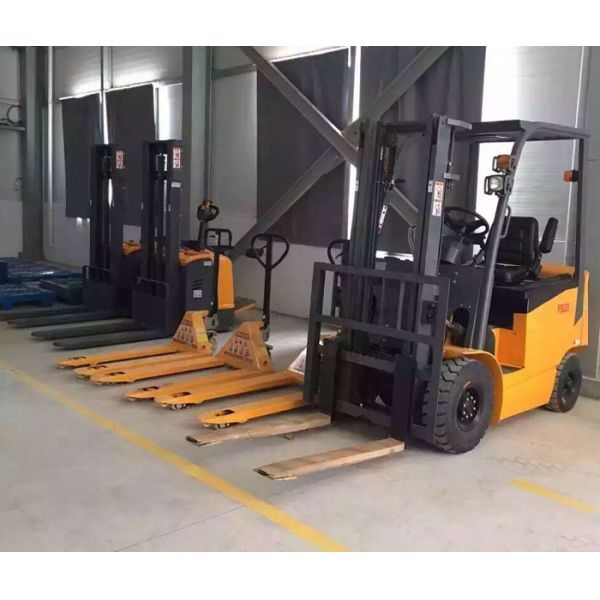

Hydraulic Operating Four Wheel Electric Forklift 1760mm Turning Radius
Hydraulic Operating Four Wheel Electric Forklift 1760mm Turning Radius
Hydraulic Operating Four Wheel Electric Forklift 1760mm Turning Radius
Hydraulic Operating Four Wheel Electric Forklift 1760mm Turning Radius
Specifications
Brand Name :
REACH
Model Number :
FB15
Certification :
CE, TUV
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
25 - 30 days
Packaging Details :
Nude
Battery :
48V400AH
Capacity :
1500kg
Max. gradeability :
15%
Max. lifting height :
6000mm
Fork dimensions :
35/100/1070mm
Turning radius :
1760mm
Travel speed, laden/unladen :
12~15km/h
Lift speed, laden/unladen :
＜0.6m/s
Description

REACH china 4 wheels 1.5 ton electric forklift truck battery voltage 48v​


Quick Details:

Capacity: 1500kg

Max. lifting height: 6000mm

Fork dimensions: 35/100/1070mm

Turning radius: 1760mm

Travel speed, laden/unladen: 12~15km/h

Lift speed, laden/unladen: ＜0.6m/s

Battery: 48V400AH

Max. gradeability​: 15%



Advantages:

  • ​​Electric forklift truck with broad vision, better to see the front.

  • Electric forklift truck with Multifunction display instrument​.

  • ​1.5 ton 6m Electric forklift truck with Intelligent buffer system​.

  • ​Electric forklift truck with Damping steering bridge​.

  • Electric forklift truck has the function of regenerative braking.

  • Hydraulic operating rod belt protective cover​ on the electric forklift truck.

  • The operator can adjust the position of the steering wheel on its own.

SPECIFICATIONS
Model FB15
Power electric
Operation type seat
Load capacitykg1500
Load center distancemm500
Lift heightmm3000-6000
Load distance, centre of drive axle to forkmm395
Wheelbasemm1300
Axle loading, laden front/rearkg4030/550
Axle loading, unladen front/rearkg1232/1848
Tyres type pneumatic/solid
Tyre size, frontmm590*179/577*162
Tyre size, rearmm470*137/461*127
Tread, frontmm890
Tread, rearmm920
Tilt of mast/fork carriage forward/backwardGrad6°-12°
Height, mast loweredmm2015-2610
Free liftmm0-180
Height, mast extendedmm4067-7067
Height of overhead guard(cabin)mm2105
Seat height/stand heightmm1043
Overall lengthmm3025
Length to face of forksmm2085
Overall widthmm1100
Fork dimensionsmm35/100/920
Fork carriage widthmm1088
Ground clearance, laden, below mastmm105
Ground clearance, centre of wheelbasemm115
Aisle width for pallets 1000*1200 crosswaysmm3305
Aisle width for pallets 800*1200 lengthwaysmm3125
Turning radiusmm1760
Internal turning radiusmm425
Travel speed, laden/unladenkm/h0-10
Lift speed, laden/unladenmm/s205
Lowering speed, laden/unladenmm/s＜600
Max. drawbar pull, laden/unladenN8990
Max. gradeability, laden/unladen%12/15
Acceleration time, laden/unladens0-3
BatteryV/Ah48/400
Type of drive control DC/AC
Operating pressure for attachmentsMpa15
Sound level at the driver's ear acc. to DIN 12053dB(A)＜60
Service weightkg3080
