Heavy Duty Walk Behind Pallet Stacker , Stand Type Ride On Pallet Stacker With Triplex Mast
Heavy Duty Walk Behind Pallet Stacker , Stand Type Ride On Pallet Stacker With Triplex Mast
Heavy Duty Walk Behind Pallet Stacker , Stand Type Ride On Pallet Stacker With Triplex Mast
Heavy Duty Walk Behind Pallet Stacker , Stand Type Ride On Pallet Stacker With Triplex Mast
Specifications
Brand Name :
REACH
Model Number :
CDD20M
Certification :
CE
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
25 - 30 days
Packaging Details :
1set / pallet
Capacity :
2000kg
Max. lifting height :
4500mm
Color :
Yellow or customized
Turning radius :
1629mm
Travel speed. laden/unladen :
4.5/5.6km/h
Lifting speed, laden/unladen :
0.09/0.11m/s
Lowering speed, laden/unladen :
0.12/0.09m/s
Battery :
24V275AH
Description

2000kg heavy duty stand type electric pallet stacker with triplex mast


Quick Details:

Description: High Lift Electric Pallet Stacker CDD20M
Capacity: 2000kg
Max. lifting height: 4500mm
Fork dimensions: 60/170/1070mm

Aisle width for pallets: 2464/2401mm
Lifting speed, laden/unladen: 0.09/0.11/s

Lowering speed, laden/unladen: 0.12/0.09m/s

Battery: 24V275AH


Advantages:​​​​

  • Emergency reverse device.
  • Built in unloading valve to protect the electric pallet stacker from overloading and improve the reliability of it.
  • Emergency power off switch.
  • Turtle shaped slow running switch.
  • Stepless speed change control.
  • Folding thickening pedal and guardrail enhance operator comfort and safety.
  • Side cylinder ensures wide vision operation and smooth vehicle structure.
  • The balance wheel with spring adjusting structure has good wear resistance and stability.
  • Strong imported portal frame.
  • Low voltage protection system to prolong the service life of battery.
  • CANbus technology simplifies the line and enhances the reliability of the whole electric pallet stacker.
  • Holzer sensor reduces wear and tear of electronic components and increases service life.

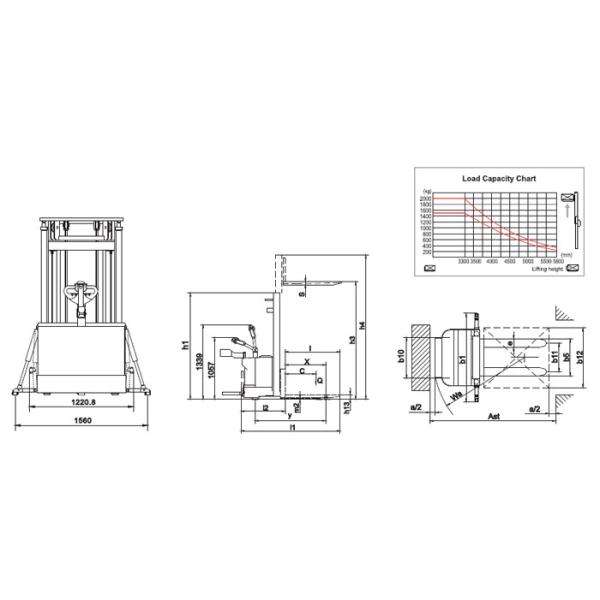

SPECIFICATIONS OF HIGH LIFT ELECTRIC PALLET STACKER
Model CDD20M
Load capacity kg 2000
Load center distance mm 500
Load distance, centre of drive axle to fork mm 870
Fork height, lowered mm 90
Tyre size, front mm 250*80
Tyre size, rear mm 80*70
Additional wheels (dimensions) mm 150*60
Height, mast lowered mm 2087
Max. lifting height mm 4500
Height, mast extended mm 5055
Overall length mm 1955
Length to face of forks mm 805
Overall width mm 1220.8-1630
Fork dimensions mm 60/170/1070(1150)
Width overall forks mm 580/695
Aisle width for pallets 800*1200 lengthways mm 2401
Turning radius mm 1629
Travel speed, laden/unladen km/h 4.5/5.6
Lift speed, laden/unladen m/s 0.09/0.11
Lowering speed, laden/unladen m/s 0.12/0.09
Battery V/Ah 24/275
Service weight kg 1450
