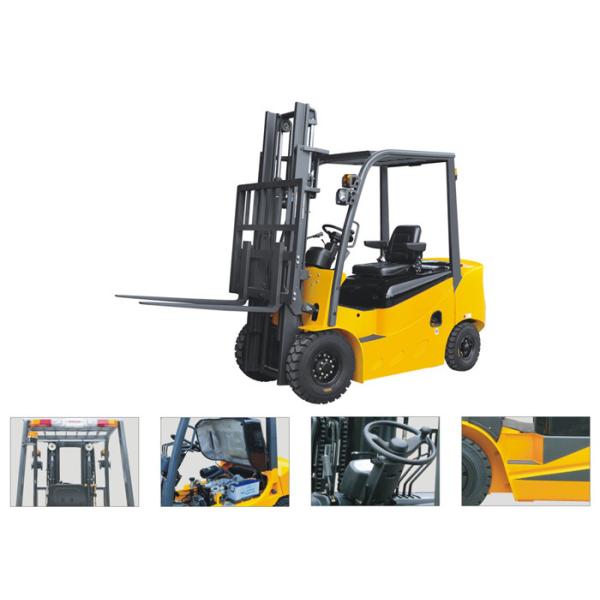

1.5 Ton Small Electric Forklift , 4 Wheel Drive Forklift CE Certification
1.5 Ton Small Electric Forklift , 4 Wheel Drive Forklift CE Certification
1.5 Ton Small Electric Forklift , 4 Wheel Drive Forklift CE Certification
1.5 Ton Small Electric Forklift , 4 Wheel Drive Forklift CE Certification
Specifications
Brand Name :
REACH
Model Number :
FG15
Certification :
CE, TUV
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
25 - 30 days
Packaging Details :
Nude
Capacity :
1500kg
Lifting height :
3000 to 6000mm
Load centre distance :
500mm
Tyres type :
pneumatic
Fork dimensions :
35/100/1070mm
Aisle width for pallets :
3700/3500mm
Turning radius :
1885mm
Travel speed :
16km/h
Description

Wholesale mini 1.5ton four wheel forklift with CE certificate​


Quick Details:

Model: Gas powered four wheel forklift FG15

Capacity: 1500kg

Lift height: 3000 to 6000mm

Load centre distance​: 500mm

Tyres type: pneumatic

Fork dimensions​: 35/100/1070mm

Aisle width for pallets​: 3700/3500mm

Turning radius: 1885mm

Travel speed: 16km/h


Advantages:

  • ​​Gas four wheel forklift truck offers different engine selection with low emission.

  • Gas four wheel forklift truck engine cover with gas-filled cylinders and sound absorbing material.

  • Gas four wheel forklift truck with lowering speed safety valve.

  • Gas four wheel forklift truck options: 1. Up set exhaust; 2. cabin with heater.

  • Gasoline four wheel forklift with multifunction digital display instrument.

  • ​Different engine type can be choosen.

  • ​Option for gasoline four wheel forklift: high position exhaust.


SPECIFICATIONS
Model FG15
Power Gasoline
Operation type seat
Load capacitykg1500
Load center distancemm500
Max. lifting heightmm3000-6000
Load distance, centre of drive axle to forkmm395
Wheelbasemm1580
Axle loading, laden front/rearkg3280/900
Axle loading, unladen front/rearkg1183/1497
Tyres type pneumatic
Tyre size, frontmm590*179/577*162
Tyre size, rearmm470*137/461*127
Tread, frontmm890
Tread, rearmm920
Tilt of mast/fork carriage forward/backwardGrad6°-12°
Height, mast loweredmm2015-2610
Height, mast extendedmm4067-7067
Height of overhead guard(cabin)mm2030
Seat height/stand heightmm1043
Overall lengthmm3401
Length to face of forksmm2331
Overall widthmm1100
Fork dimensionsmm35/100/1070
Fork carriage widthmm1088
Ground clearance, laden, below mastmm105
Ground clearance, centre of wheelbasemm115
Aisle width for pallets 1000*1200 crosswaysmm3700
Aisle width for pallets 800*1200 lengthwaysmm3500
Turning radiusmm1885
Internal turning radiusmm435
Travel speed, laden/unladenkm/h0-16
Lift speed, laden/unladenmm/s480
Lowering speed, laden/unladenmm/s＜600
Max. drawbar pull, laden/unladenN15120
Max. gradeability, laden/unladen%20/27
Acceleration time, laden/unladens3/4
Engine type K21/491
Engine powerkw31/41
Rated speedR/Min2300/2500
Type of drive control mechanical/hydraulic
Operating pressure for attachmentsMpa17
Sound level at the driver's ear acc. to DIN 12053dB(A)＜82
Service weightkg2680
