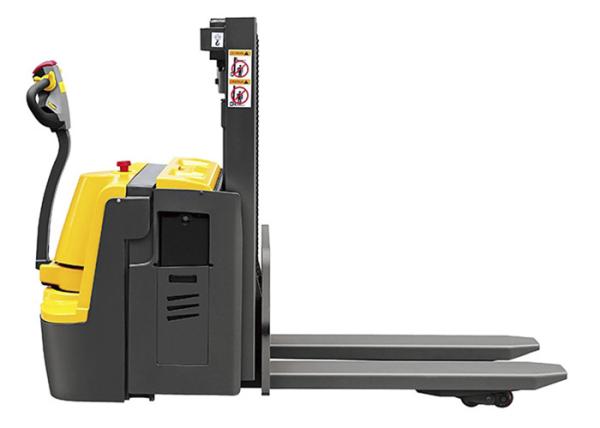

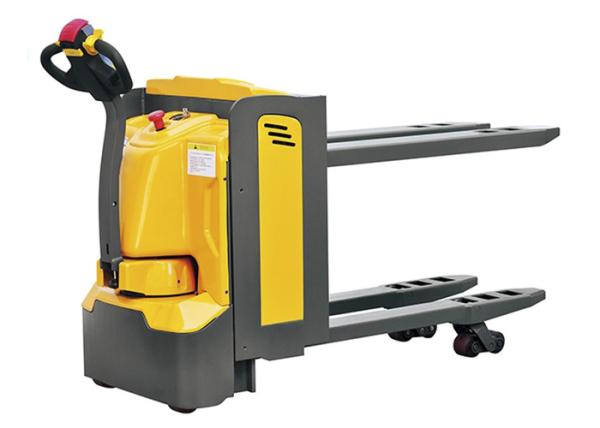

Double Pallet Warehouse Forklift Trucks Electric Type With Wear Resistant Wheel
Double Pallet Warehouse Forklift Trucks Electric Type With Wear Resistant Wheel
Double Pallet Warehouse Forklift Trucks Electric Type With Wear Resistant Wheel
Double Pallet Warehouse Forklift Trucks Electric Type With Wear Resistant Wheel
Specifications
Brand Name :
REACH
Model Number :
CBD20S
Certification :
CE, TUV
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
25 - 30 days
Packaging Details :
Nude
Capacity :
2000kg
Lowered fork height :
90mm
Lifting height :
1600/2000/2500mm
Initial lift height :
120mm
Aisle width for pallets :
2238/2288mm
Travel speed, load/unload :
4.5/5.2km/h
Battery :
24V210AH
Service weight :
950kg
Description

Double pallet 2000kg electric warehouse forklift trucks widely used in low shelves warehouse


Quick Details:

Model: Double pallet warehouse forklift trucks CBD20S
​​​Capacity: 2000kg
Lift height: 1600/2000/2500mm
Fork dimensions: 60/180/1100mm
Travel speed, load/unload: 4.5/5.2km/h

​Lift speed, load/unload: 0.03/0.04m/s

​Lower speed, load/unload: 0.05/0.045m/s
Battery: 24V210Ah


Advantages:

​

Structural​

  • Vertical driving wheel offers small turning radius.
  • ​Dividable and exchangeable mast.
  • ​Adjustable floating balance wheel is resistant to wear and stable.
  • ​Sliding rail connects the moving part of the front and rear, makes lifting and lowering stable.​

Safety and efficiency

  • ​Carry two pallets at one single time.
  • The tiller head is equipped with an emergency reverse direction switch, which provides safer operation.
  • Built-in pressure relief valve protects the truck from overload, and increases the truck's safety.
  • Stepless speed control and turtle speed switch.
  • Side way battery.

Easy maintenance

  • CANbus technology reduces wiring complexity.
  • ​Hall-effect throttle control eliminates ware components and prolongs its use time.
  • ​The balance wheel is detachable, convenient to maintain.
  • ​Integral and modularized electrical system makes the maintenance of the electrical parts convenient.



Double Pallet Warehouse Forklift Trucks Electric Type With Wear Resistant Wheel

SPECIFICATIONS OF DOUBLE PALLET WAREHOUSE FORKLIFT TRUCKS
Model CBD20S
Capacity kg 2000
Capacity with mast lift kg 1000
Capacity with wheel arm lift kg 2000
Load center distance mm 600
Lowered fork height mm 90
Height, mast lowered mm 1082-1382
Max. lifting height mm 1600-2500
Initial lift mm 120
Overall length mm 1962
Overall width mm 775
Fork size mm 60/180/1100
Width overall forks mm 570/650
Aisle width for pallets 1000*1200 crossways mm 2238
Aisle width for pallets 800*1200 lengthways mm 2288
Turning radius mm 1705
Travel speed, laden/unladen km/h 4.5/5.2
Lift speed, laden/unladen m/s 0.03/0.04
Lowering speed, laden/unladen m/s 0.05/0.045
Battery V/Ah 24/210
Service weight kg 950

Double Pallet Warehouse Forklift Trucks Electric Type With Wear Resistant Wheel
