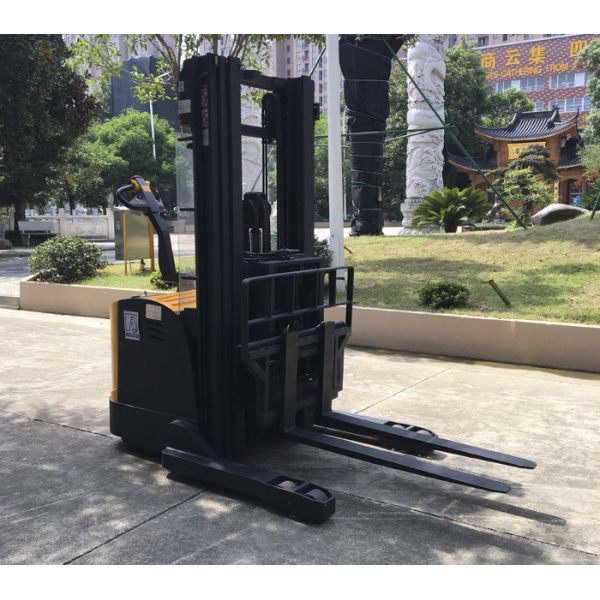

Magnetic Valve Control Warehouse Forklift Trucks Reach Type 1500kg Capacity
Magnetic Valve Control Warehouse Forklift Trucks Reach Type 1500kg Capacity
Magnetic Valve Control Warehouse Forklift Trucks Reach Type 1500kg Capacity
Magnetic Valve Control Warehouse Forklift Trucks Reach Type 1500kg Capacity
Specifications
Brand Name :
REACH
Model Number :
CQDH15A
Certification :
CE, TUV
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
25 - 30 days
Packaging Details :
Nude
Capacity :
1500kg
Operation type :
Standing
Load center :
500mm
Max. lifting height :
2500-5600mm
Aisle width for pallets :
2871/2830mm
Turning radius :
1613/1647mm
Battery :
24V360AH
Reach distance :
500mm
Description

Magnetic valve control 1500kg warehouse forklift trucks electric fork reach type


Quick Details:

Model: Electric reach stacker warehouse forklift trucks CQDH15A
​​​Capacity: 1500kg
Lift height: 2500-5600mm
Fork dimensions: 35/100/1070mm

​Aisle width for pallets 1000*1200 lengthways: 2871mm

​Aisle width for pallets 800*1200 crossways: 2830mm

​Turning radius: 1613/1647mm
Travel speed, load/unload: 4.8/5km/h​

​Lifting speed, load/unload: 0.095/0.12m/s

​Lowering speed, load/unload: 0.2/0.15m/s​
Reach distance: 500mm

Battery: 24V360Ah​


Advantages:

  • Compact structure are specially suit to use in very narrow aisle warehouse.
  • Low gravity, ensure safety operation.
  • With disassemble type platform and protection arm.
  • Use hydraulic type multi-valve to control I lifting/lowering, fork reach, fork tilting.
  • Use handle to control the truck forward and backward.
  • The mast and frame are dividable and exchangeable.
  • With small turning radius, with good operation performance.
  • Multi function display with BDI and hour meter.
  • Single scissor fork reach distance is 500mm. Option of double reach can reach 1200mm (Option for CQDH15A).
  • ​Platform and protection arm are disassembled, easy maintenance.
  • The electronic components concentrated simplifies the circuit and makes easily assemble and access.
  • Battery equipped with protect device, the trucks will automatic cut off power when battery is under charging.

Magnetic Valve Control Warehouse Forklift Trucks Reach Type 1500kg Capacity

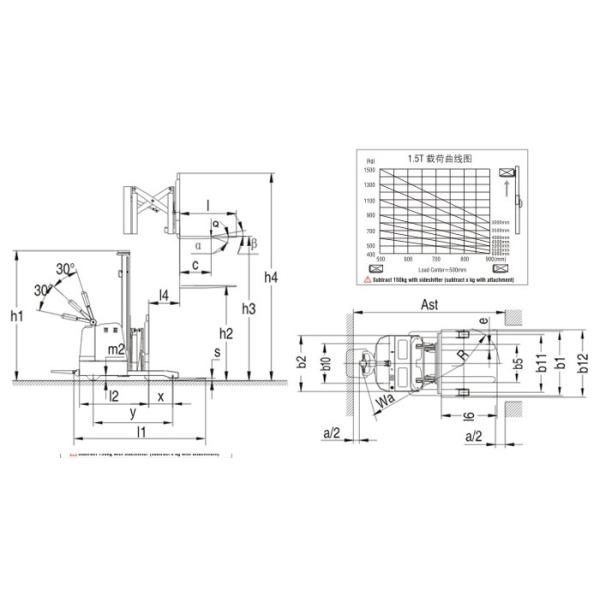

SPECIFICATIONS OF ELECTRIC WAREHOUSE FORKLIFT TRUCKS
Model CQDH15A
Load capacity kg 1500
Load center distance mm 500
Load distance, centre of drive axle to fork mm 287(double mast)/315(triple mast)
Tyre size, front mm 250*82+150*62
Tyre size, rear mm 125*82*4
Fork, tilt forward/backward ° 2/5
Height, mast lowered mm 1619/1869/2119/2369/2619/2179/2341/2499
Free lift (option) mm ~ / ~ / ~ / ~ / ~ /1575/1700/1825
Max. lifting height mm 2000/2500/3000/3500/4000/4500/5000/5500
Height, mast extended mm 2881/3381/3881/4381/4881/5381/5881/6381
Overall length mm 2364/2364/2364/2364/2364/2384/2384/2384
Length to face of forks mm 1289(double mast)/1314(triple mast)
Overall width mm 1200-1300/950
Fork dimensions mm 35/100/1070
Reach distance mm 500
Aisle width for pallets 800*1200 lengthways mm 2806/2806/2806/2806/2806/2830/2830/2830
Turning radius mm 1613/1613/1613/1613/1613/1647/1647/1647
Travel speed, laden/unladen km/h 4.8/5
Lift speed, laden/unladen m/s 0.12/0.16
Lowering speed, laden/unladen m/s 0.2/0.15
Battery V/Ah 24/320(460)
Service weight kg 2250/2250/2300/2350/2350/2500/2550/2600

Magnetic Valve Control Warehouse Forklift Trucks Reach Type 1500kg Capacity
