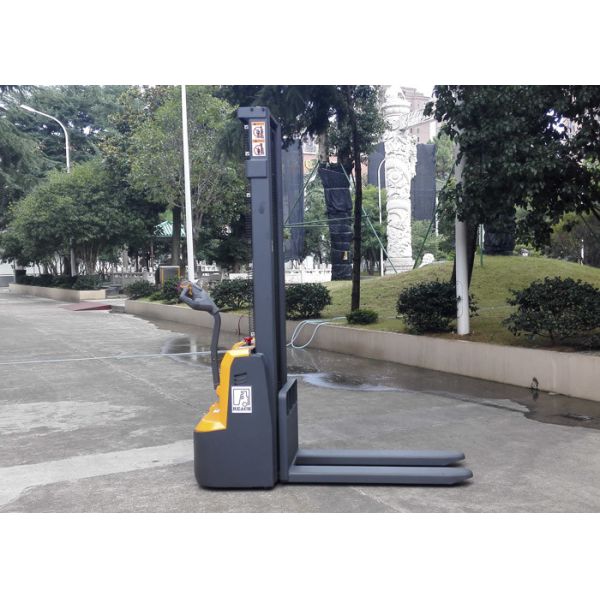

Super Light Warehouse Forklift Trucks For Low Height Stocking Short Distance Transportation
Super Light Warehouse Forklift Trucks For Low Height Stocking Short Distance Transportation
Super Light Warehouse Forklift Trucks For Low Height Stocking Short Distance Transportation
Super Light Warehouse Forklift Trucks For Low Height Stocking Short Distance Transportation
Super Light Warehouse Forklift Trucks For Low Height Stocking Short Distance Transportation
Super Light Warehouse Forklift Trucks For Low Height Stocking Short Distance Transportation
Specifications
Brand Name :
REACH
Model Number :
CDDR12E
Certification :
CE, TUV
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
25 - 30 days
Packaging Details :
Nude
Capacity :
1200kg
Load center :
600mm
Lifting height :
1600/2500/3000mm
Width overall forks :
570/695mm
Fork dimensions :
60/170/1150(1070)mm
Drive speed, laden/unladen :
5/6km/h
Lift speed, laden/unladen :
0.12/0.22m/s
Lower speed, laden/unladen :
0.14/0.14m/s
Description

1200kg super light warehouse forklift trucks fot low height stocking short distance transportation


Quick Details:

Model: Warehouse forklift trucks CDDR12E
​​​Capacity: 1200kg
Lift height: 1600/2500/3000mm
Fork dimensions: 60/170/1150(1070)mm
Turning radius: 1365mm

​Travelling speed, laden/unladen: 5/6km/h

​Lift speed, laden/unladen: 0.12/0.22m/s

​Lower speed, laden/unladen: 0.14/0.14m/s
Battery: 24V105Ah


Advantages:

  • Back cover is integrated type design, easy to assemble and maintain.

  • ​Use GEL battery free to maintain.

  • ​Built-in charger easy to access tp power supply.

  • ​Low gravity design, 4 point design, improve the warehouse forklift trucks stability.

  • ​This drive unit have small turning radius, motor and brake is very easy to replace.

  • Compact design and small dimensions, offer excellent visibility.

  • ​The turning radius and aisle width is very small and which is similar with manual stacker.


SPECIFICATIONS
Model CDDR12E
Load capacity kg 1200
Load center distance mm 600
Height, lowered mm 90
Tyre size, front mm 195*70
Tyre size, rear mm 80*70
Additional wheels (dimensions) mm 150*60
Height, mast lowered mm 2090/1840/2090
Max. lifting height mm 1600/2500/3000
Height, mast extended mm 2090/3060/3560
Height of tiller in drive position min./max. mm 670/1300
Overall length mm 1748(1668)
Length to face of forks mm 598
Overall width mm 800
Fork dimensions mm 60/170/1150(1070)
Width overall forks mm 570/695
Ground clearance, centre of wheelbase mm 26
Aisle width for pallets 1000*1200 crossways mm 2218
Aisle width for pallets 800*1200 lengthways mm 2173
Turning radius mm 1365
Travel speed, laden/unladen km/h 5/6
Lift speed, laden/unladen m/s 0.12/0.22
Lowering speed, laden/unladen m/s 0.14/0.14
Battery V/Ah 24/105
Service weight kg 670
