Intelligent Cold Chain Warehouse Food And Beverage Freezer Storage Warehouse
Intelligent Cold Chain Warehouse Food And Beverage Freezer Storage Warehouse
Intelligent Cold Chain Warehouse Food And Beverage Freezer Storage Warehouse
Intelligent Cold Chain Warehouse Food And Beverage Freezer Storage Warehouse
Intelligent Cold Chain Warehouse Food And Beverage Freezer Storage Warehouse
Intelligent Cold Chain Warehouse Food And Beverage Freezer Storage Warehouse
Intelligent Cold Chain Warehouse Food And Beverage Freezer Storage Warehouse
Intelligent Cold Chain Warehouse Food And Beverage Freezer Storage Warehouse
Specifications
Brand Name :
CLX
Model Number :
CLX-ICR
Place of Origin :
China
Certification :
N/A
MOQ :
1
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Cash
Supply Ability :
50 sets/montly
Delivery Time :
45 days
Packaging Details :
Export plywood case pack, suitable for export standard.
Working Temperature :
Chiller, 0-10℃
Cold Room Dimension (mm) :
As buyer's request
Cold Room Panel Materials :
Stainelss Panel, Embossed Aluminum, Colored Powder-Coated,Composited steel plate
Cold Room Panel Thickness :
Optiona at 60,75,100,120,150,175,200mm
Foaming Materials :
Polyurethane
Ground treatment :
With concrete layer, waterproof layer, leveling layer to match outside ground
Display Cabinet :
Customized bottom suport height at least 285mm
Cold Room Door :
Customized PVC shutter door, for intelligence use
AGV Navigation :
SLAM Laser / Machine Vision
AGV Product Dimension :
990*630*260mm
Rotaring Diameter :
990mm
AGV Support frame :
With customized support frame for display cabinet, avaliable height 25mm
AGV Lifting Height :
70mm
AGV Monitor :
With LCD screen display
AGV Weight :
160kg
Unload operating speed (m/s) :
1.5
Load operating speed (m/s) :
1
Parking accuracy :
±5mm / ±1°
Moving direction :
Forward / Backward, and rotating
Climbing performance :
3° / 5%
Charging Model :
With handle and automatic two models, and change models manually
Full charge battery Time(h) :
8 hours
Charge time(min) :
≦1.5 hour
Obstacle detection :
√
Anti-collision :
√
Sound and light alarm :
√
EMERGENCY :
√
Communication :
Wi-Fi, 5GHz,802 11n
Description

Intelligent Chiller Cold Chain Warehouse 0-10°C With AGV And Refrigeration System For Food And Beverage

Product Description:

Intelligent Cold Chain Warehouse
1. Cold Room Parts
* Cold Room Panels
* Cold Room floor (with waterprrof and leveling treatment)
* Cold Room Door (Customized PVC shutter door, for intelligence use)
* Display cabinets (Customized bottom suport height at least 285mm)

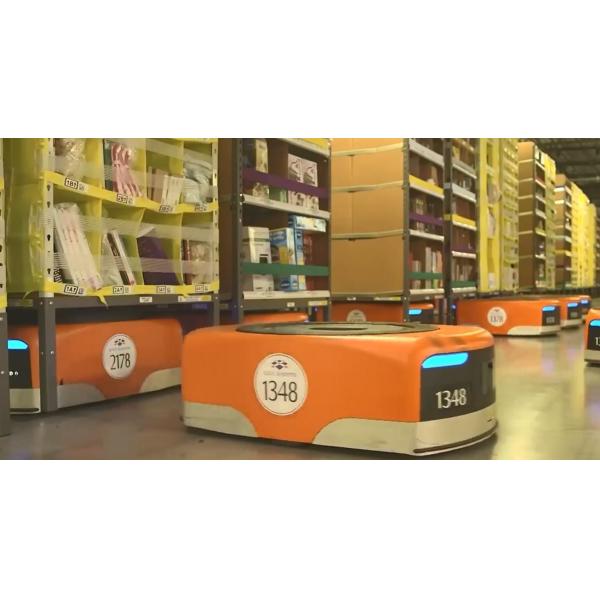

2. AGV / AMR / Forklift AGV
* AGV (latent type as primiay choice)
* AMR (AMR might be in used for special requests , optional choice)
* Forklift AGV (Forklift AGV might be in used for special requests , optional choice)
3. Refrigeration System
* Outdoor Scroll condensing Refrigeration unit (for middle warehouse)
* Semi enclosed Refrigeration unit (for middle sized warehouse)
* Parallet unit Refrigeration unit (for extremely big warhouse or supermarket)
4. Software
* WCS (warehouse control system)
5. On-spot working
* Drawing or sticking labels before machine commissioning
* AGV route design and testing
* WCS design and commissioning
* Aferter Sales service after order commiting;

Intelligent Cold Chain Warehouse Food And Beverage Freezer Storage Warehouse

Intelligent Cold Chain Warehouse Food And Beverage Freezer Storage Warehouse

Technical Parameters:

Model # CLX-CR-CH-XXXX
* Cold Room Details
Working Temperature Chiller, 0-10℃
Dimension (mm) As buyer's request
Cold Room Panel Materials Stainelss Panel, Embossed Aluminum, Colored Powder-Coated,Composited steel plate
Cold Room Panel Thickness Optiona at 60,75,100,120,150,175,200mm
Foaming Materials Polyurethane
Ground treatment With concrete layer, waterproof layer, leveling layer to match outside ground
Dispaly Cabinet Customized bottom suport height at least 285mm
Cold Room Door Customized PVC shutter door, for intelligence use
* AGV
Navigation SLAM Laser / Machine Vision
Product Dimension 990*630*260mm
Rotaring Diameter 990mm
Supprot frame With customized support frame for display cabinet, avaliable height 25mm
Lifting Height 70mm
Monitor With LCD screen display
Machine Wight 160kg
UnLoad operating speed (m/s) 1.5
Load operating speed (m/s) 1
Parking accuracy(mm & °) ±5mm, ±1°
Moving direction Forward / Backward, and rotaring
Climbing performance 3° (5%)
Charing Model With handle and automatic two models, and change models manually
Full charge battery Time(h) 8 hours
Charge time(min) ≦1.5 hour
Working Temperature 0-45℃
Obstacle detection √
Anti-collision √
Sound and light alarm √
EMERGENCY √
Communication encryption √
Communication Wi-Fi, 5GHz,802 11n

Customization:

Intelligent Cold Chain Warehouse Food And Beverage Freezer Storage Warehouse
Intelligent Cold Chain Warehouse Food And Beverage Freezer Storage Warehouse
