Specifications
Place of Origin :
China
Brand Name :
Better
Packaging Details :
standard export package
Supply Ability :
90 Set/Sets per Month
Price :
$8,860.00/sets >=1 sets
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Warranty :
1 Year
After-sales Service Provided :
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
color :
silver
material :
carbon steel
certification :
ISO9001;SGS
voltage :
customize
life :
more than 20 years
Product name :
bar screen
Usage :
water treatment
Type :
sewage treatment equipment
Port :
Qingdao
MOQ :
1
Description

20 Years Life Drum Screen For Sewage Slops Effluent Drainage Waste Water Treatment

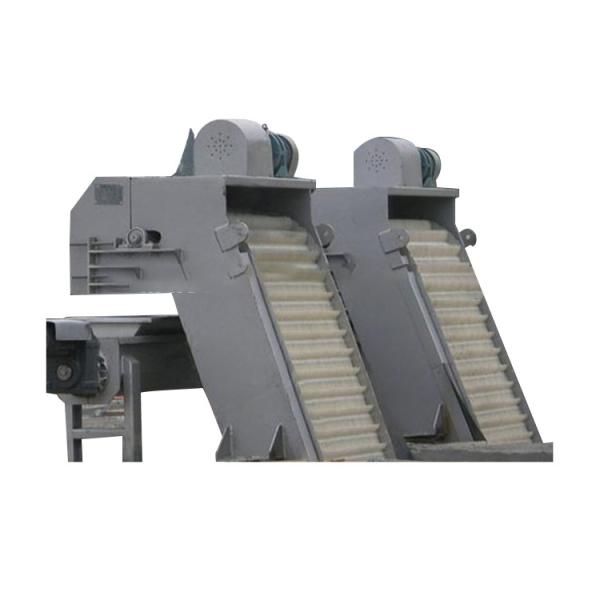

Mechanical Grille Waste Cleaning Machine

Description

Self-cleaning screen waste remover is composed of main frame, driving device, tooth harrow and

transmission chains. Teeth with ABS, nylon 6, nylon 1010 or stainless steel material are ranked on axis to form a seal chain. It pushes waste to flow into tank instead of to the top guided by rail and wheel. And brush will clean the residue on teeth.

It is installed at water inlet of secondary grill and other water intake units where no large particles are in water. It is also can be used for industrial and municipal sewage of industries such as paper mill, textile, leather, wine and sugar making, fishing etc.

Chain rotor multi teeth screen waste remover is developed on the basis of advance technology from similar products both at home and abroad. Several teeth (4-8 pcs) are uniformly placed on chains with

certain space, it moves from back of grill to front so as to push waste to discharging pole along preventing board where waste can be moved by transferring device or presser.

It is suitable for usage at premier and secondary fence of water inlet of water intake units.

Technical Parameter

Model

Grille width

(mm)

Machine width

(mm)

Channel width

(mm)

Grille interstice

(mm)

Grille speed

(m/min)

Discharge

height

Grille

angle

Power

(KW)

GSC300

300

430

500

1-60

2.2

Customize

60-80°

0.75

GSC500

500

630

700

1-60

2.2

Customize

60-80°

0.75

GSC800

800

930

900

1-60

2.2

Customize

60-80°

1.1

GSC1000

1000

1130

1200

1-60

2.2

Customize

60-80°

1.1

GSC1200

1200

1330

1400

1-60

2.2

Customize

60-80°

1.5

GSC1500

1500

1630

1700

1-60

2.2

Customize

60-80°

1.5

GSC1800

1800

2090

2210

1-60

2.2

Customize

60-80°

2.2

GSC2200

2200

2490

2610

1-60

2.2

Customize

60-80°

3.0

20 Years Life Drum Screen For Sewage Slops Effluent Drainage Waste Water Treatment20 Years Life Drum Screen For Sewage Slops Effluent Drainage Waste Water Treatment20 Years Life Drum Screen For Sewage Slops Effluent Drainage Waste Water Treatment20 Years Life Drum Screen For Sewage Slops Effluent Drainage Waste Water Treatment

20 Years Life Drum Screen For Sewage Slops Effluent Drainage Waste Water Treatment

20 Years Life Drum Screen For Sewage Slops Effluent Drainage Waste Water Treatment

20 Years Life Drum Screen For Sewage Slops Effluent Drainage Waste Water Treatment

20 Years Life Drum Screen For Sewage Slops Effluent Drainage Waste Water Treatment

20 Years Life Drum Screen For Sewage Slops Effluent Drainage Waste Water Treatment

20 Years Life Drum Screen For Sewage Slops Effluent Drainage Waste Water Treatment

20 Years Life Drum Screen For Sewage Slops Effluent Drainage Waste Water Treatment
