Description

Corrugated Plates Interceptor Oily Water Separator for Local Service in Bangladesh

1. Description

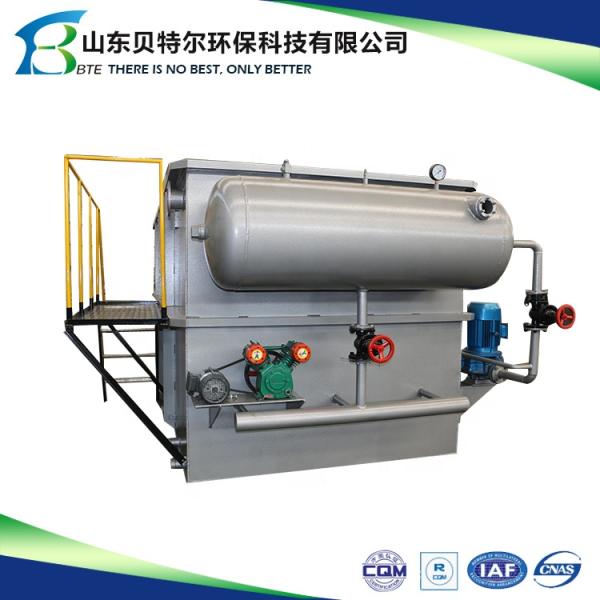

YW series Dissolved Air Floatation is mainly for solid-liquid or liquid-liquid separation.

Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.

2. Application

(1) Remove oil and TSS.

(2) Separate small particles and algae in groundwater.

(3) Recover valuable products in industrial sewage such as paper pulp.

(4) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.

3. Features

(1) Large capacity, high efficiency and small occupying space.

(2) Compact structure, easy operation and maintenance.

(3) Silt expansion elimination.

(5) Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water. Meanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process.

(6) It can achieve the best effect in adopting this method when disposing the water with lower temperature, lower turbidity and more algae.

Suitable area:

slaughtering, starch, pharmaceuticals, papermaking, printing and dyeing,

leather and tannery, petrochemical industry, domestic wastewater, etc.

4. Flow Process Diagram

Corrugated Plates Interceptor Oily Water Separator for Local Service in Bangladesh

1. Clear water reservoir 2. Clear water pump 3. Control valve 4.5. Pressure gage 6. Dissolved gas tank

7. Control valve 8. Air compressor 9. Releaser 10. Foam scraper 11. Air floating pond 12. Water collector

13. Jet device 14. Control valve 15. Dosing tank 16. Sewage pump 17. Flow meter 18. Sewage pond

5. Technical Parameter

Specification

Capacity

(m3/h)

Dissolved

gas water

(m3/h)

Main

dynamo

power (kw)

Foam

scraper

power(kw)

Air

compressor

power(kw)

Dissolved air

tank size

(mm)

Overall dimension

(mm)

YW-5

2-5

1.5-2

3

0.55

1.5

Φ400x1000

3300x1800x2200

YW-10

8-10

2-3

4

0.55

1.5

Φ500x1512

4000x2100x2200

YW-20

15-20

5-7

7.5

055

1.5

Φ500x1512

4600x2400x2200

YW-30

20-30

6-10

7.5

0.55

1.5

Φ500x1512

5200x2600x2400

YW-40

30-40

8-13

7.5

0.75

2.2

Φ600x1880

6000x2600x2400

YW-50

40-50

15-20

7.5

0.75

2.2

Φ600x1880

7000x2600x2400

YW-60

50-60

18-27

11

0.75

2.2

Φ600x1880

7600x2800x2400

YW-70

60-70

22-30

11

0.75

3

Φ650x2034

8400 x2800x2400

YW-80

70-80

24-32

11

0.75

3

Φ650x2034

9200x2800x2400

YW-100

90-105

30-35

15

0.75

4

Φ700x1980

10000x2800x2600

YW-150

125-150

60-80

22

1.1

4

Φ800x1980

13500x2800x2600

YW-200

175-200

80-100

22

1.1

5.5

Φ800x2100

15800x2800x2600

YW-250

225-250

110-120

22

1.1

5.5

Φ800x2400

15200x3400x2600

YW-300

280-300

120-180

37

1.1

5.5

Φ1000x2900

19200x3400x2800
