Coal Rotary Drum Dryer Plant High Output 1500tons / Day
Coal Rotary Drum Dryer Plant High Output 1500tons / Day
Coal Rotary Drum Dryer Plant High Output 1500tons / Day
Coal Rotary Drum Dryer Plant High Output 1500tons / Day
Specifications
Brand Name :
Hengyang
Model Number :
HC-315
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
5200-69120USD/set
Payment Terms :
T/T
Supply Ability :
300Sets/month
Delivery Time :
20-60 days
Packaging Details :
Negotiated
Condition :
New
Warranty :
TWO YEARS
After-sales service provided :
Engineer oversea service
Application :
Drying
Product name :
Business Cooperation for Coal Rotary Dryer Plant
Usage :
coal, lignite, carbon coal, coal slime, coking coal, gas coal, etc
Heating source :
Biomass, natural gas, propane, diesel, coal, etc
Description

The coal dryer belongs to the rotary drum dryer equipment, which can be widely used in the drying of coal industry materials such as slime, raw coal, lignite, flotation clean coal, mixed clean coal and so on.

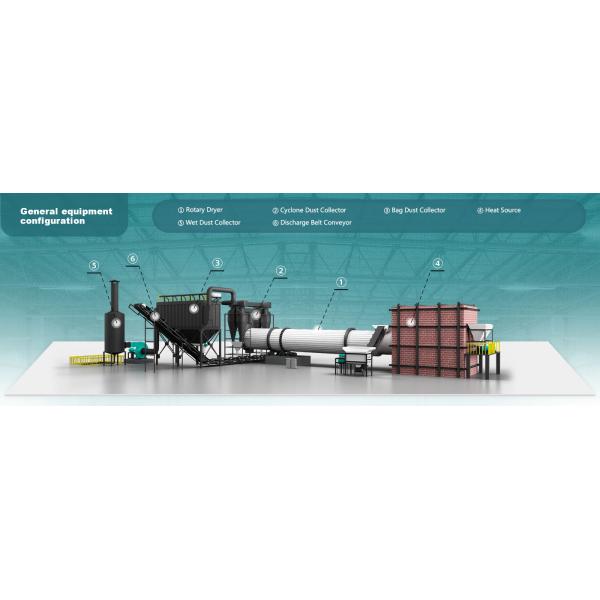

The coal dryer is a new type of special drying equipment composed of a heat source, a dispersing device, a belt feeder, a feeder, a rotary drum, a belt discharger, an induced draft fan, an unloader and a power distribution cabinet. Coal dryer is a new type of drying equipment developed on the basis of drum dryer.

It is characterized by high productivity and easy operation. The cylinder is a horizontal rotary cylinder, and various types of copying boards with different staggered angles are welded inside from front to back. According to the different needs of users, the interior of the cylinder of the slime dryer can be designed and equipped with refractory materials for temperature insulation. The feeding end is provided with a door ring and a spiral copying plate to prevent the material from being poured. It has the advantages of reasonable structure, sophisticated production, high output, low energy consumption and convenient operation. It can process 300 tons, 500 tons, 700 tons, 1000 tons, 1500 tons and 3000 tons of coal per day.

Coal Rotary Drum Dryer Plant High Output 1500tons / Day

Technical Details:

Model Capacity(T/D) Initial moisture(%) Final moisture(%) Total Power(kw) Covering area(m²)
HYMG1916 300 ≤30 12±3 120 8*26
HYMG2218 500 ≤30 12±3 160 10*35
HYMG2520 700 ≤30 12±3 200 10*40
HYMG2820 1000 ≤30 12±3 290 12*40
HYMG3430 1500 ≤30 12±3 420 15*46
HYMG4032 3000 ≤30 12±3 500 15*50
Note: the capacity of equipment is directly related to the reduction of water content of coal. The proportion of precipitation is large, and the production capacity of equipment decreases correspondingly. Specific consulting Hengyang Industrial.
