Dry Type Gypsum Cement Ceramic Ball Mill Grinding 27rpm 5t Load
Dry Type Gypsum Cement Ceramic Ball Mill Grinding 27rpm 5t Load
Dry Type Gypsum Cement Ceramic Ball Mill Grinding 27rpm 5t Load
Dry Type Gypsum Cement Ceramic Ball Mill Grinding 27rpm 5t Load
Dry Type Gypsum Cement Ceramic Ball Mill Grinding 27rpm 5t Load
Dry Type Gypsum Cement Ceramic Ball Mill Grinding 27rpm 5t Load
Dry Type Gypsum Cement Ceramic Ball Mill Grinding 27rpm 5t Load
Dry Type Gypsum Cement Ceramic Ball Mill Grinding 27rpm 5t Load
Specifications
Brand Name :
Hengyang
Model Number :
HY-165
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, T/T
Supply Ability :
500 Sets/month
Delivery Time :
20-25 days
Packaging Details :
negociated
Name :
Dry Type Ceramic Ball Mill for Grinding Ceramic Gypsum Cement
Application :
ceramic material
Condition :
new
Motor Type :
AC motor
After sales service :
provided
Color :
customized
Description

Dry Type Ceramic Ball Mill for Grinding Ceramic Gypsum Cement

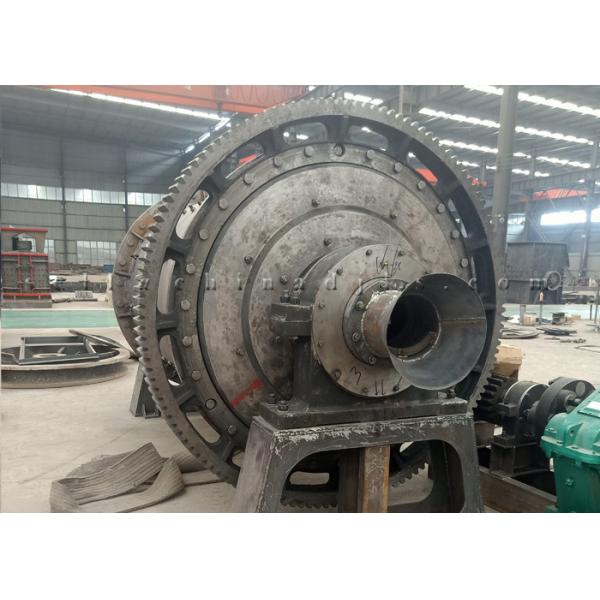

The ceramic ball mill mainly composed of barrel, main bearing, and support structure. End axles welded on the two ends of the cylinder. Based on the connection of axle seat and the support structure, main bearings support the cylinder on the end axles. One gate equipped at the cylinder, which can also work as the manhole.
Working principle
This ceramic ball mill is intermittent and belt transmission ball mill. Material and the mill balls rotary under the centrifugal force. When the material moves to certain height, drop balls can beat the material into fine powder. In addition, friction among the balls can also help to grind the materials. When the size get to the requirement, stop the machine to discharge fine powder.

Technical Details

Model Diameter of the cylinder (mm) Length of the cylinder
(mm)		 Rotary speed (r/min) Grinding Media Load
t		 Motor power (kw) Overall dimensions (mm)
1500*30001500 3000 27rpm 5 55 3110x4100x3100


Dry Type Gypsum Cement Ceramic Ball Mill Grinding 27rpm 5t Load
