Internal Entry Drum Screen
Internal Entry Drum Screen
Internal Entry Drum Screen
Internal Entry Drum Screen

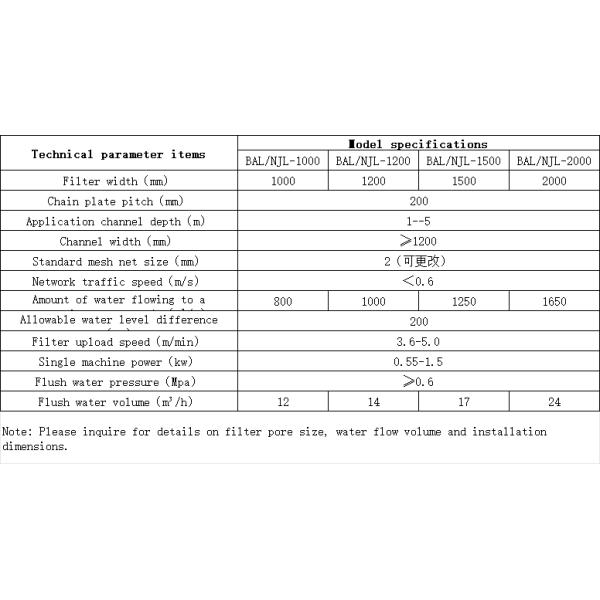

Specifications
Brand Name :
Hengyang
Model Number :
HC-456
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
5600-356100
Payment Terms :
T/T
Supply Ability :
270 sets/month
Delivery Time :
20-40 days
Packaging Details :
negociated
Name :
Internal Entry Drum Screen
Capacity :
5-40t/h
Condition :
New
OEM :
Accept
Color :
customize
Description
Procuct Introcuction
The internal Entry Drum Screen is an efficient fine-arid decontamination equipment that integrates contamination interception anddecontamination. t is suitable for large, medium and small pumping stations as a fine mesh to intercept and remove floating obiects in the watersuch as weeds, paper, cigarette buts, melon seeds, fibers, hair, etc. This model has a high dir-holding capacity and can maintain the effectiveimplementation of subsequent treatment processes
Internal Entry Drum Screen

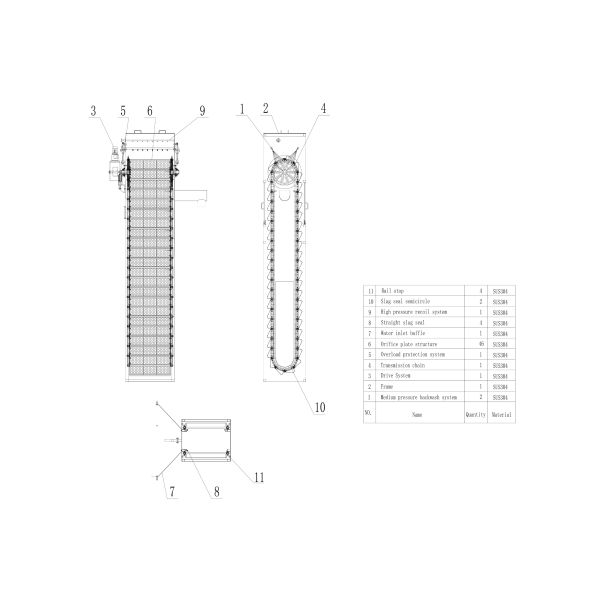

Structural principles
The Internal Entry Drum Screen is composed of six parts: frame, drive system, screen system, backwash system, slag removal system andelectronic control svstem. The reduction motor drives the sorocket to rtate. and the sprocket drives the screen plate to rotate continyously.sewage enters the grlle from the water inlet and is filtered by the screen plate, After filtering. the water flows to the outside of the screen plateand the dirt is trapped on the inner surface of the same plate, and as the screen plate The continuous rotation brings it to the top; the backwashsystem fushes the outside of the washing plate. Under the action of flushing water, the dirt is fushed to the slag colecion tank and flows out othe sewage outlet along with the flushing water.
Internal Entry Drum Screen
