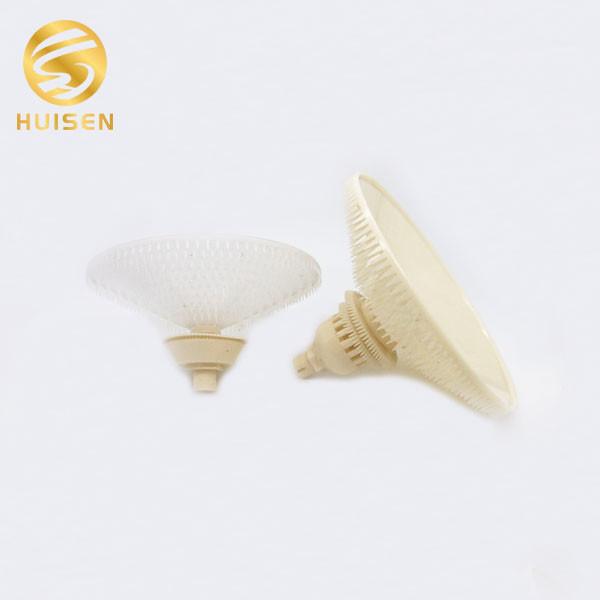

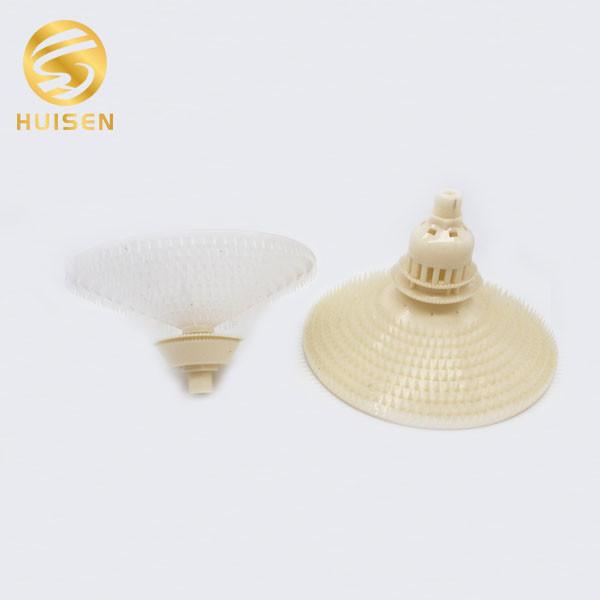

ABS + PP Cutting Bubble Spiral Mixing Aerator Coarse Bubble
ABS + PP Cutting Bubble Spiral Mixing Aerator Coarse Bubble
ABS + PP Cutting Bubble Spiral Mixing Aerator Coarse Bubble
ABS + PP Cutting Bubble Spiral Mixing Aerator Coarse Bubble
ABS + PP Cutting Bubble Spiral Mixing Aerator Coarse Bubble
ABS + PP Cutting Bubble Spiral Mixing Aerator Coarse Bubble
Specifications
Brand Name :
HUISEN
Model Number :
HS-BD
Place of Origin :
China
MOQ :
100PCS
Price :
$3.7-4.5/pc
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs/DAY
Delivery Time :
7-15 days
Packaging Details :
carton
Item :
ABS/ ABS+ PP Cutting Bubble Spiral Mixing Aerator Coarse Bubble Diffuser
Material :
ABS
Usage :
For Aeration System
Color :
White
Service Life :
>2 years
Bubble size :
3-4mm
Description

ABS/ ABS+ PP Cutting Bubble Spiral Mixing Aerator Coarse Bubble Diffuser

Technology Parameter

Model Type Connector Design flow STOE Service area(m³)
dn280 Spiral Mixing Aerator 3/4 NPT male thread 3-4m³/h ≥38%(6m submerged) 0.4-0.8
Size Material Bubble size Flow range Water-Head loss Service life
8 inch pp+abs 3-4mm 1-8m³/h 2000-4300pa >5 years

Product Description

ABS coarse bubble diffuser adopts the form of multi-layer spiral cutting for oxygen aeration. When the air flow enters the aerator, the air flow first enters the multi-layer zigzag air distribution head of the lower layer after cutting through the two-way spiral cutting system, and then carries out multi-layer cutting, so that the air bubble is cut into microbubbles, which greatly improves the utilization rate of oxygen, and has the characteristics of uniform air distribution and high oxygen charging efficiency. It is suitable for biochemical treatment of industrial wastewater, municipal sewage and activated sludge, aeration device of biological contact oxidation process sewage treatment and pre aeration of regulating tank, and widely used in push flow and mixed aeration tanks of biochemical treatment.

Project Project

ABS + PP Cutting Bubble Spiral Mixing Aerator Coarse Bubble

Product Advantage

1. No blockage, small gas resistance loss;

2. Compared with microporous aerator, there's no concern for the gradual deterioration of efficiency.

3. The coarse bubbles can be kept in uniform operation for a long time.

4. The material is not easy to be aged, the safeguard measures are comprehensive, and don't need to be cleaned, replaced and maintained.

ABS + PP Cutting Bubble Spiral Mixing Aerator Coarse Bubble

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory located in Yixing Wuxi ,we have specialized in various fillers ,air diffuser and other environment protection equipment,also our company is focusing on researching developing a variety of novel sewage wastewater treatment filler and aeration system .
Q: How long is your delivery time?
A: Generally it will only take about 5-10 days if the goods you need are in stock as we just only need some time to pack the goods as the customer's request. otherwise it will cost about 15-20 days to arrange the factory to produce and packing .but also some customer request customization the special size then it will take more time and the specific date will depend on the technology.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=20000USD, 100% in advance. Payment>=20000USD, 30% T/T in advance ,balance before shipment.
