DN215mm EPDM Disc Aerator Diffuser for Water Treatment Aeration

Disc Aerator Diffuser is an aeration device developed in the 1980s. The device has small aeration bubbles, large gas-liquid area, uniform diffusion of bubbles, and no blockage of holes. The variable microporous aerator is designed as a slightly convex arched surface and uses reinforced PP plastic as the main body. The diaphragm has an EPDM rubber with an anti-adhesion surface. It is made through processing. The diaphragm opening is selected from German numerical control openings to ensure the quality and accuracy of the hole. When the aerator is oxygenated and aerated, four air supply slots are designed on the surface of the main body, so that the incoming air is buffered by the check valve and sent directly to the center of the aeration head to ensure that the diaphragm can be easily opened with low resistance at one time. The diaphragm is mechanically assembled with rib anti-lock, and the diaphragm does not fall off. The micro-holes on the air distribution membrane swell and expand by itself during air intake to ensure the passage of air. When the aeration is stopped, the variable micropores on the air distribution membrane are closed. Since the variable micropores on the air distribution membrane expand and contract by themselves, the phenomenon of blocking the micropores of the aerator is avoided. Secondly, a check valve device is arranged on the chassis of the aerator to prevent the mixed liquid from entering the gas distribution branch pipe when the pipeline system stops supplying air, so as to prevent the branch pipe from entering the mixed liquid and being blocked. The incoming air does not need special filtering, and intermittent aeration is not blocked, and it is common for variable microporous aerators to have air distribution membranes that are easy to blow and tear and cannot open the diaphragm or the diaphragm is blocked. Large technical improvements, these several technological reforms make it avoid the pain of maintenance in long-term operation, and it is a new generation of excellent products.

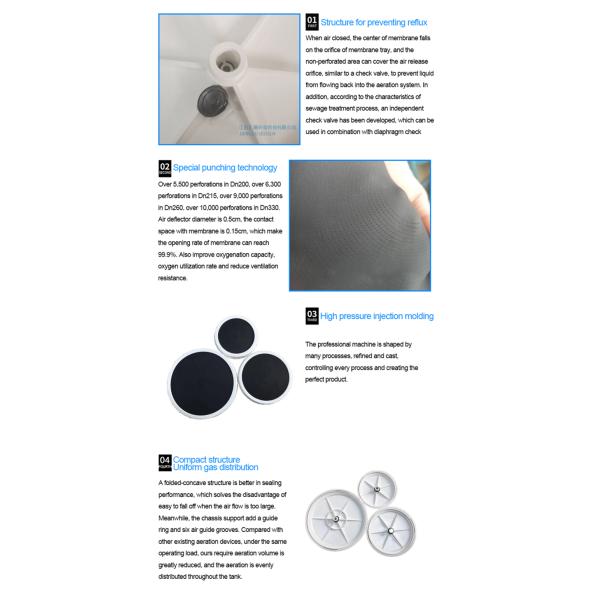

Product Features

1. Structure for preventing reflux

2. Special punching technology

3. Compact structure and uniform gas distribution

4. High pressure injection molding machine injection molding

5. Stronger tear resistance and Longer service life

Model	HSPD215	HSPD260	HSPD350
Bubble Type	Plate Type
Pic.
Size	8 inch(215mm)	9 inch(260mm)	13 inch(350mm)
MOC	EPDM membrane
	Strengthern PP carrier plate
Connector	3/4"NPT male thread
Bubble Size	1-2mm
Flow Range(m³/h)	1-6	1-8	1-12
Design Flow(m³/h)	1.5-2.5	3-4	5-6
STOE	≥38%(6m submerged)
STOR(kg O2/h)	≥0.31	≥0.45	≥0.75
SAE	≥8.9kg O2/kw.h
Headloss	1500-4300pa
Service Aera(m2)	0.2-0.64	0.25-1.0	0.4-1.5
Service Life	>5 years
