Plate Type Fine Bubble Membrane Diffusers
Plate Type Fine Bubble Membrane Diffusers
Plate Type Fine Bubble Membrane Diffusers
Plate Type Fine Bubble Membrane Diffusers
Plate Type Fine Bubble Membrane Diffusers
Plate Type Fine Bubble Membrane Diffusers
Specifications
Brand Name :
HUISEN
Model Number :
HS-DD
Place of Origin :
China
MOQ :
100 pcs
Price :
$2.8-3.5/pc
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
7-15days
Packaging Details :
Carton
Color :
Silicone is blue, EPDM is black
Application :
For Sewage Aeration System
Material :
EPDM/SILICONE + strengthen PP
Bubble Size :
1-2mm
Size :
215mm
Product Name :
8 Inch Plate Type Fine Bubble Air Diffuser With Reinforced PP Support Part
Description

8 Inch Plate Type Fine Bubble Air Diffuser With Reinforced PP Support Part

Product Description

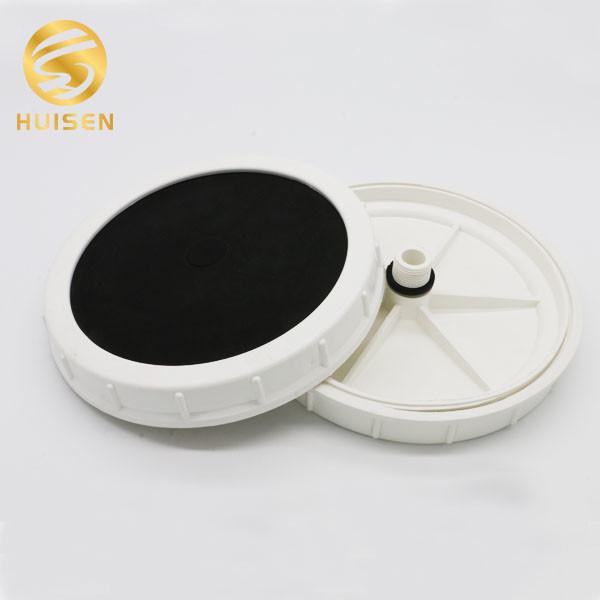

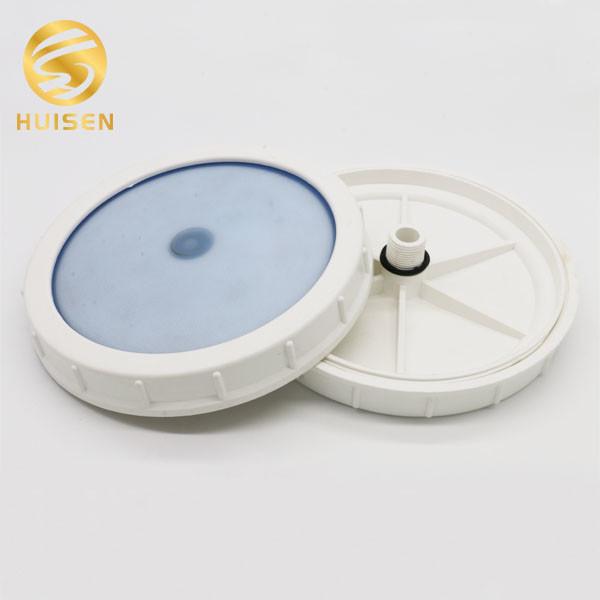

Fine Bubble Air Diffuser is made of strengthen PP as the main body, assisted by silica gel diaphragm processing. The diaphragm opening adopts numerical control to ensure the uniformity of opening. The device has the advantages of small bubble diameter, small gas-liquid interface diameter, large gas-liquid interface area, uniform bubble diffusion, not easy to produce hole blockage and strong corrosion resistance.

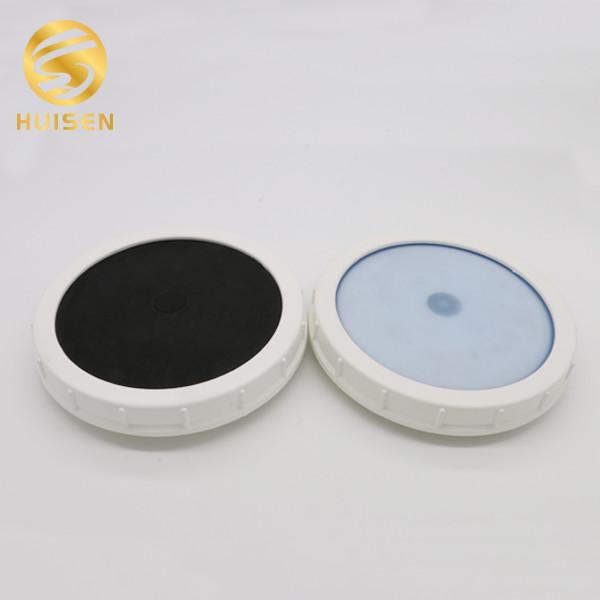

EPDM membrane is suitable for municipal sewage, industrial wastewater from animal slaughtering, food processing and beverage production; silicone membrane is suitable for industrial wastewater from pulp and paper industry, petrochemical industry, refining and processing, etc.

Product Features

1. The aeration plate is equipped with deformation resistant strengthening structure, expanded gripping structure and anti falling sealing bar to ensure the structural stability of the product under high strength and long-term operation conditions and prevent the diaphragm from falling off.

2. The product is equipped with a check structure to effectively prevent the backflow of sewage. Multiple check structures can be added according to process requirements.

3. The vulnerable parts of the support plate are strengthened and durable; the air flow mode is optimized to reduce the resistance loss of the extension, and the product is efficient and energy-saving.

Technology Parameter
Model HSPD215
Type Plate Type
Size 8 inch(215mm)
MOC EPDM membrane
Strengthern PP carrier plate
Connector 3/4"NPT male thread
Bubble Size 1-2mm
Flow Range(m³/h) 1-6
Design Flow(m³/h) 1.5-2.5
STOR(kg O2/h) ≥0.31
STOE ≥38%(6m submerged)
SAE ≥8.9kg O2/kw.h
Headloss 1500-4300pa
Service Aera(m2) 0.2-0.64
Service Life >5 years

Transport Shipment

Plate Type Fine Bubble Membrane Diffusers

packing

Plate Type Fine Bubble Membrane Diffusers
