Dn200mm Elastic Filler Fast Forming Biofilm Water Treatment Filler
Product Description

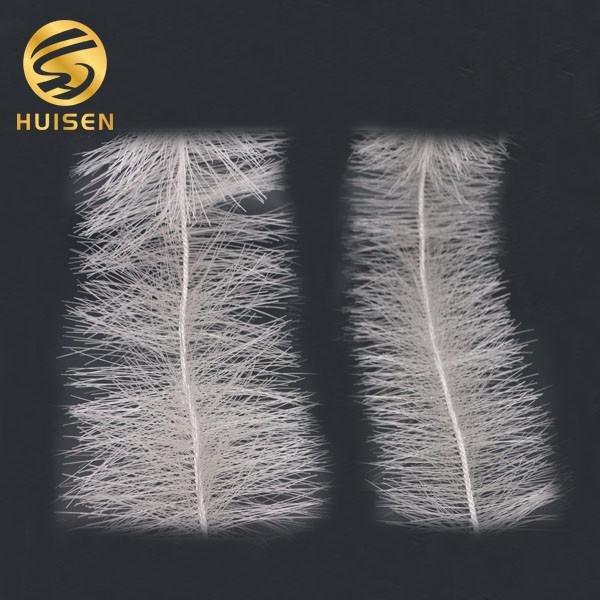

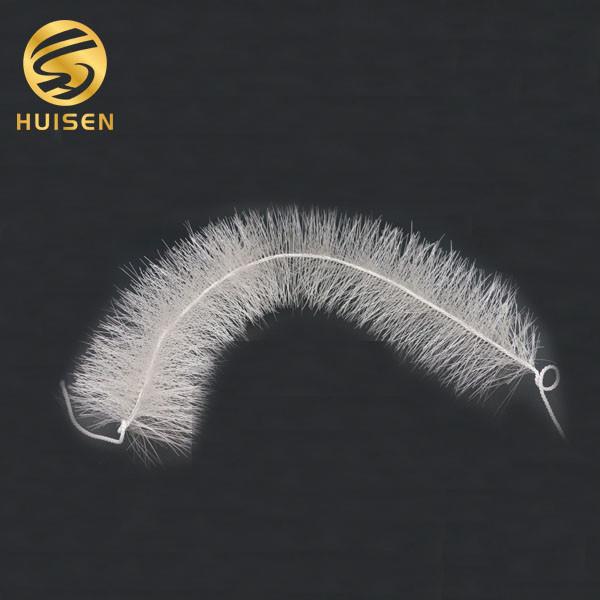

HUISEN Elastic Filler is made with special manufacturing processs, which inserts and fixes the PP wires on the corrosion-resistant and high-strength central rope, making the PP wires in a three-dimensional and uniform radiation state. It also uses high quality material, which is resistant to corrosion & high temperature and aging, the additives, such as hydrophilic, adsorption, heat-resistant and oxygen resistant are also mixed. Because of the excellent material selection and technological formula, the elastic fillers' rigidity and softness are moderate.
The elastic filler has many unique advantages. Compared with rigid honeycomb fillers, the filler has greater pore variability and does not clog; compared with soft fillers, it has a longer material life and does not stick to connecting groups; compared with semi-flexible fillers, it has a larger surface area, faster film hanging, and low cost. Therefore, this filler can be confirmed as the generation of high-efficiency and energy-saving novel filler after various hard-type fillers, soft-type fillers and semi-flexible fillers.
Product Parameter
Model | Diameter (mm) | Length per m3 (m/m3) | Weight per m3 (kg/m3) | Surface area (m/m3) | PP wire diameter
|
HS-EF-150 | 150 | 44 | 2 | 310 | 0.45 |
HS-EF-180 | 180 | 38 | 1.8 | 265 | 0.45 |
HS-EF-200 | 200 | 25 | 1.7 | 250 | 0.45 |
Product Advantage
High heat dissipation performance and low resistance;
Large specific surface area, greatly improve oxygen transfer and utilization;
High load impact resistance, high removal rate of CODCr, good treatment effect;
Good oxygen filling performance, multi-level collision of bubbles, intensive cutting;
Easy installation, just tie the each single elastic filler in the frame.
Product Application
Elastic filler is widely used as biological filler in biological contact oxidation tank and hydrolysis acidification tank, it is suitable for both aerobic tank and anaerobic tank.
Product Package
