105mm Coarse Bubble Diffuser 16pcs Air Discharge Port EPDM Membrane Vibration
105mm Coarse Bubble Diffuser 16pcs Air Discharge Port EPDM Membrane Vibration
105mm Coarse Bubble Diffuser 16pcs Air Discharge Port EPDM Membrane Vibration
105mm Coarse Bubble Diffuser 16pcs Air Discharge Port EPDM Membrane Vibration
105mm Coarse Bubble Diffuser 16pcs Air Discharge Port EPDM Membrane Vibration
105mm Coarse Bubble Diffuser 16pcs Air Discharge Port EPDM Membrane Vibration
Specifications
Brand Name :
HUISEN
Model Number :
HS-CB
Place of Origin :
JIANGSU, CHINA
MOQ :
500pcs
Price :
$1.50-2.0/pc
Payment Terms :
T/T, Western Union
Supply Ability :
800pcs per day
Delivery Time :
According to the quantity
Packaging Details :
Carton
Material :
ABS + EPDM membrane
Size :
105mm
Bubble size :
2.5-3.5mm
Connector size :
3/4" NTP male thread
Service area :
0.2-0.5m2
Item Name :
105mm 16pcs Air Discharge Port EPDM Membrane Vibration Coarse Bubble Diffuser
Description

105mm 16pcs Air Discharge Port EPDM Membrane Vibration Coarse Bubble Diffuser

Product Description

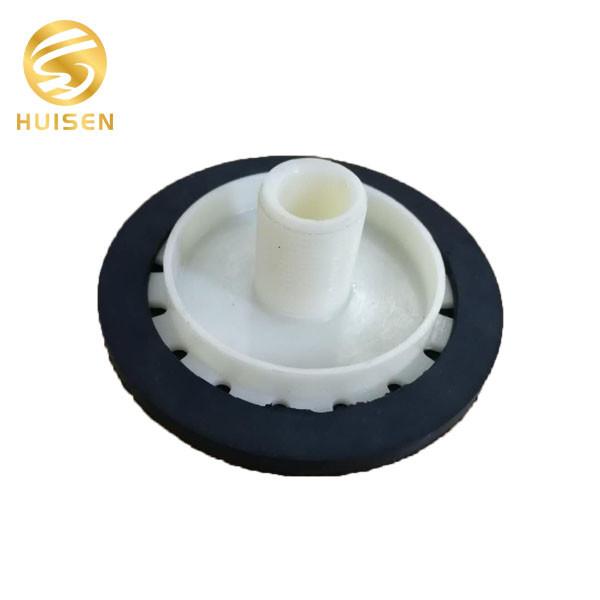

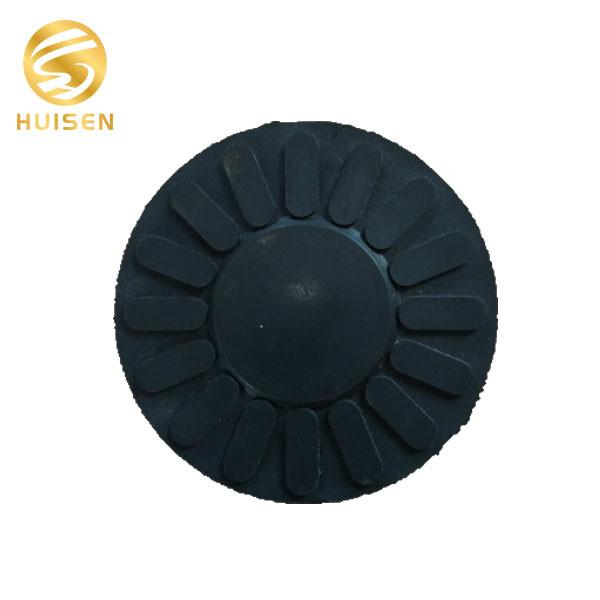

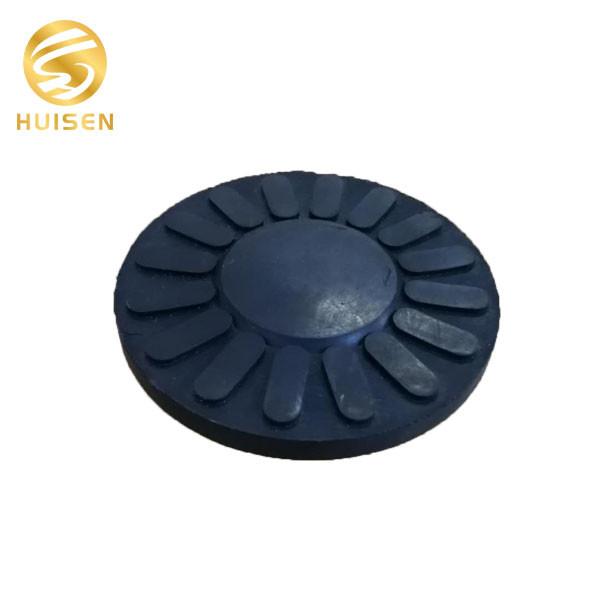

The vibration aerator is a flexible membrane type. Each aerator consists of a high-pressure injection-molded corrosion-resistant, high-strength nylon engineering plastic chassis and a special synthetic rubber membrane with a long service life. The lower part of the vibration aerator has air discharge ports that can prevent scaling. It can automatically clean between the membrane and the chassis. The baffle on the chassis can ensure that the air is evenly distributed around the membrane. The membrane is designed to have a check valve, which functions to ensure that when the air flow is stopped, the debris and liquid entering the air pipe are reduced to a minimum. The bumps on the chassis cooperate with the special-shaped notches on the membrane to reduce the high pressure air loss of the membrane. All the intersections of the chassis have appropriate radii to eliminate fatigue fracture and external stress fracture under all usage loads.

Product Advantage

1. Simple structure and easy to install and maintain.

2. High oxygen utilization, stable performance.

3. The air holes are not easy to be blocked, and the sewage is not easy to pour backward.

4. Can service for long time.

Technology Parameter

Size 105mm
Bubble size 2.5-3.5mm
Flow range 1-4m3/h
Theoretical dynamic efficiency 2.5-3.8KgO2/Kw.h
Oxygenation capacity

0.12-0.35KgO2/h
Oxygen utilization

13.5%-17.1%
Service area 0.2-0.5m2
Loss of air resistance ≤3500Pa
Service life ≥ 2years

Package Method

105mm Coarse Bubble Diffuser 16pcs Air Discharge Port EPDM Membrane Vibration

Product tags

membrane disc diffuser

,

disc type air diffuser

,

fine bubble disc diffuser
