80*1000mm Fine Bubble Tube Diffuser Silicone Nano Bubble Aeration Water Treatment
80*1000mm Fine Bubble Tube Diffuser Silicone Nano Bubble Aeration Water Treatment
80*1000mm Fine Bubble Tube Diffuser Silicone Nano Bubble Aeration Water Treatment
80*1000mm Fine Bubble Tube Diffuser Silicone Nano Bubble Aeration Water Treatment
80*1000mm Fine Bubble Tube Diffuser Silicone Nano Bubble Aeration Water Treatment
80*1000mm Fine Bubble Tube Diffuser Silicone Nano Bubble Aeration Water Treatment
Specifications
Brand Name :
HUISEN
Model Number :
HS-TA
Place of Origin :
China
MOQ :
500pcs
Price :
$22-25/pc
Payment Terms :
T/T, Western Union
Supply Ability :
1000 pcs per week
Delivery Time :
According to the quantity
Packaging Details :
Carton
Membrane Material :
silicone
Clamp Material :
SS304
Sepcification :
80*1000mm
Service life :
>2 years
Application :
For water treatment
Product name :
80*1000mm Fine Bubble Tube Diffuser Silicone Nano Bubble Aeration
Description

80*1000mm Fine Bubble Tube Diffuser Silicone Nano Bubble Aeration

Product Description

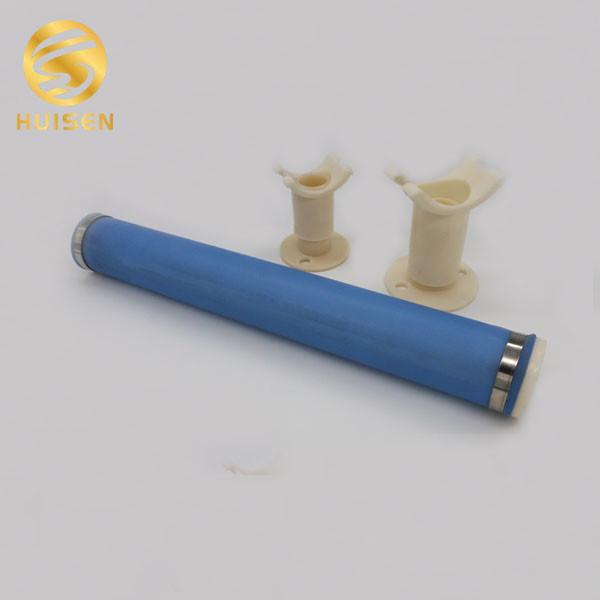

Huisen 80mm fine bubble tube diffuser is made by three parts, ABS support part, which sometimes can be PVC, EPDM membrane and SS304 clamp.

There are tiny self closing holes on the membrane. During operation, the micropores of the aeration pipe will open automatically under the air pressure, and the air will enter the tank for oxygen charging; if the pressure disappears, the micropores of the aeration pipe will close automatically to prevent water from flowing back into the micropores.

80*1000mm Fine Bubble Tube Diffuser Silicone Nano Bubble Aeration Water Treatment

Product Feature

The tube aerator has the characteristics of simple structure, high oxygen utilization rate, reliable performance, non-clogging of stomata, non-reverse irrigation of sewage, uniform circumferential stress, long service life, convenient installation and maintenance, and low system price.

The small bubble diameter of the product can not only maintain a high oxygen conversion rate, but also achieve the function of mixing and stirring.

Product Application

Municipal waste water treatment;

Industrial waste water treatment;

Clean water treatment;

Sludge stabilization;

Wastewater ozone diffusion;

Aeration of fish ponds;

Aeration of streams and lakes;

Technology Parameter

Item φ65*500mm φ65*750mm φ65*1000mm
Spec. φ*L mm 65*500mm 65*750mm 65*1000mm
Oxygen transfer efficiency 5m Water Depth 23-32%
6m Water Depth 34-39.5%
7m Water Depth 31-45%
Ventilatory volume (m3/h) 1.7-6.8 3.4-13.6 3.4-17
Service area 0.82-1.26m2 0.98-2.11m2 0.98-2.35m2
Number of holes 8080 10300 13880
Bubble diameter 0.8-2.0mm
Pressure loss 25-42cm 25-41.5cm 25-40cm
Oxygenation capacity

Micropore: 7.5kgO2/kw.h(under 5m of water);

Pore:3.5-4.8kgO2/kw.h(under 5m of water)
Tension strength >13.8*103kpa
Extension ability >600%
