SS304 ABS Epdm Diffuser Membrane Water Aerator 500 750 1000mm Available
SS304 ABS Epdm Diffuser Membrane Water Aerator 500 750 1000mm Available
SS304 ABS Epdm Diffuser Membrane Water Aerator 500 750 1000mm Available
SS304 ABS Epdm Diffuser Membrane Water Aerator 500 750 1000mm Available
SS304 ABS Epdm Diffuser Membrane Water Aerator 500 750 1000mm Available
SS304 ABS Epdm Diffuser Membrane Water Aerator 500 750 1000mm Available
Specifications
Brand Name :
HUISEN
Model Number :
HS-TA
Place of Origin :
China
MOQ :
100pcs
Price :
$8-19/pc
Payment Terms :
T/T, Western Union
Supply Ability :
1000 pcs per week
Delivery Time :
According to the quantity
Packaging Details :
Carton
Material :
ABS + EPDM + SS304
Bubble size :
0.8-2mm
Diameter :
80mm
Length :
500,750,1000mm
Air Flow Rate :
1.7-17m3/h
Item name :
EPDM And ABS Material Fine Bubble Tube Diffuser Water Aerator
Description

EPDM And ABS Material Fine Bubble Tube Diffuser Water Aerator

Product Description

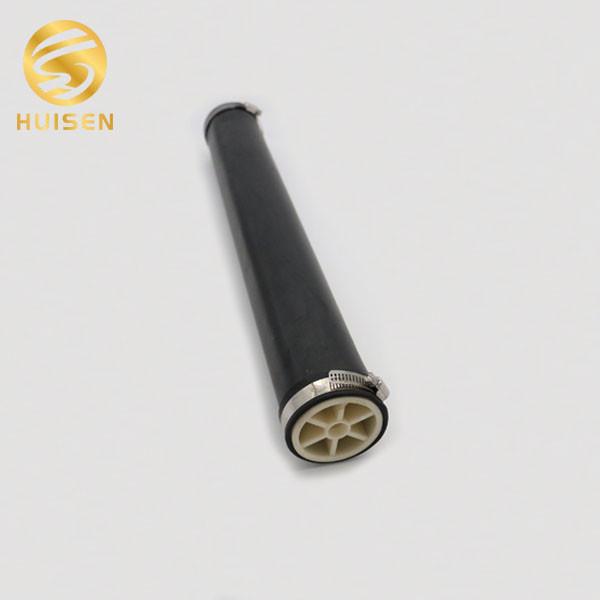

Diameter 80mm silicone membrane fine bubble tube diffuser can be connected on one side or in pairs to different rectangular and round tubes (ABS material) with the appropriate adapter. The membranes are manufactured with premium quality silicone material and are available with fine or coarse-bubble perforation. The support tubes (ABS or PVC material) can be reused when membranes are replaced.

Product Parameter

Item φ65*500mm φ65*750mm φ65*1000mm
Spec. φ*L mm 65*500mm 65*750mm 65*1000mm
Oxygen transfer efficiency Water Depth 5m 23-32%
Water Depth 6m 34-39.5%
Water Depth 7m 31-45%
Ventilatory volume (m3/h) 1.7-6.8 3.4-13.6 3.4-17
Service area 0.82-1.26m2 0.98-2.11m2 0.98-2.35m2
Number of holes 8080 10300 13880
Bubble diameter 0.8-2.0mm
Pressure loss 25-42cm 25-41.5cm 25-40cm
Oxygenation capacity

Micropore: 7.5kgO2/kw.h(under 5m of water);

Pore:3.5-4.8kgO2/kw.h(under 5m of water)
Extension ability >600%
Tension strength >13.8*103kpa

Product Feature

High oxygen transfer efficiency;

High resistance to clogging;

High resistance to corrosion;

Wide air flow range;

Low pressure loss.;

Low energy cost;
Easy installation;

Uniform fine bubble;
Back flow prevention;

Self cleaning operation;
Intermittent operation capability;

Slide-off prevention designed.

Product Application

It is applied to domestic sewage and industrial treatment.

It is used in different stages of aerobic tank, anoxic tank, sedimentation tank and other sewage treatment processes. It is not limited by the shape of the tank, and can be used in various types of tanks.
