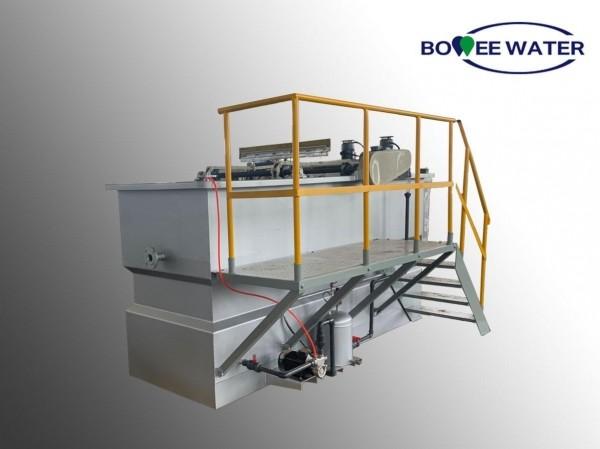

Industrial Wastewater DAF Unit Free Surface Area 0-100 M3/H Large Capacity
Industrial Wastewater DAF Unit Free Surface Area 0-100 M3/H Large Capacity
Industrial Wastewater DAF Unit Free Surface Area 0-100 M3/H Large Capacity
Industrial Wastewater DAF Unit Free Surface Area 0-100 M3/H Large Capacity
Industrial Wastewater DAF Unit Free Surface Area 0-100 M3/H Large Capacity
Industrial Wastewater DAF Unit Free Surface Area 0-100 M3/H Large Capacity
Specifications
Application :
Wastewater Treatment,Hotels, Farms, Food Shop, Food & Beverage Shops,Chemicals factory
Power :
vary from different models
Color :
Customized
Product name :
DAF(Dissolved air flotation) unit,DAF system
Place of Origin :
China
Brand Name :
BOWEE WATER
Certification :
ISO9001 CE SGS
Price :
Negotiable
MOQ :
1 set
Packaging Details :
Wooden case
Delivery Time :
15-30days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100 sets per month
Description

Industrial Wastewater DAF Unit Free Surface Area 0-100 M3/H Large Capacity

DAF unit are used to effectively remove TSS, FOG, BOD, COD and other pollutants from wastewater.DAF unit have been designed specifically for treating industrial wastewater which is heavily loaded with fats, oil, grease and suspended solids that require a significant amount of free surface area for flotation and eventual separation.

Specifications:

  • Capacity:0-100m3/h
  • Material: Carbon steel,SS304,SS316 or customized
  • Principle: Gas-liquid mixing pump or compressor

Description

DAF unit are used to effectively remove TSS, FOG, BOD, COD and other pollutants from wastewater. DAF unit have been designed specifically for treating industrial wastewater which is heavily loaded with fats, oil, grease and suspended solids that require a significant amount of free surface area for flotation and eventual separation. Having an open tank design with no lamella plates within our DAF system means that there is nothing for fats or various sticky contaminates to foul and eventually block. This means that our systems are particularly well suited for effectively treating effluent from the food and drink industry. DAF systems are built from carbon steel with epoxy painting or FRP lining, stainless steel is also optional.

Applications

  • DAF is a proven, and effective physical-chemical technology commonly used for many industrial and municipal applications,including :
  • Product recovery and reuse
  • Pretreatment to meet sewer discharge limits
  • Pretreatment to reduce loading on downstream biological systems
  • Polishing of biological treatment effluent
  • Removing silt and grease from industrial water
  • DAF is used extensively in the following industries:
  • Meat, poultry, and fish processing
  • Dairy industry
  • Petrochemicals
  • Pulp and paper
  • Food and beverage

Technical parameters

Model

Capacity

(m3/h)

Piping Connections(mm)

Weight (Kg)

Operating Weight(kg)

Power(kw)

Weight

(kg)

Inlet

Effluent

Sludge

Vent

Reflux pump

Air compressor

Skimmer

DAF-002

2

DN50

DN50

DN100

DN100

1300

4000

0.75

0.55

0.2

1200

DAF-003

3

DN50

DN50

DN100

DN100

1500

5000

0.75

0.55

0.2
Product tags

daf wastewater design

,

wastewater treatment daf unit

,

daf wastewater treatment system
