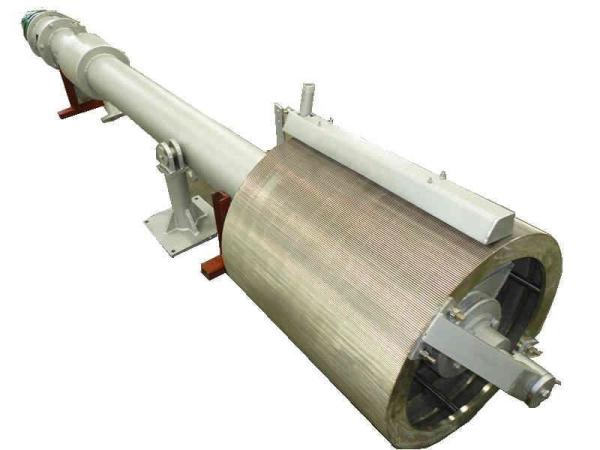

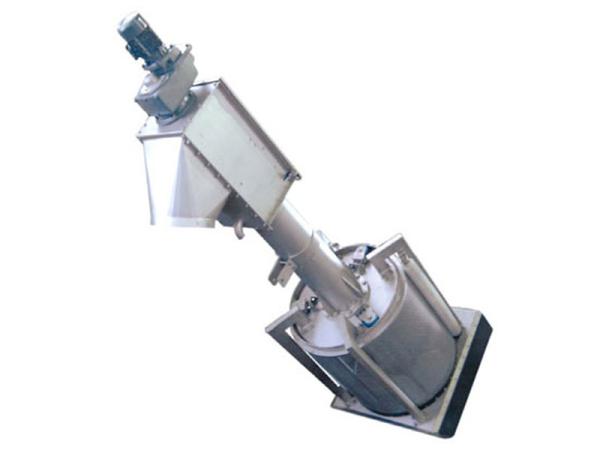

Custom Rotary Screen Filter With Inlet Screen For Industrial Wastewater Treatment
Custom Rotary Screen Filter With Inlet Screen For Industrial Wastewater Treatment
Custom Rotary Screen Filter With Inlet Screen For Industrial Wastewater Treatment
Custom Rotary Screen Filter With Inlet Screen For Industrial Wastewater Treatment
Specifications
Brand Name :
HOLLY
Model Number :
HLWLN
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
US $1800 - 6200 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 set per month
Delivery Time :
20 work days
Packaging Details :
standard export parking
Place of origin :
Jiangsu, China (Mainland)
Material :
SS304
Application :
Water Treatment
Slag discharge height H2(mm) :
Designed based on customer's request
H3(mm) :
Confirmed according to reducer type
Description

Drum Screen Rotary With Inlet Screen For Industrial Wastewater Treatment

Product Description


Drum Screen is a pretreatment integration device. When the sewage flows through the bar

frame, the flow will produce baffle phenomenon, then the scum, sediment and suspended

matters will become active and separate completely, the garbage will be taken out of the water

by the guiding plate through the function of the drum and the guiding plate which is weld to the

drum, and then the garbage will fall into the screw tank depending on its gravity. At the same

time, the nylon brushes and the nozzles above the drum will flush the fine grid slag into the

screw tank, the slag will be pressed, dewatered and transported by the screw conveyor,

transported up to the discharge hopper, and then discharged.

Features:

1. Little hydraulic loss, high efficiency, and large processing capacity.

2. Whole stainless steel structure, convenient in maintenance and long service life.

3. The working device of the equipment can clean the equipment by itself.

4. A system with more functions, and structure compact.

Application

Municipal Sewage treatment

Papermaking wastewater

Water Treatment Plant

Leather industry

Beverage industry

Slaughterhouse

Pharmaceutical wastewater

Food industry

Petrochemical industry

Textile industry

Technical parameters

Model 600 800 1000 1200 1400 1600 1800 2000
Drum Diameter(mm) 600 800 1000 1200 1400 1600 1800 2000
Drum Length I(mm) 500 620 700 800 1000 1150 1250 1350
Transport Tube d(mm) 219 273 273 300 300 300 360 500
Channel Width b (mm) 650 850 1050 1250 1450 1650 1850 2070
Max Water Depth H4 (mm) 350 150 540 620 750 860 960 1050
Installation Angle 35°
Channel Depth H1(mm)


600-3000
Discharge Height H2(mm)


Customized
H3(mm) Confirmed by type of reducer
Installation Length A(mm)


A=h*1.43-0.48D
Total Length L (mm) L=H*1.743-O.75D
Flow rate(m/s) 1.0

Volume
(m3/h)

Mesh
(mm)

 0.5 80 135 235 315 450 585 745 920
1 125 215 370 505 720 950 1205 1495
2 190 330 555 765 1095 1440 1830 2260
3 230 400 680 935 1340 1760 2235 2755
4 235 430 720 1010 1440 2050 2700 3340
5 250 465 795 1105 1575 2200 2935 3600
