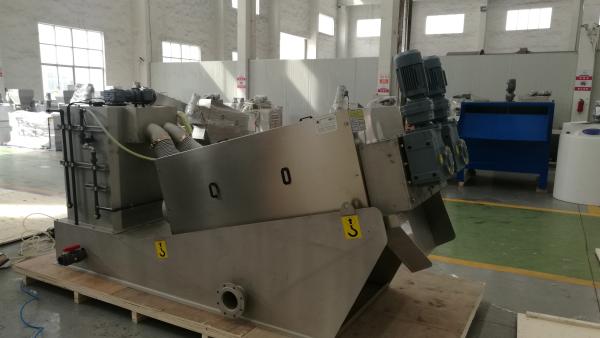

Polymer Station Solid Liquid Separator Industrial Wastewater Treatment Screw Type
Polymer Station Solid Liquid Separator Industrial Wastewater Treatment Screw Type
Polymer Station Solid Liquid Separator Industrial Wastewater Treatment Screw Type
Polymer Station Solid Liquid Separator Industrial Wastewater Treatment Screw Type
Specifications
Brand Name :
HOLLY
Model Number :
HLDS131
Certification :
CE, ISO9001,SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 Sets Per Month
Delivery Time :
30 working days after received your payment
Packaging Details :
According to customer requirements for screw oil press sludge dewatering machine for waste water treatment
Press Type :
Screw Type
Material :
SS304 Stainless Steel
Service Life :
>10 years
Port :
shanghai
Supporting Devices :
Polymer Station, Pumps
Standard Treating Capacity :
90-150kg/hr
Description

Dewatering Screw Press Solid and Liquid Separator For Municipal Sewage

The main unit of the Multi-disc Screw Press is a very simple, slow moving mechanical devise

that ring-shaped “fixed discs” and “movable discs” are alternately arranged at a certain gap

around a “screw shaft”.

Sludge dewatering can be used in an extremely wide variety of solid-liquid separation, or

dewatering applications. It has made possible the direct dewatering of low concentration

oxidation ditch or waste activated sludge. The already proven superior performance is

enhanced by auto self-cleaning function that enables stable and constant dewatering without

continuous flushing and allows 24 hr unattended operation 7 days per week.

Screw dewatering press is mainly used in wastewater treatment industries, such as:

1. Municipal water and wastewater treatment plants

2. Agricultural/fishery community wastewater treatment plants

3. Industrial waste treatment plants

4. Food/beverage production plants

5. Dairy farming/Meat processing plants

6. Chemicals manufacturing plants

7. Machinery manufacturing/Metal processing plants

8. Laundry wastewater

9. Especially for the sludge with high oil content

Advantage

1. Suitable for sludge dewatering of high/low consistency. When deal with low consistency

sludge (2000mg/L), there is no need to build a thickening tank, storage pool. Reduce the cost

and the release of phosphorus and Anaerobic stink.

2. There is no need to worry about jam up. Reduce the cleaning water consumption.

3. The dewatering screw press electrical cabinet, disposal tank and dehydrator are integrated,

which reduces the covering area and brings convenience to installment.

4. The dehydrator is enclosed working, which reduces the bad smell and improves the working

environment.

5. Automatically working for 24 hours, reducing the labor strength of workers.

6. The slow running speed of screw shaft reduces the power consumption and noise.

7. dewatering screw press made with stainless steel, extending the service life.

8. dewatering screw press convenient for daily maintenance.

Technical parameters

Model DS Standard capacity(kg/h)

Sludge treatment(m3/h)
10000mg/L 20000mg/L 30000mg/L 40000mg/L 50000mg/L
HLDS131 6-10 1 0.5 0.4 0.3 0.28
HLDS132 12-20 2 1 0.8 0.6 0.56
HLDS133 18-30 3 1.5 1.2 0.9 0.84
HLDS201 9-15 1.5 0.75 0.6 0.5 0.4
HLDS202 18-30 3 1.5 1.2 1 0.8
HLDS203 27-45 4.5 2.25 1.8 1.5 1.2
HLDS301 30-50 5 2.5 2 1.5 1.4
HLDS302 60-100 10 5 4 3 2.8
HLDS303 90-150 15 7.5 6 4.5 4.2
HLDS304 120-200 20 10 8 6 5.6
HLDS401 90-150 13 6.5 5 4 3.2
HLDS402 180-300 26 13 10 8 6.4
HLDS403 270-450 39 19.5 15 12 9.6
HLDS404 360-600 52 26 20 16 12.8

Model DN(mm)

Discharge

Height(mm)

 Dimension(mm)

N.W(kg)

O.W(kg)
L M H
HLDS131 φ130*1 250 1860 740 1075 250 395
HLDS132 φ130*2 250 1960 870 1075 350 595
HLDS133 φ130*3 250 1960 920 1075 450 795
HLDS201 φ200*1 350 2650 750 1375 420 540
HLDS202 φ200*2 350 2650 940 1375 550 660
HLDS203 φ200*3 350 2650 1190 1375 700 1010
HLDS301 φ300*1 530 3440 940 1825 900 1300
HLDS302 φ300*2 530 3640 1260 1825 1350 2000
HLDS303 φ300*3 530 3900 1620 1825 1900 2700
HLDS304 φ300*4 530 3900 2040 1825 2500 3600
HLDS401 φ350*1 570 4350 1020 2160 2200 4200
HLDS402 φ350*2 570 4350 1550 2160 3500 6000
HLDS403 φ350*3 570 4570 2100 2160 5500 8000
HLDS404 φ350*4 570 4570 2650 2160 7000 9500

Model Motor Power Rinse Water Pressure Water Consumption(L/H)

Maintennance

Frequency
Screw shaft agitator total
HLDS131 0.1 0.1 0.2

0.1Mpa-0.2Mpa

No need high pressure rinse water

 48

5min/day
HLDS132 0.1*2 0.1 0.3 96
HLDS133 0.1*3 0.1 0.4 144
HLDS201 0.37 0.37 0.74 32
HLDS202 0.37 0.37 1.11 64
HLDS203 0.37 0.37 1.48 96
HLDS301 0.75*1 0.75 1.5 40
HLDS302 0.75*2 0.75 2.25 80
HLDS303 0.75*3 0.75 3 120
HLDS304 0.75*4 0.75 3.75 160
HLDS401 1.1*1 0.75 1.85 80
HLDS402 1.1*2 0.75 2.95 160
HLDS403 1.1*3 0.75 4.05 240
HLDS404 1.1*4 0.75 5.15 320
