Pond Blue Eco Rotary Drum Filter , Rotary Vacuum Precoat Filter In Municipal Wastewater Treatment
Pond Blue Eco Rotary Drum Filter , Rotary Vacuum Precoat Filter In Municipal Wastewater Treatment
Pond Blue Eco Rotary Drum Filter , Rotary Vacuum Precoat Filter In Municipal Wastewater Treatment
Pond Blue Eco Rotary Drum Filter , Rotary Vacuum Precoat Filter In Municipal Wastewater Treatment
Specifications
Brand Name :
Holly
Model Number :
HLDS800
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 set
Price :
US $1,800-6,200 / Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 Set/Sets per Month
Delivery Time :
within 15 days
Packaging Details :
According to customer requirements for stainless steel filter separator machine drum filter for Sewage treatment plant
Material :
SS304
Feed Type :
External Type
color :
silver
Dimension (MM) :
1460*1200*1700
Flow (m³/h) :
4.5-5
Description

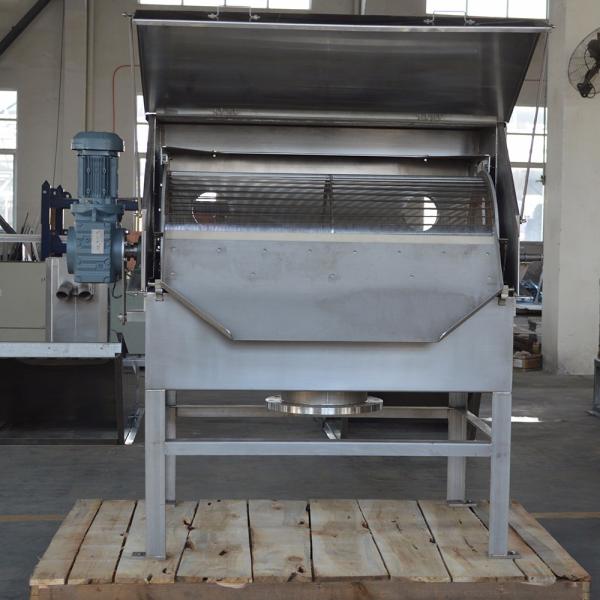

Stainless Steel Rotary Drum Filter Used In Municipal Wastewater Treatment

Application

Municipal water and wastewater treatment plants

Agricultural/fishery community wastewater treatment plants

Industrial waste treatment plants

Food/beverage production plants

Dairy farming/Meat processing plants

Chemicals manufacturing plants

Machinery manufacturing/Metal processing plants

Laundry wastewater

Other plants requiring dewatering machine (paper manufacturing, building material

manufacturing, oilfield associated water accompanied with crude oil mining, etc.)

Operation

The liquids to be filtered flow in the feeding tank through a flanged inlet and are conveyed

along with the filter surface through a special distributor equipped with wet seal. The solids

separation occurs there: the solids are kept and made to rotate by the external surface of the

rotating filter, and, finally, discharged by a brass cleaning blade. The liquid filtered passes

through the filtering drum, where it is washed again on the opposite side of the filter, conveyed

on the tank bottom and then discharged. The filter rotates thanks to a bath oil gearbox directly

connected at the rotating drum filter. Inside the rotating filter there is or a washing system

equipped with nozzles (mobile washing system), which work with high-pressure water, or a

bar composed of a set of spray nozzles (fixed washing system), through which the filtering

drum can be periodically cleaned.

Technical Parameters

Model

Screen Size(mm)

 Power(KW) Material Backwash water

Dimension

(MM)

Flow

(m³/h)

Pressure

(MPa)
HLWLW-300

φ300*500

Space:0.15-5mm

 0.55 SS304 2.5-3 ≥0.4 760*700*1200
HLWLW-400

φ400*600

Space:0.15-5mm

 0.55 SS304 2.5-3 ≥0.4 860*800*1300
HLWLW-500

φ500*750

Space:0.15-5mm

 0.75 SS304 2.5-3 ≥0.4 1050*900*1500
HLWLW-600

φ600*900

Space:0.15-5mm

 0.75 SS304 3.5-4 ≥0.4 1160*1000*1500
HLWLW-700

φ700*1000

Space:0.15-5mm

 0.75 SS304 3.5-4 ≥0.4 1260*1100*1600
HLWLW-800

φ800*1200

Space:0.15-5mm

 1.1 SS304 4.5-5 ≥0.4 1460*1200*1700
HLWLW-900

φ900*1350

Space:0.15-5mm

 1.5 SS304 4.5-5 ≥0.4 1600*1300*1800
HLWLW-1000

φ1000*1500

Space:0.15-5mm

 1.5 SS304 4.5-5 ≥0.4 1600*1300*1800
