Milk Beverage Aluminum Foil Sealing Filling Machine Liquid Bottling Machine

Liquid bottling machine description:

This machine is a four-in-one type machine, it combines rinsing, filling and aluminum foil cutting, hot sealing in 1 machine. All function and working actions are mainly controlled by PLC, touch screen operation, mainly suitable for a variety of milk, protein drinks, juice and other drinks production. Fully automatic, elegant appearance, simple operation and convenient maintenance.

The filling machine of milk beverage aluminum foil cover has the characteristics of compact structure, high automation, easy to use, simple maintenance and high production efficiency.

Liquid bottling machine features:

1. The equipment is equipped with international famous brands.

2. The parts in contact with materials are made of 304 stainless steel and equipped with CIP cleaning device

3. High quality filling, high filling accuracy.

4. Perfect hot filling temperature control system.

5. It has the function of no bottle filling and no bottle feeding.

Liquid bottling machine parameters:

Liquid bottling machine details description:

1. Bottle washing: screw bottle feeding and rotary bottle washing.

2. Filling: the piston is filled quantitatively. Materials will be pumped through the reciprocating movement of the cylinder. According to the high cleaning requirements of protein beverage, equipped with CIP cleaning device, the filling cylinder, valve and pipeline and other parts in contact with materials for cleaning.

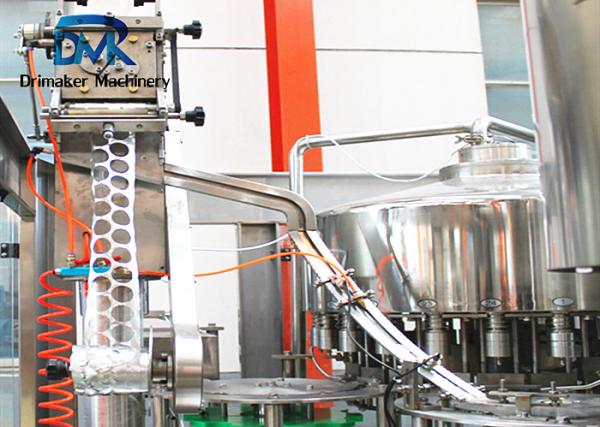

3. Aluminum foil molding: aluminum foil molding through the aluminum foil capping machine will roll the film into a cap and wear the cap on the bottle.

4. Sealing: heat seal the aluminum foil on the bottle through the thermal shrinkage part of the bottle to achieve sealing function. Each bottle has a temperature control adjustment, according to the thickness of the aluminum foil and the actual use, the heat sealing temperature can be adjusted.
