Rubber / Stainless Pressure Reducing Valve , Water PRV Adjustable Pressure Relief Valve
Rubber / Stainless Pressure Reducing Valve , Water PRV Adjustable Pressure Relief Valve
Rubber / Stainless Pressure Reducing Valve , Water PRV Adjustable Pressure Relief Valve
Rubber / Stainless Pressure Reducing Valve , Water PRV Adjustable Pressure Relief Valve
Rubber / Stainless Pressure Reducing Valve , Water PRV Adjustable Pressure Relief Valve
Rubber / Stainless Pressure Reducing Valve , Water PRV Adjustable Pressure Relief Valve
Specifications
Brand Name :
AFC OEM
Model Number :
A200
Certification :
EN1074-5
Place of Origin :
China
MOQ :
1
Price :
USD RMB
Payment Terms :
L/C, T/T
Supply Ability :
Based On order
Delivery Time :
15-60 days
Packaging Details :
plywood cases
Material :
Ductile Iron GJS500-7
Pilot Material :
SS304
Tubing :
SS304
Coating :
EPOXY
Diaphragm :
Nylon Reinforcement With EPDM
Rubber :
EPDM
Description

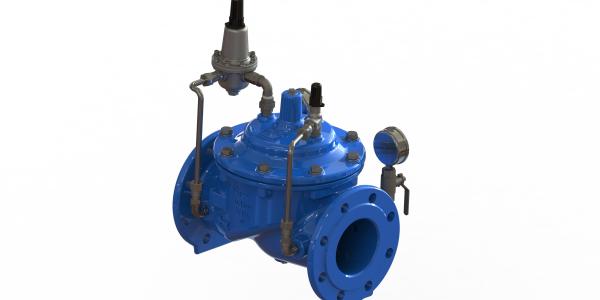

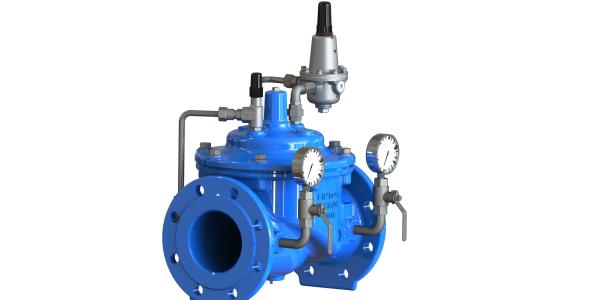

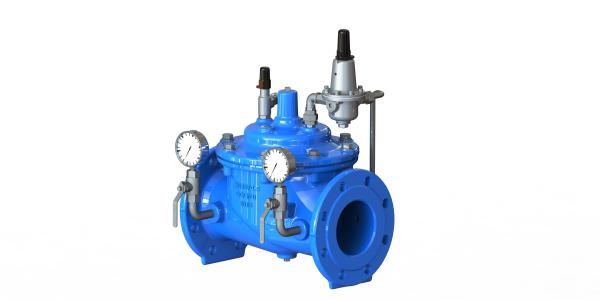

SS304 Pilot A200 PRV EPOXY Coated Ductile Iron Main Valve​

Description:

A200 continuously maintains the constant downstream pressure with an accurcy of ± 5%. If there is no consumption, the valve is 100% drop-tight (clean water provided). The downstream pressure will rise by approx. less than 0.5 bar under conditions between minimum an zero consumption.

Feature:

•Constant downstream pressure in water supply
• Low head loss in fully open position.

• Safe operation, no energy supply needed

• Robust and reliable

Service Fields:


For water system, irrigation system.

Technical Data:

Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water

Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1

Materials And Dimension

DN50-DN350

Rubber / Stainless Pressure Reducing Valve , Water PRV Adjustable Pressure Relief ValveRubber / Stainless Pressure Reducing Valve , Water PRV Adjustable Pressure Relief Valve

Rubber / Stainless Pressure Reducing Valve , Water PRV Adjustable Pressure Relief Valve

DN400-DN800

Rubber / Stainless Pressure Reducing Valve , Water PRV Adjustable Pressure Relief ValveRubber / Stainless Pressure Reducing Valve , Water PRV Adjustable Pressure Relief Valve

Rubber / Stainless Pressure Reducing Valve , Water PRV Adjustable Pressure Relief Valve
