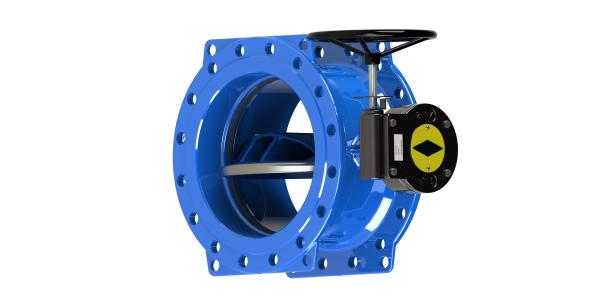

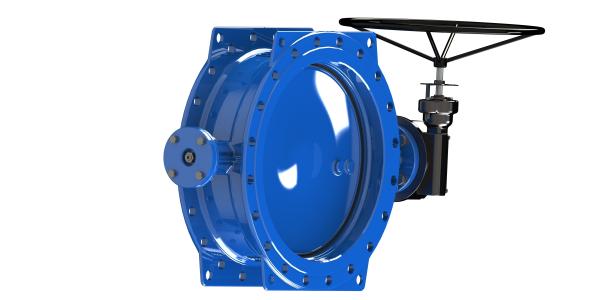

Rubber Seat Blue Double Flanged Butterfly Valve Carbon Steel Base Available
Rubber Seat Blue Double Flanged Butterfly Valve Carbon Steel Base Available
Rubber Seat Blue Double Flanged Butterfly Valve Carbon Steel Base Available
Rubber Seat Blue Double Flanged Butterfly Valve Carbon Steel Base Available
Rubber Seat Blue Double Flanged Butterfly Valve Carbon Steel Base Available
Rubber Seat Blue Double Flanged Butterfly Valve Carbon Steel Base Available
Specifications
Brand Name :
AFC OEM
Model Number :
FBGD, FBBD, FBED,FBPD
Certification :
NSF61 372
Place of Origin :
China
MOQ :
1
Price :
RMB USD
Payment Terms :
L/C, T/T
Supply Ability :
2 containers in 60 days
Delivery Time :
Based on order
Packaging Details :
Plywood cases and pallets
Color :
Blue RAL 5010 NSF61
Material :
Ductile Iron GSJ500-7
Disc Seat :
316L
Body Seat :
EPDM
Pressure Rating :
150 PSI
Standard :
AWWA C504
Description

AWWA C504 NSF61 Approved Double Flange Double Eccentric Butterfly Valve

Features:

Small platform on the valve body:

Keep the sleeve bearing fully in the hole, strong protection

No harming to the bearing during operation

Special Bearing:

Carbon Steel base coated with bronze + PTFE interior for lubricant and tin exterior to prevent rusty.

Stronger than bronze bearing and last longer

Online repairing by EPOXY:

The user only needs to repair the rubber seal from the exterior of the butterfly valve without going into the pipeline. The total repairing time could be around less than 1 hr for all kinds of the size.

Arch shape disc design :

Reduce head loss and minimize turbulence

Flow thru disc-energy saving, lower pumping cost

Rubber Seat:

Epoxy injected on the backside of groove

Dovetail design can tight the rubber seal

Multi ribs on the seal-reduce operation torque

Seal fixed in the groove and epoxy on the back side as a wedge, no worry of loosen

No need bolting and permanent positioned , decrease nut loose & hole rusting

Operation Torque:

Bare Head Torque (Nm)
Inch Nm
4 85
6 128
8 210
10 250
12 372
14 760
16 1160
18 1280
20 1680
24 2500
28 2592
32 4428
36 5300
40 7245
48 13320

Materials:


Rubber Seat Blue Double Flanged Butterfly Valve Carbon Steel Base AvailableRubber Seat Blue Double Flanged Butterfly Valve Carbon Steel Base Available

Rubber Seat Blue Double Flanged Butterfly Valve Carbon Steel Base AvailableRubber Seat Blue Double Flanged Butterfly Valve Carbon Steel Base Available

Dimension:

Rubber Seat Blue Double Flanged Butterfly Valve Carbon Steel Base Available

Rubber Seat Blue Double Flanged Butterfly Valve Carbon Steel Base Available

Rubber Seat Blue Double Flanged Butterfly Valve Carbon Steel Base Available

Rubber Seat Blue Double Flanged Butterfly Valve Carbon Steel Base Available
