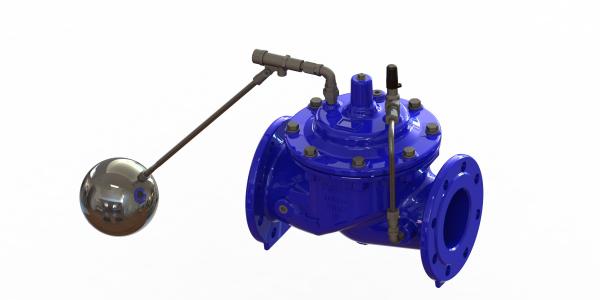

Modulating Blue Floating Ball Valve , Full Bore Water Level Float Valve
Modulating Blue Floating Ball Valve , Full Bore Water Level Float Valve
Modulating Blue Floating Ball Valve , Full Bore Water Level Float Valve
Modulating Blue Floating Ball Valve , Full Bore Water Level Float Valve
Modulating Blue Floating Ball Valve , Full Bore Water Level Float Valve
Modulating Blue Floating Ball Valve , Full Bore Water Level Float Valve
Specifications
Brand Name :
AFC
Model Number :
A100
Certification :
EN1074-5
Place of Origin :
China
MOQ :
1
Price :
USD RMB
Payment Terms :
L/C, T/T
Supply Ability :
Based on order
Delivery Time :
15-60 days
Packaging Details :
Plywood cases
Material :
Ductile Iron GJS500-7
Pilot Material :
SS304
Standard :
EN1074-5
Function :
Modulating
Coating :
EPOXY
Diaphragm :
Nylon Reinfocement with EPDM
Description

Nylon Reinfocement Diaphragm Stainless Steel Pilot Modulating Float control valve Full Bore EPOXY Coated ​

A100 is used to maintain a preset water level in a reservoir or a water tank in a simple, economic manner. The A100 valve is activated by the line pressure.
The A100 stays open as long as the water level in the reservoir is below the preset level. As the water level rises and lifts the float, the valve gradually closes.

Service Fields:


For water system, irrigation system.

Technical Data:

Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water

Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1

Materials And Dimension

DN50-DN350

Modulating Blue Floating Ball Valve , Full Bore Water Level Float ValveModulating Blue Floating Ball Valve , Full Bore Water Level Float Valve

Modulating Blue Floating Ball Valve , Full Bore Water Level Float Valve

DN400-DN800

Modulating Blue Floating Ball Valve , Full Bore Water Level Float ValveModulating Blue Floating Ball Valve , Full Bore Water Level Float Valve

Modulating Blue Floating Ball Valve , Full Bore Water Level Float Valve
