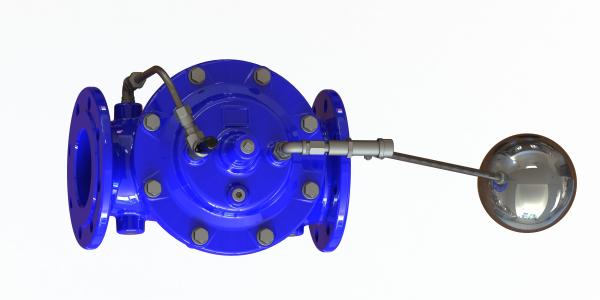

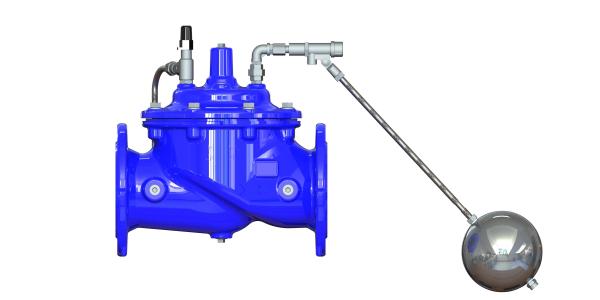

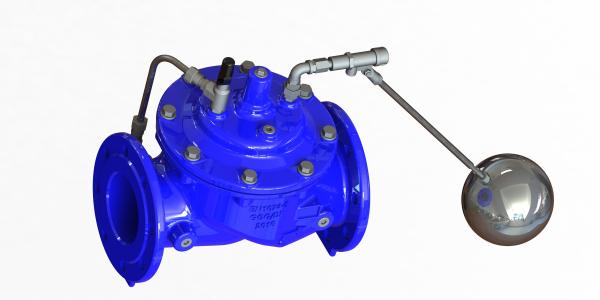

EPOXY Coated Blue Float Control Valve Replaceable Seat Ring Available
EPOXY Coated Blue Float Control Valve Replaceable Seat Ring Available
EPOXY Coated Blue Float Control Valve Replaceable Seat Ring Available
EPOXY Coated Blue Float Control Valve Replaceable Seat Ring Available
EPOXY Coated Blue Float Control Valve Replaceable Seat Ring Available
EPOXY Coated Blue Float Control Valve Replaceable Seat Ring Available
Specifications
Brand Name :
AFC OEM
Model Number :
A100
Certification :
EN1074-5
Place of Origin :
China
MOQ :
1
Price :
USD RMB
Payment Terms :
L/C, T/T
Supply Ability :
Based On order
Delivery Time :
15-60 days
Packaging Details :
plywood cases
Material :
Ductile Iron GJS500-7
Pilot Material :
SS304
Tubing :
SS304
Coating :
EPOXY
Diaphragm :
Nylon Reinforcement With EPDM
Rubber :
EPDM
Description

EPOXY Coated SS304 Float Pilot Ductile Iron Main Valve A100 Modulating Float Control Valve ​ ​​

Description:

The main valve is controlled by a float valve, located in the tank or reservoir and set at the required maximum water level. The valve maintains the maximum level continuously.

Features:

Operates automatically off line pressure.
Nylon-reinforced diaphragm.
Diaphragm assembly guided top and bottom.
Easily maintained without removal from the line.
Replaceable seat ring.
Valves are factory tested.

Service Fields:


For water system, irrigation system.

Technical Data:

Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water

Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1

Materials And Dimension

DN50-DN350

EPOXY Coated Blue Float Control Valve Replaceable Seat Ring AvailableEPOXY Coated Blue Float Control Valve Replaceable Seat Ring Available

EPOXY Coated Blue Float Control Valve Replaceable Seat Ring Available

DN400-DN800

EPOXY Coated Blue Float Control Valve Replaceable Seat Ring AvailableEPOXY Coated Blue Float Control Valve Replaceable Seat Ring Available

EPOXY Coated Blue Float Control Valve Replaceable Seat Ring Available
