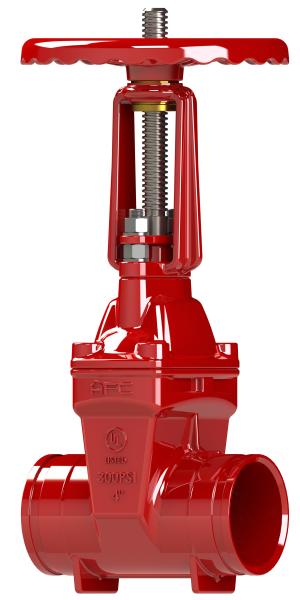

UL FM Abrasion Resistant 250 300PSI Non Rising Stem Gate Valve
UL FM Abrasion Resistant 250 300PSI Non Rising Stem Gate Valve
UL FM Abrasion Resistant 250 300PSI Non Rising Stem Gate Valve
UL FM Abrasion Resistant 250 300PSI Non Rising Stem Gate Valve
UL FM Abrasion Resistant 250 300PSI Non Rising Stem Gate Valve
UL FM Abrasion Resistant 250 300PSI Non Rising Stem Gate Valve
UL FM Abrasion Resistant 250 300PSI Non Rising Stem Gate Valve
UL FM Abrasion Resistant 250 300PSI Non Rising Stem Gate Valve
Specifications
Brand Name :
AFC
Model Number :
FRHF, FNCF, FRHG, FNCG
Certification :
UL 262 and FM 1120
Place of Origin :
China
MOQ :
1
Price :
Price negotiable
Payment Terms :
L/C, T/T
Supply Ability :
Based on order
Delivery Time :
45-60 days
Packaging Details :
Plywood cases
Product Name :
Non Rising Stem Gate Valve with Less Operation Torgue And Abrasion Resistance advantage
Model Code :
FRHF, FNCF, FRHG, FNCG
Material :
Dictile iron GJS500-7
Color :
Red
Standard :
UL 262 and FM 1120
Description

Non Rising Stem Gate Valve with Less Operation Torgue And Abrasion Resistance advantage

Production Quality Control

IQC Check call incoming parts
IPQC Check the production process is qualified
FQC All valves are pressure tested
OQC Check the valve ourlook and packing

Feature:

• Newly advanced design, less operation torgue & abrasion resistance.
• Disc is covered by high-grade rubber, which complies with drinking water.
• High-tech rubber curing with precise geometry dimensions, more resilient & strong adhesive to ductile casting.
• The O-ring stem seals are designed to prevent stem leakage. and provide replacement of the O-ring without disassambling of valve from mainline pipes.
• Both inside & outside are coated with epoxy resin powder.

Field Services:


Fire fighting Resilient seated gate valve with a resilient seated wedge which is fully encapsulated with rubber. It can be used extensively in all kinds of water supply & sewage, fi re-fi ghting and function as a shut-off or regulation valve. The valve is designed with new technology for light operating, no clogging and no corrosion, good resilient memory & long service life.


Technical Data


Size Range: DN50~DN300mm(2''-12'')
Working Pressure: 250/300 PSI
Working Temperature:-10C- 80C
Flow Media: Water
Flange Ends Connection: AISI B16.1 and PN16
Grooved Ends Connection: AWWA C606

Dimensions

UL FM Abrasion Resistant 250 300PSI Non Rising Stem Gate Valve

UL FM Abrasion Resistant 250 300PSI Non Rising Stem Gate Valve
