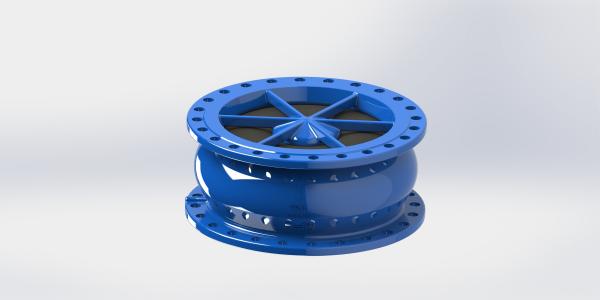

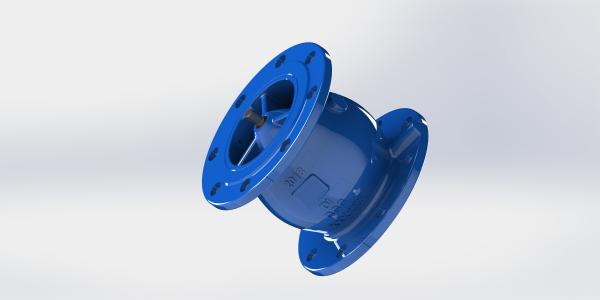

DN600 Anti Water Hammer Non Slam Swing Check Valve With Diffuser
DN600 Anti Water Hammer Non Slam Swing Check Valve With Diffuser
DN600 Anti Water Hammer Non Slam Swing Check Valve With Diffuser
DN600 Anti Water Hammer Non Slam Swing Check Valve With Diffuser
DN600 Anti Water Hammer Non Slam Swing Check Valve With Diffuser
DN600 Anti Water Hammer Non Slam Swing Check Valve With Diffuser
DN600 Anti Water Hammer Non Slam Swing Check Valve With Diffuser
DN600 Anti Water Hammer Non Slam Swing Check Valve With Diffuser
Specifications
Brand Name :
AFC,OEM
Model Number :
NSCV
Certification :
WRAS, NSF61/372
Place of Origin :
China
MOQ :
1
Price :
Price negotiable
Payment Terms :
L/C, T/T
Supply Ability :
Based on order
Delivery Time :
45-60 days
Packaging Details :
Plywood cases
Product Name :
Non Slam Check Valve
Model Code :
NSCV
Material :
Ductile iron GJS500-7
Standard :
EN1074-3, EN12233
Fuction :
Anti Water Hammer
Coating :
EPOXY
Color :
Blue
Head loss :
Low
Description

Anti Water Hammer Non Slam Swing Check Valve With Diffuser

Description:

Non Slam Check Valve has very short face to face distance. The closing speed is so quick up to max 0.2sec and the stroke is only about 20% of valve bore diameter. It has hydrodynamic design with spring ensure non slamming and to minimize the water hammer. The advance diffuser design maintains the streamline flow and reduces the water head loss to save pumping power. Overall it has a very low headloss and strong capability to minimize water hammer.

Features:

·High strength ductile iron body used for durability and less weight.
·Advanced dynamic design of single body with diffuser provides streamline flow and assures lower head loss.
·One of the lowest head loss check valve, big save in pumping power cost, valve disc with shorter stroker and spring reverse faster than most of check valve.
·Coated with powder epoxy both inside & outside for corrosion resistance.
·Bronze bushing reduce wearing problem during operation.
·Hydrodynamic design with spring ensures non slamming and water hammerless.
·Stainless steel spring hidden in the diffuser under protection while valve is working.
·Disc will positively close before reverse flow, and maximize the closing speed up to 0.2 Sec.
· Installation can be vertical/horizontal/inclined.
·Meet EN 558-1, ISO 5752 and EN 1092-2, ISO 7005-2 flange dimension.

Service Fields:
Mainly used for clean water, precleaned sewage water, Fire-fighting, Irrigation, Cooling and HVAC System.

Technical Data:

Size DN50-DN600
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water

Dimension:

DN50 - DN350

DN600 Anti Water Hammer Non Slam Swing Check Valve With Diffuser

DN600 Anti Water Hammer Non Slam Swing Check Valve With Diffuser

DN400 - DN600

DN600 Anti Water Hammer Non Slam Swing Check Valve With Diffuser

DN600 Anti Water Hammer Non Slam Swing Check Valve With Diffuser

Materials:

DN50-DN350

DN600 Anti Water Hammer Non Slam Swing Check Valve With DiffuserDN600 Anti Water Hammer Non Slam Swing Check Valve With Diffuser

DN600 Anti Water Hammer Non Slam Swing Check Valve With DiffuserDN600 Anti Water Hammer Non Slam Swing Check Valve With DiffuserDN600 Anti Water Hammer Non Slam Swing Check Valve With Diffuser
