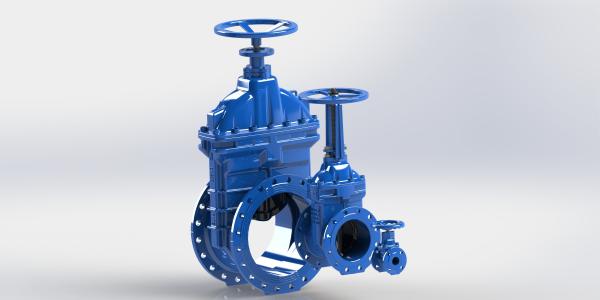

Resilient Seated Gate Valve EPDM Wedge Epoxy Coated Inside And Outside
Resilient Seated Gate Valve EPDM Wedge Epoxy Coated Inside And Outside
Resilient Seated Gate Valve EPDM Wedge Epoxy Coated Inside And Outside
Resilient Seated Gate Valve EPDM Wedge Epoxy Coated Inside And Outside
Resilient Seated Gate Valve EPDM Wedge Epoxy Coated Inside And Outside
Resilient Seated Gate Valve EPDM Wedge Epoxy Coated Inside And Outside
Resilient Seated Gate Valve EPDM Wedge Epoxy Coated Inside And Outside
Resilient Seated Gate Valve EPDM Wedge Epoxy Coated Inside And Outside
Specifications
Brand Name :
AFC, OEM
Model Number :
GBCX, GBHX
Certification :
WRAS, CE, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Price negotiable
Payment Terms :
L/C, T/T
Supply Ability :
60 days for two containers
Delivery Time :
45-60 days
Packaging Details :
Plywood cases packing
Product Name :
Resilient Seated Gate Valve EPDM Wedge Epoxy Coated Inside And Outside
Model Code :
GBCX, GBHX, GBBX
Material :
Ductile Iron GJS500-7
Color :
Blue RAL5010, Red EY3000
Standard :
EN1074-2
Stem :
SS420,SS431
Nut :
Brass, Bronze
Operator :
HW, Cap
Description

Resilient Seated Gate Valve EPDM Wedge Epoxy Coated Inside And Outside

Description:

Resilient seated gate valve has soft seated wedge with fully coated with rubber. The FBE coating provent corrosion for both interior and exterior. Rubber wedge can help good resilient memory and long service life.

Features:

• Body & bonnet are made of high grade ductile Iron GJS500-7


• Disc is designed with an abrasion resistant nylon guide which can help less opening or closing torgue and smooth during operation.

1. EPDM fully vulcanized

2. WRAS approved


• Forged stem provide stronger stem operation and less moving parts.

1. Stainless Steel 420 / Stainless Steel 431 / Stainless 304/ Stainless Steel 316 are available.

2. Platform provide better strength


• Ductile Iron inside the wedge is covered by WRAS Approved EPDM which is suitalbe for drinking water.


• High-tech rubber curing with precise geometry dimensions, more resilient & strong adhesive to ductile casting.


• The 4 O-ring stem seals are designed to prevent stem leakage. and provide replacement of the O-ring without disassambling of valve from mainline pipes.


• Both inside & outside are coated with epoxy powder.


• Manufacturing standard meets BS EN 1074-1, EN1074-2, BS 5163, BS EN 1171.


• F/F (Face to Face) meets the following standard: BS EN558-1.

• Bolts are protected by silicon glue.

Quality System

IQC Check call incoming parts
IPQC Check the production process is qualified
FQC All valves are pressure tested
OQC Check the valve ourlook and packing

Size Range: DN50~DN600mm


Pressure Rating: 1.0Mpa; 1.6Mpa; (2.5MPa Up to DN300)


Working Temperature:-10℃- 80℃


Flow Media: Water, Sewage


End Connection: PN 10/ 16, PN25 is available up to DN300

Material:

Resilient Seated Gate Valve EPDM Wedge Epoxy Coated Inside And OutsideResilient Seated Gate Valve EPDM Wedge Epoxy Coated Inside And Outside

Dimension :

Resilient Seated Gate Valve EPDM Wedge Epoxy Coated Inside And Outside

Resilient Seated Gate Valve EPDM Wedge Epoxy Coated Inside And Outside

Resilient Seated Gate Valve EPDM Wedge Epoxy Coated Inside And Outside
