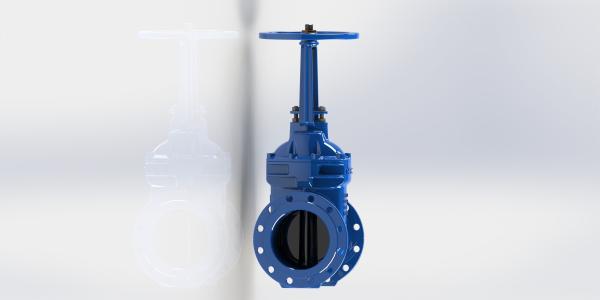

Ductile Iron Resilient Seated Gate Valve Rising / No - Rising Stem AWWA Standard
Ductile Iron Resilient Seated Gate Valve Rising / No - Rising Stem AWWA Standard
Ductile Iron Resilient Seated Gate Valve Rising / No - Rising Stem AWWA Standard
Ductile Iron Resilient Seated Gate Valve Rising / No - Rising Stem AWWA Standard
Ductile Iron Resilient Seated Gate Valve Rising / No - Rising Stem AWWA Standard
Ductile Iron Resilient Seated Gate Valve Rising / No - Rising Stem AWWA Standard
Ductile Iron Resilient Seated Gate Valve Rising / No - Rising Stem AWWA Standard
Ductile Iron Resilient Seated Gate Valve Rising / No - Rising Stem AWWA Standard
Specifications
Brand Name :
AFC, OEM
Model Number :
GBHX, GBCX, GBBX
Certification :
ISO9001, EN1074-2
Place of Origin :
China
MOQ :
1
Price :
Price negotiable
Payment Terms :
L/C, T/T
Supply Ability :
60 days for 2 containers
Delivery Time :
Based on order
Packaging Details :
Plywood cases
Operator :
Handwheel
Valve Body :
Ductile Iron GJS500-7
Wedge :
Ductile Iron With Vulcanized Rubber
Guide :
Nylon 66
Color :
Red, Blue
Powder :
WRAS Approved
Description

Ductile Iron Resilient Seated Gate Valve Rising Or No - Rising Stem AWWA Standard Available

Features:

1. Conform BS5163, EN1074-1 and EN1074-2 standard.

2. Over torque can be 5 times without deformation.

3. External pressure test to prevent vaccum happnened when water stops in pipe line. No sucking dirt or sand from outside of the valve.

4. Low operation torque.

5. Online repair by 5 pcs of o-rings for stem seal.

6. AWWA flange is avaliable.

Spec:

Size DN50-DN600
Working Temperature - 10C- 80C
Flange PN10/16
Flow Media Water, Sewage Water
Face to Face EN558-1


Production Process:

1. Sandblasitng - Clean the rusty casting and give enough roughness for casting.

2. Coating - Fusion Bonded EPOXY - WRAS, NSF approved

3. Assembling - By qualified workers

4. Testing - 100% tested with shell (1.5 * PN) and seat test (1.1 * PN)

5. Packing - Plywood crates.

Ductile Iron Resilient Seated Gate Valve Rising / No - Rising Stem AWWA Standard

DN L H1 H2 ΦB ΦD ΦK N-Φd C ΦF
PN10 PN16 PN10 PN16 PN10 PN16 PN10 PN16
50 178 240 255 99 165 125 4-Φ19 19 180
65 190 258 280 118 185 145 4-Φ19 19 180
80 203 293 311 132 200 160 8-Φ19 19 200
100 229 326 340 156 220 180 8-Φ19 19 200
125 254 377 386 184 250 210 8-Φ19 19 250
150 267 414 430 211 285 240 8-Φ23 19 250
200 292 510 550 266 340 295 8-Φ23 12-Φ23 20 300
250 330 585 628 319 395 405 350 355 12-Φ23 12-Φ28 22 350
300 356 663 703 370 445 460 400 410 12-Φ23 12-Φ28 24.5 350
350 381 880 930 429 505 520 460 470 16-Φ23 16-Φ28 24.5 26.5 450
400 406 990 1040 480 565 580 515 525 16-Φ28 16-Φ31 24.5 28 450
