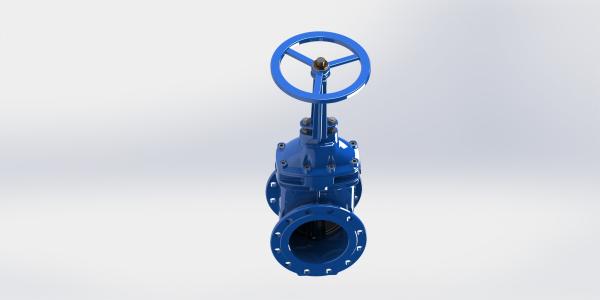

EN1074-2 FBE Coated Wedge Type Non Rising Stam Gate Valve DN600
EN1074-2 FBE Coated Wedge Type Non Rising Stam Gate Valve DN600
EN1074-2 FBE Coated Wedge Type Non Rising Stam Gate Valve DN600
EN1074-2 FBE Coated Wedge Type Non Rising Stam Gate Valve DN600
EN1074-2 FBE Coated Wedge Type Non Rising Stam Gate Valve DN600
EN1074-2 FBE Coated Wedge Type Non Rising Stam Gate Valve DN600
EN1074-2 FBE Coated Wedge Type Non Rising Stam Gate Valve DN600
EN1074-2 FBE Coated Wedge Type Non Rising Stam Gate Valve DN600
Specifications
Brand Name :
AFC, OEM
Model Number :
GBCX, GBHX
Certification :
WRAS, CE, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Price negotiable
Payment Terms :
L/C, T/T
Supply Ability :
60 days for two containers
Delivery Time :
45-60 days
Packaging Details :
Plywood cases packing
Product Name :
Ductile Iron Resilient Wedge Non Rising Steam Gate Valves FBE Coated
Model Code :
GBCX, GBHX
Material :
Ductile Iron GJS500-7
Color :
Blue RAL5010, Red
Standard :
EN1074-2
Size :
DN50-DN600
Nut :
Brass, Bronze
Operator :
HW, Cap
Description

Ductile iron Resilent Seated Water Gate Valve Fusion Bonded Epoxy Coated

Features:

• Body and bonnet are made of high grade ductile Iron GJS500-7


• Disc is designed with an abrasion resistant nylon guide that can help less opening or closing torgue and smooth during operation.

1. WRAS Approved EPDM fully vulcanized

2. Strong rubber hardness for long lasting

• The 4 O-ring stem seals are designed to prevent stem leakage. And provide replacement of the O-ring without disassambling of valve from mainline pipes.


• Forged stem provide stronger stem operation and less moving parts.

1. Customized Material, like SS420 / SS431 / SS304/ SS316 are available.

2. Platform on the stem provide better strength. Pass R-key test.

3. High-tech rubber curing with precise geometry dimensions, more resilient & strong adhesive to ductile casting.


• Epoxy powder coated with minumum thickenss 250um.


• Wter Gate Valve standard meets BS EN 1074-1, EN1074-2, BS 5163, BS EN 1171.


• F/F (Face to Face) meets the following standard: BS EN558-1.

Quality System In production

IQC Check call incoming parts
IPQC Check the production process is qualified
FQC All valves are pressure tested
OQC Check the valve ourlook and packing

Size Range: DN50~DN600mm


Pressure Rating: 1.0Mpa; 1.6Mpa; (2.5MPa Up to DN300)


Working Temperature:-10℃- 80℃


Flow Media: Water, Sewage


End Connection: PN 10/ 16, PN25 is available up to DN300

Material:

EN1074-2 FBE Coated Wedge Type Non Rising Stam Gate Valve DN600EN1074-2 FBE Coated Wedge Type Non Rising Stam Gate Valve DN600

Dimension :

EN1074-2 FBE Coated Wedge Type Non Rising Stam Gate Valve DN600

EN1074-2 FBE Coated Wedge Type Non Rising Stam Gate Valve DN600

EN1074-2 FBE Coated Wedge Type Non Rising Stam Gate Valve DN600
