High Temperature Non-Oil Self Lubricating Bushing Material Elastomeric Polymer Alloy
High Temperature Non-Oil Self Lubricating Bushing Material Elastomeric Polymer Alloy
High Temperature Non-Oil Self Lubricating Bushing Material Elastomeric Polymer Alloy
High Temperature Non-Oil Self Lubricating Bushing Material Elastomeric Polymer Alloy
High Temperature Non-Oil Self Lubricating Bushing Material Elastomeric Polymer Alloy
High Temperature Non-Oil Self Lubricating Bushing Material Elastomeric Polymer Alloy
High Temperature Non-Oil Self Lubricating Bushing Material Elastomeric Polymer Alloy
High Temperature Non-Oil Self Lubricating Bushing Material Elastomeric Polymer Alloy
High Temperature Non-Oil Self Lubricating Bushing Material Elastomeric Polymer Alloy
High Temperature Non-Oil Self Lubricating Bushing Material Elastomeric Polymer Alloy
Specifications
Brand Name :
INDRON®
Certification :
GB/T19001-2016/ISO9001:2015, CHINA CLASSIFICATION SOCIETY
Place of Origin :
China
MOQ :
1
Price :
USD, CNY
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
15working days
Packaging Details :
Cartoon
Model NO. :
Custom Bushing
Transport Package :
Heavy Duty Carton or Wood
Trademark :
INDRON
Origin :
China
Bearing Structure :
Split Plain Bearing
Type of Lubricant :
Water-Lubricated Bearing
Lubricant & Load :
Hydrodynamic Bearing
Bushing Material :
Elastomeric Polymer Alloy
Bearing Direction :
Radial
Lubricating Way :
Maintenance-Free Bearing
Customization :
Available | Customized Request
Description
INDRON® hydro bearings can be flexibly assembled into split bearing with dovetail slat bearing bush, which is convenient for installation and maintenance without shaft extension, and more reliable when compared with the interference installation of cylinder bearing. If necessary during overhaul, the slat bearing bushes can be conveniently replaced, and a variety of homogeneous elastoplastic polymer alloy dovetail slat bearing bushes of different material grades can be mixed or staggered in one bearing, so that the bearing achieves wear resistance and self-lubricating, and effectively controls the balance of wobble.
Material Grade
Bearing(lining) INDRON®TSTN INDRON®HRBR INDRON®HAWF INDRON®UNIV INDRON®PLAT
Material Synthetic Engineering Elastomers Synthetic Engineering Elastomers SyntheticEngineering Elastomers Synthetic Engineering Elastomers Synthetic Engineering Elastomers
Recommended Workplace Guide Bearings & Seals Guide Bearings& Seals Guide Bearings & Seals Guide van, connecting rod bushing Guide vane, connecting rod bushing
Temperature Limit 70℃ 70℃ 70℃ 70℃ 70℃
Dry Rub Yes low speed low speed Yes Yes
Acid Resistance limit limit limit limit limit
Alkaline Resistant limit limit limit limit limit
Hydrocarbon Suitability Yes Yes Yes Yes Yes
Abrasion Resistance good excellent excellent good good
Friction Pair(bushing) bronze HRC40 HRC40 HRC40 HRC40
Stainless recommend recommend recommend recommend
Typical Application water, sea water water, sea water water, sea water water, sea water water, sea water
Most fluids(pH 5-10) Most fluids(pH5-10) Most fluids(pH5-10) Most fluids(pH 5-10) Most fluids(pH5-10)
Note Lowest coefficient of friction,suitable for dry running applications, good wear resistance Use silt water under moderate grinding conditions Use ofsilt-containing water under high grinding conditions. Contains abrasion resistant high load capacity high load capacity

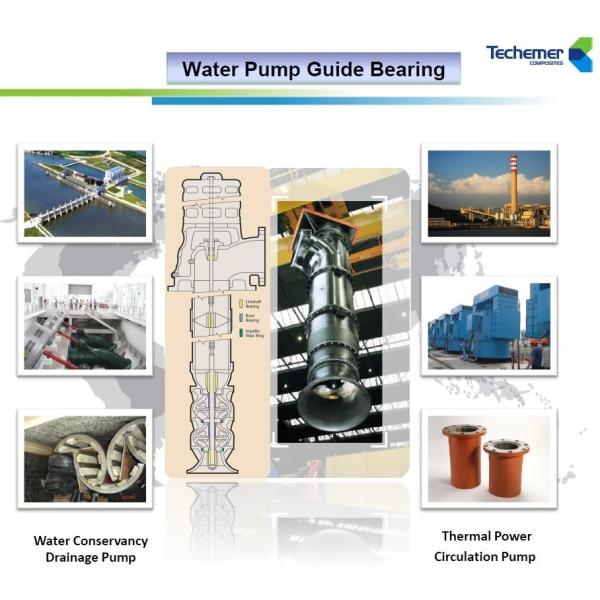

What bearing materials are more suitable as the materials used for water pump guide bearings, Babbitt alloy, rubber, ceramics or new polymer materials? It is advisable to take account of the lubrication requirements, use environment and maintenance cycle of the equipment.

COMMON GUIDE BEARING MATERIALS
Bearing type
INDRON bearing
AR bearing
Ceramic bearing
Rubber bearing
Babbitt alloy bearing
Characteristics
The performance is close thordon, which can use more equipment assembly methods. In addition to traditional installations by freezing and pressurizing. It can also be installed by coating reactive thermal polymerization Dx and cold sticking.
Good wear resistance and impact resistance. The bearing hardness is high; the shaft sleeve is easy to wear; the temperature difference changes greatly; there will be the risk of shelling; the price is high.
Wear-resistant, heat-resistant, corrosion-resistant, lubricated by pump circulating water, capable of dry grinding for a short time, high requirement on accuracy in processing and assembly, fragile and the most expensive.
It has a long history and mature manufacturing process, featured by wear resistance, anti-seismic, impact resistance, convenient assembly/disassembly and low price (only 20% of ceramic bearings price)
Wear resistance and impact resistance require a set of more complicated sealing and lubricating devices and mechanisms.
Lubricating requirements
Clean water can be used for lubrication or 150s dry start according to the material grades.
Dry start more than 180S without clean water lubrication.
It can be lubricated by pumping medium without special clean water lubrication.
Clean industrial water
Grease lubrication requires a grease supply lubrication system.
Working temperature
≤70ºC
≥273ºC
The bearing itself can withstand the temperature of 1,400ºC
≤50ºC
≤65ºC
Short time up to 80ºC
Application site
For pumping stations short of clean water or pumping stations requiring short-term dry friction, hRBR grade is suitable for water quality with moderate sediment content.
Pumping stations without clean water or pumping stations requiring dry friction of more than 180S.
Pumping stations without clean water or pumping stations requiring short-term dry friction.
Extensive application in any pumping stations with clean water sources.
The liquid of the pump itself cannot be used for bearing lubrication in the pumping station.
Bearing type
INDRON bearing
AR bearing
Ceramic bearing
Rubber bearing
Babbitt alloy bearing
