Stainless steel Wedge wire sieve bend screen with YES after sales service
Stainless steel Wedge wire sieve bend screen with YES after sales service
Stainless steel Wedge wire sieve bend screen with YES after sales service
Stainless steel Wedge wire sieve bend screen with YES after sales service
Stainless steel Wedge wire sieve bend screen with YES after sales service
Stainless steel Wedge wire sieve bend screen with YES after sales service
Stainless steel Wedge wire sieve bend screen with YES after sales service
Stainless steel Wedge wire sieve bend screen with YES after sales service
Stainless steel Wedge wire sieve bend screen with YES after sales service
Stainless steel Wedge wire sieve bend screen with YES after sales service
Stainless steel Wedge wire sieve bend screen with YES after sales service
Stainless steel Wedge wire sieve bend screen with YES after sales service
Specifications
Condition :
New
Warranty :
6 Months
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Weight (KG) :
100
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Core Components :
PLC, Pump
Place of Origin :
Sichuan, China
Brand Name :
top
Usage :
Liquid Filter
Type :
Filter Elements
Material :
SS304/316/Duplex stainless steel
Hole Shape :
Square
Filter Rating :
90%
Thickness :
customized
Length :
900-1600mm
Width :
350-2640mm
Product name :
Stainless steel Wedge wire sieve bend screen 0.1-1mm slot width
Application :
Liquid Filtration
Certificate :
ISO
We are factory :
yes
Packing :
Wooden Cases
Slot size :
0.1-2mm
Material type :
SS304 316L
function :
Remove SS
warranty :
one year
after sales service :
YES
Packaging Details :
wooden case/container
Stainless steel Wedge wire sieve bend screen 0.1-1mm slot width
Port :
shanghai
Supply Ability :
400 Set/Sets per Month
Price :
$1,000.00/sets >=1 sets
MOQ :
1pc
Description
Product Description
Stainless steel Wedge wire sieve bend screen 0.1-1mm slot width
Stainless steel Wedge wire sieve bend screen with YES after sales service

Advantages

1. High opening rate, big filter area, fast filtering speed.
2. Good corrosion resistance and wear resistance.
3. Low using cost and long life span
4.Homogeneous slot size, smooth surface, strong permeability, minimum gap precision can be up to 8 microns.

Specification:
1. Material: Carbon steel, Low carbon steel, Stainless steel (304,316L,1Cr18Ni9Ti,0Cr18Ni9,00Cr17Ni14Mo2,321) Duplex stainless
steel,Hastelloy, Titanium alloy,etc
2. Minimum slot size: can be up to 8 microns.
3. Wrap and support rod: Wrap type: V1,V2,V3,V4; Rod type: V4,V5,V6,T1,T2,U1,U2
4. Note: The length and width can be customized.

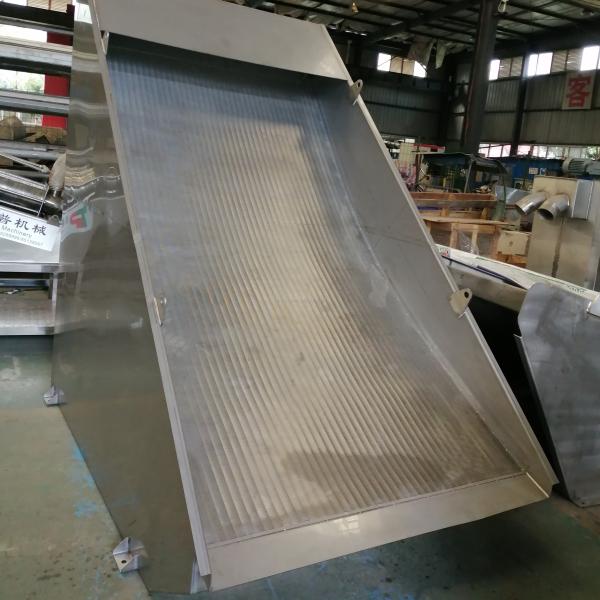

Pressure bend sieve is a kind of high efficient sieve, relying on pressure screening the wet, which is composed of screen surface,
sieve box, feeding device and outlet. The screen surface is the key component. It is made of stainless steel shape screen. When
operating the wet material ejected from the nozzle under pressure from 0.2 to 0.4 Mpa, high ejection speed produces tangential
force, triangular mesh wedge forms blade to scrap the material into a thin layer, then the water and fine material evenly
dispersed,and the entire screen surface get essential self-cleaning. The material on the sieve discharged from the taphole,The
material under the sieve get into the stock inlet. As it adopted the multistage countercurrent washing process, it can effectively
improve powder extraction rate and starch quality, having an obvious economic benefits. It becomes an replacement of the screening
process in starch industry.
Application: germ washing and fiber separation in starch industry.

Arc vibrating screen(sieve bend) is a certain curvature radius and angle of slotted screen. As required, it can be made of
different radii and different angles. Common angle 45 °, 60 °, 90 °, 180 ° and 270°.Mainly used for coal preparation plants, iron
ore mines, food processing and other industries.
