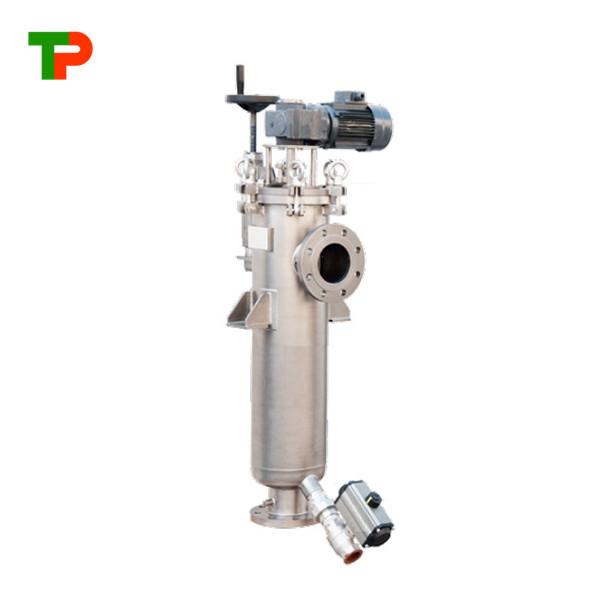

Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter
Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter
Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter
Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter
Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter
Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter
Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter
Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter
Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter
Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter
Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter
Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter
Specifications
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Farms
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Gear
Condition :
New
Place of Origin :
Sichuan, China
Brand Name :
TOP
Voltage :
220V/380V/Others, 220V AC
Power :
200W
Dimension(L*W*H) :
Clients'
Weight :
Standard
Warranty :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas, Online support
Material :
Stainless steel or customized
Filter element :
wedge wire
filtration openning :
0.015-15mm
Filtration Precision :
50-500μm
Housing wet part material :
304/316L/CS
Housing seal materia :
NBR/VITON(FKM)
Brand :
TP
Product name :
Self cleaning Filter
After Warranty Service :
Video technical support, Online support, Field maintenance and repair service
Local Service Location :
Philippines, India, Russia, Malaysia
Certification :
ISO 9001:2008
Packaging Details :
self-cleaning filter will be packed in wooden case.
Port :
Shanghai, Chengdu every main port
Supply Ability :
1000 Set/Sets per Month TPA Scraping Brush automatic self cleaning filter
Price :
$500.00 - $5,000.00/sets
MOQ :
1pc
Description

Scraping Brush automatic self cleaning filter

Automatic self-cleaning water filter is the high efficiency scraping self-cleaning filter independently developed by TOP. Filtration ranging from 50-500 micron. It can avoids extruding and breaking the impurities and is capable of the filtration for water and liquids of viscosity up to 800000cps.

Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter

Self cleaning Features

  • Automatic 24-hour on-line filtration, no frequent changing out and cleaning
  • No disposable filter media consumption, save filter media cost and environment cost
  • Stainless steel scraping blade, good impurity removing performance
  • Top quality V-SLOT filter element, accurate slots, extremely smooth, easy to scrap
  • Very low pressure drop, stable flowrate, save energy consumption
  • Back-flushing function can be added to help clean the filter element
  • Close filtration, no dangerout liquid leakage, good for safe production
  • Discharge waste liquid with high impurity concentration, avoid valuable liquid loss
  • Various modular combination and automation modes available, meet different filtration needs

Technical parameters

General type code

TPX11/TPX22/TPX34/TPX75/TPX100/TPX136

product type

Automatic self cleaning filter

Liquid available

water and viscous liquids(<800000cps), impurity<1000ppm

Filtration Rating

50-500μm

Standard design pressure

1.0MPa,high design pressure available

Filter Area

1100/2200/3400/7500/1000/1.36 cm2

Volume

16/30/50/145/195/320 L

Design Temperature

0-200℃(determined by the seal material)

Cleaning differential pressure:

0.05MPa

Differential pressure instrument

differential pressure transmitter(DPT) or differential pressure switch(DPS)

Gear motor

180W, 3P,380V,protection class IP55, worm reduction gear

Housing wet part material

304/316L/CS

Scraping blade material

304/316L

Housing seal materia

NBR/VITON(FKM)

Filter element type

V-slot slotted metal filter element,316L

Discharging valve

Pneumatic ballvalve, protection class IP65

Facility Supply

380V AC,0.4-0.6MPa clean and dry compressed

V-slot Features

Slot Section of self cleaning filter

Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter

The Continuous slot screens are made of V-shape wire or wedge shape wire around an internal array of longitudinal support rods. Each jointpoint of these wire is fusion welded, the V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening. Therefore the screen allows water or oil to enter the well freely in ample quantities while keeps the majority of sand and gravel out of the well at the same time.

Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter

Self cleaing filter Continuous slot: support rods and longitudinal wire makes an opening which significantly increase the available opening area, and allow better access to the water flow.
Self cleaing filter High open area: reduce the water level, thus to save energy consumption. Meanwhile, high open area can make the groundwater enter the screen much slower than other filtration apparatus, which can avoid sand from entering screen due to high pressure, hereby lowering pump wear down.
Self cleaing filter High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.

Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter

Common flow styles of different screens

Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter

Filter Structure Options

Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter

V-Shape slots: V-Shape wire gives inwardly widening V-shape slots

Self cleaning filter Working Principle

The liquid enters the filter from the inlet(1), flows through the filter element(6) from outside to inside. The filter element bottom is connected to the outlet(2), through which the liquid flows out. After the filter element captures the impurities, the cleaning action is trigger by the preset time or differential pressure value. The gear motor(4) drives the scraping blades(7) to rotate and remove the impurities on the filter element outside surface. The impurities moves off along the blades and falls down to the filter bottom. The rotating plates push the gravity impurities into the collection chamber(5). The impurities are collected at the filter bottom and in the collection chamber. The discharging valve open per the preset time and discharging the waste liquid with high impurity concentration through the drain outlet(3), the purged liquid can be reclaimed if necessary.

Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter

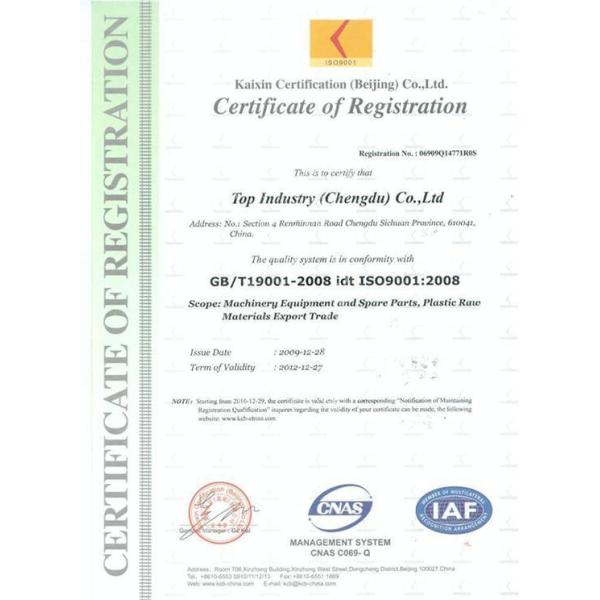

Certificate

Advanced 0.015-15mm Clients' Filtration Scraping Brush Automatic Self Cleaning Filter

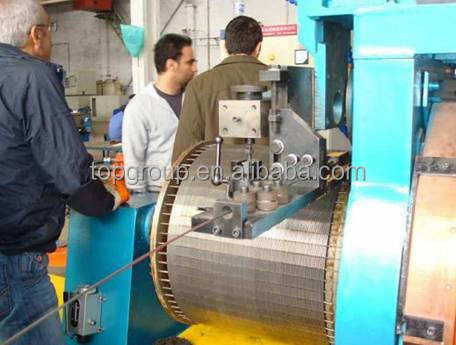

Client Visit
