Specifications
Condition :
New
Applicable Industries :
Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location :
Indonesia, Pakistan, India, Chile, Bangladesh
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Core Components :
Gearbox, Motor, PLC
Place of Origin :
Sichuan, China
Brand Name :
TOP
Material :
container, Stainless Steel
Weight :
1000kg
Size :
1000mm*1500mm*1200mm
Power :
2..02
Warranty :
1 Year, 1 year
Productivity :
95%
Weight (KG) :
2500 kg
Supporting equipment :
Auto Dosing Equipment, Sludge dewatering machine, Sludge pump
Type :
Water Filter Parts
Color :
Grey
Function :
Solid-liquid Separation
Certification :
ISO9001:2008
Capacity :
1-200m3/h/set
Application :
Textile and dyeing, paper mill, municipal, dairy plant, food, etc.
Voltage :
380V /Customized
Packaging Details :
Standard package
Cheap Factory Price DAF Dissolved Air Flotation System
Port :
Shanghai/Shenzhen
Supply Ability :
30 Set/Sets per Month Cheap Factory Price DAF Dissolved Air Flotation System
Price :
$8,999.00/sets 1-4 sets
MOQ :
1pc
Description

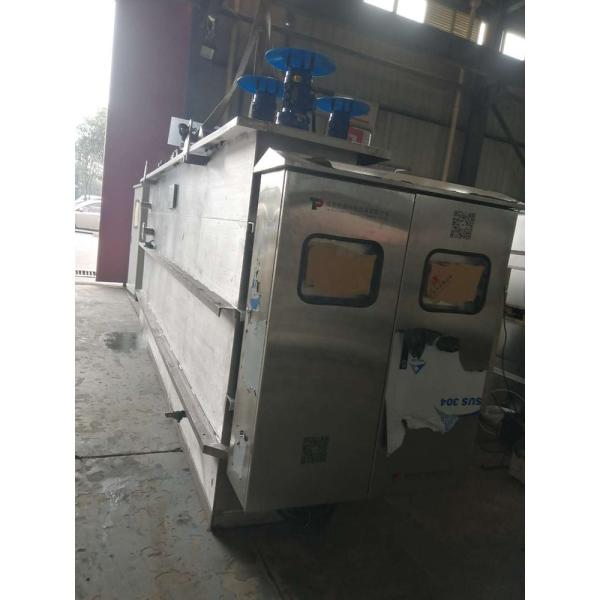

TPNF Micro Nano Dissolved Air Flotation Machine

Product Description

TPNF Micro Nano Dissolved Air Flotation Machine consists of air floatation tank, micro nano system, scraping device (combined, driving and chain plate according to user needs) and electric control cabinet. In the water supply and drainage treatment process, solid and liquid separation technology and machine are one of the key projects. Air flotation is one of the most effective methods for the removal of tiny suspended particles with a specific gravity close to that of water.

Bubble Filtration Water Device for Large-Scale Sewage Filtration Construction Site

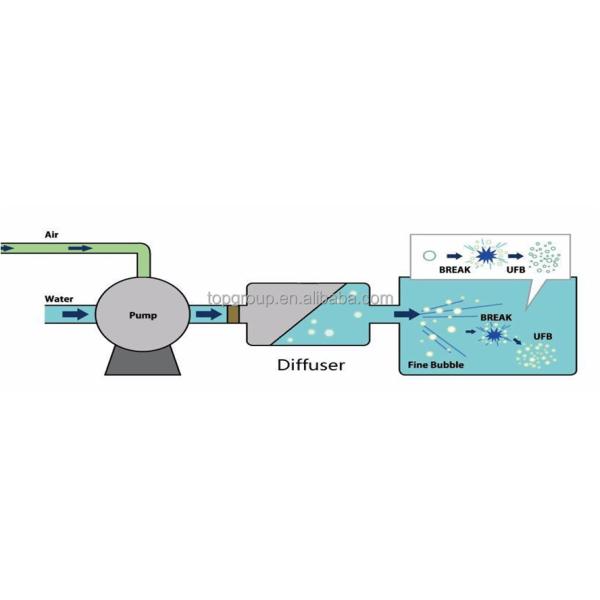

Dissolved Air Flotation Machine Working principle

Bubble Filtration Water Device for Large-Scale Sewage Filtration Construction Site

Dissolved Air Flotation Machine Advantages

  • SS remove rate can reach more than 95%

  • The clean water treated by TPNF is then filtered through a special structure filter element to achieve ultra-clear water

  • Compact design, easy maintenance, and short maintenance time.

  • The operating cost is low and small chemical use amount

Dissolved Air Flotation Machine Process control

Bubble Filtration Water Device for Large-Scale Sewage Filtration Construction Site

Models and Tips

Model

Capacity

(m3/h)

Volume of dissolved air water

(m3/h)

Main Power

(kw)

Aerated motor

(kw)

Scraper

(kw)

Total Power

(kw)

TPNF-1

0.5-1

0.3-0.5

0.55

0.55

0.18

1.28

TPNF-2

1-2

0.5-0.8

0.55

0.55

0.18

1.28

TPNF-3

2-3

1-1.5

1.1

0.55

0.37

2.02

TPNF-5

3-5

1.5-2

1.1

0.55

0.37

2.02

TPNF-10

5-10

3-4

1.5/5.5

0.75

0.37

2.62/6.62

TPNF-15

10-15

4-5

2.2/5.5

0.75

0.37

3.32/6.62

TPNF-20

15-20

5-7

2.2/5.5

0.75

0.37

3.32/6.62

TPNF-30

20-30

8-12

5.5

0.75

0.37

6.62

TPNF-40

30-40

10-15

5.5

0.75

0.37

6.62

TPNF-50

40-50

15-18

7.5

1.5

0.37

9.37

TPNF-60

50-60

18-20

7.5

1.5

0.37

9.37

TPNF-70

60-70

20-25

11

2.2

0.55

13.75

TPNF-80

70-80

25-30

11

2.2

0.55

13.75

TPNF-100

80-100

35-40

15

2.2

0.55

17.75

TPNF-150

120-150

40-50

15

2.2

0.55

17.75

TPNF-200

180-200

70-80

22

4

1.1

27.10

Customer Visitations

With our consistent effort,Our machinery is supplied to more than 30 countries including the Russia,Pakistan,India,Argentina,Indonesia,Romania,Canada,Turkey,Vietnam and other countries. Also participate in the exhibitions of urban sewage treatment, wastewater treatment, textile, leather, chemical and other industries.
