20-30tons Short Cycle Hot Press Laminating Line for Furniture Board
20-30tons Short Cycle Hot Press Laminating Line for Furniture Board
20-30tons Short Cycle Hot Press Laminating Line for Furniture Board
20-30tons Short Cycle Hot Press Laminating Line for Furniture Board
Specifications
Place of Origin :
Sichuan, China
Model Number :
LAMINATION LINE
Condition :
New
Type :
Hot Press Machine
Brand Name :
TOP
Voltage :
220V/380V
Dimension(L*W*H) :
according
Warranty :
One Year
Weight :
20-30tons
After-sales Service Provided :
Engineers available to service machinery overseas
Power :
37KW-100kw
Certification :
CE ISO9001
Application :
Short Cycle Melamine Laminating
Packaging Details :
Usually packed by wood box and by sea shipment
Port :
Shanghai.
Supply Ability :
50 Set/Sets per Year
Price :
$10,000.00/sets >=1 sets
MOQ :
1pc
Description

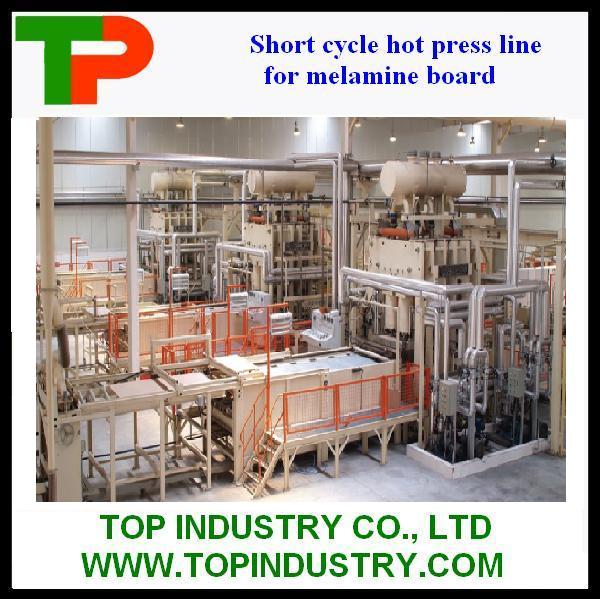

Short Cycle Hot Press Laminating Line for Furniture Board

Usage:

The short cycle press line is widely used in the industries of wood processing,building material decoration etc.,applying to lamination processing of particleboard,MDF and melamine impregnated paper and lamination processing of high-strength laminate flooring aluminum oxide wear-resisting paper.

Standard sizes are: 4'× 8', 4’× 9', 4’× 10', 4’× 16', 5’× 10', 6’× 8', 7’× 9', 6’× 12'etc. Special sizes can also be made according to customers’ need.

Nominal Pressure: 700-3200 tons,pressure can be customized.

Production Capacity:60-150 pieces/hour

20-30tons Short Cycle Hot Press Laminating Line for Furniture Board

Product Feature:

1.Thed hot press adopts frame strcture and overhead hydraulic cylinder.The machine is also equipped with variable frequency timing in-feeding conveyor and out-feeding roller frame or automatic out-feeding device.The machine is controlled by PLC and the advantage is easy operation, convenient installation and maintenance, little land occupation, low cost and high yield (1200 pieces/day). If needed, we could provide other accessories such as all kinds of cushion mat and mould plate, thermal oil boiler etc.

2.The configuration is flexible and variable.There are several kinds of hot press with different configuration for alternative:simple type,standard type,semi-automatic type and full-automatic type production line.

3.Euipment of semi-automatic production line:it adopts machines to control the in-feeding board,hot pressing and out-feeding board.while it adopts labor to forming paper,edge-trmming,stacking board.It is the economic equipment.

4.Equipment of full-automatic production line:the whole production course is automatically controlled from feeding board,forming paper,pressing,edge-trimming,out-feeding board,cooling into stacking.It

greatly reduces the labor cost.Now it has been the first choice to user who has high requirements on automation degree.

20-30tons Short Cycle Hot Press Laminating Line for Furniture Board

Technical data of 4’TOP series production line:

Technical data

TOP9000-25

TOP11000-25

TOP12000-25

TOP11000-26

TOP12000-28

TOP15000-28

TOP15000-32

Final product size(mm)

(3-40)×1300 ×2500

(3-40)×1300 ×2500

(3-40)×1300 ×2500

(3-40)×1300 ×2600

(3-30)×1300 ×2800

(3-30)×1300 ×2800

(3-40)×1300 ×3150

Power(KW)

~38.5

~38.5

~38.5

~38.5

~38.5

~45.5

~65

heatconsumption(kcal/h)

25×104

25×104

25×104

25×104

30×104

30×104

30×104

Compressed

Air

consumption(m3/min)

~0.6

~0.6

~0.6

~0.6

~0.6

~0.6

~0.8

Total pressure(KN)

8000

11000

12000

11000

12000

15000

15000

Specific

pressureofworkpiece(kg/cm2)

26.5

34

40

32.5

33

41.5

41.5

Size of hot platen(mm)

1400×2600

1400×2600

1400×2600

1400×2750

1400×2960

1400×2960

1460×3300

Mail oil cylinder(diameter×stroke)(mm)

φ260×300×6

φ300×300×6

φ320×300×6

φ300×300×6

φ320×300×6

φ360×300×6

φ280×300×6

Lifting cylinder(diameter×stroke)(mm)

φ90×300×2

φ90×300×2

φ90×300×2

φ90×300×2

φ90×300×2

φ100×300×2

φ100×300×2

Overall size(mm)

19500×4800
×4100

19500×4800
×4100

19500×4800
×4300

21500×4800
×4300

21500×4800
×4400

21500×4800
×5300

28000×5300
×4350

Total weight (kg)

~36000

~45000

~50000

~45000

~52000

~55000

~60000
