Specifications
Place of Origin :
Sichuan, China
Product Type :
Other
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
6 Months
Core Components :
PLC, Motor, Gear
Brand Name :
TOP
Voltage :
380V
Power :
4~90KW
Weight :
1000
Dimension(L*W*H) :
Standard
Warranty :
12 Months
Key Selling Points :
Competitive Price
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food & Beverage Shops
Showroom Location :
Egypt, Viet Nam, Philippines, Peru, Saudi Arabia, Pakistan
Application :
Liquid Solid Separation
Material :
Stainless Steel
Function :
Liquid Liquid Soild Centrifge
Keyword :
Centrifge
discharge type :
scroll discharge
Model Number :
TPLW
machinery :
separation centrifuge
operation :
automatic continuous operation
centrifuge type :
decanter centrifuge
Name :
TPLW 3 Phase Sludge Dewatering Decanter Centrifuge
Packaging Details :
TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for oil
Wood carton
Port :
chengdu
Supply Ability :
50 Set/Sets per Month
Price :
$50,000.00/sets
MOQ :
1pc
Description

TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for oil

4-90KW TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for Oil Waste Water on Farms

Working Principle and Selection of Centrifuge

The horizontal decanter centrifuge is developed and improved by our factory based on introducing foreign advanced technology.It is mainly used in solid and liquid separation of city wastewater, industrial wastewater, chemical, food, pharmaceutical, non metallic minerals and other similar production processes of different fields.

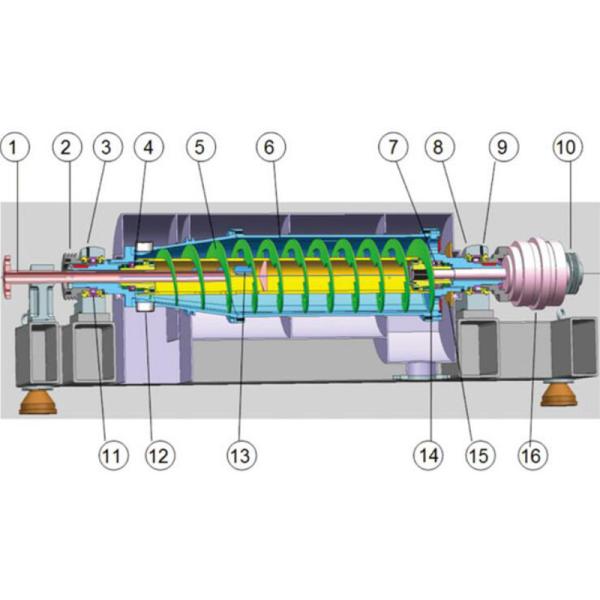

Structure:

4-90KW TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for Oil Waste Water on Farms

1-Feeding pipe;2-Main motor belt pulley;3-Main bearing oil injecting nozzle;4-Bearing of screw;5-Spiral vane;6-Rotary drum;7-Bearing of screw;8-Main bearing;9-Main bearing oil injecting nozzle;10-Secondary motor belt pulley;11- Main bearing;12-Solid discharge;13-Outlet;14-Liquid discharge;15-Liquid baffle;16-Differential;

4-90KW TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for Oil Waste Water on Farms

4-90KW TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for Oil Waste Water on Farms

Selection table for specifications and technical parameters of decanter centrifuge

Remark:In order to accelerate the progress of science and technology, the company reserves the right to change the size, and its subject to the goods supplied.

4-90KW TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for Oil Waste Water on Farms

Working principle:

The suspension, through the feeding pipe 1, goes from the outlet 13 into the drum 6.Under the centrifugal force generated by high-speed rotation, the solid particles of large proportion deposited on the inner wall of the drum, the spiral vanes 5, performing relative movements with respect to the drum, continuously scrap the solid particles deposited on the drum wall and rolled to solid discharge 12. After-separation clear flow out through opening 14 on liquid layer adjusting plate. The relative movement between the spiral vanes and the drum is called differential rotation, which is realized by the differential 16. Its scope is controlled by secondary motor, thus realizing the continuous separation process of centrifuge.

Product advantages(Product performances):

Good adaptability: All kinds of special requirements of raw material and technique on centrifuge are fully considered in the design. the main function parts are improved in speciality and adjustability. As long as users explain the location of their installation, physical and chemical characteristics and process requirements, we will provide users the most suitable models.

High degree of automation

Good running stability: The differential used by centrifuge is second-stage involute planetary gear differential, which adopts the unique low oil level operation technology of our factory, with low working temperature, large transmission torque and reliable performance.

Strong technique:The centrifuge adopts dual motors, double frequency conversion energy feedback differential speed system, which can realize flexible speed regulation and online intelligent control for differential speed, and adjust differential speed at any time according to the change of material.

Corrosion resistance:drum , screw body, hood and other parts contacting with material are made of high quality stainless steel

Good operating environment

Complete safety protection device: Torque protection, power control, vibration and temperature measurement and other multiple protection.

Good appearance

Package

4-90KW TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for Oil Waste Water on Farms

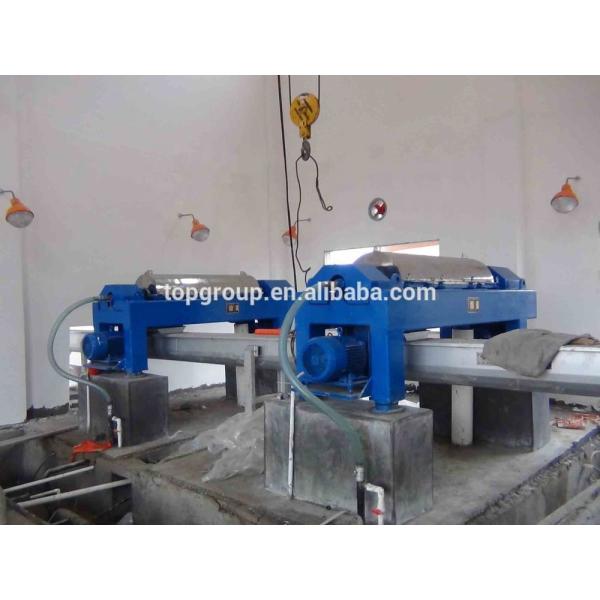

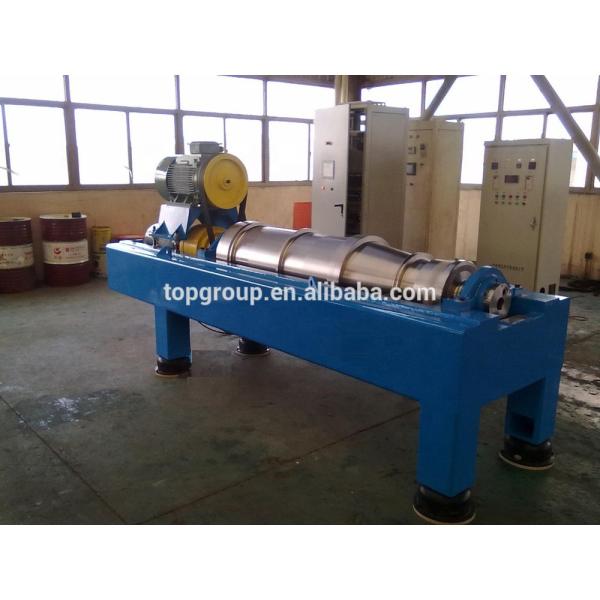

Factory

4-90KW TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for Oil Waste Water on Farms

Contact information

Jessie

=====================================
Top Machinery (Chengdu) Co.,Ltd
Top Industry (Chengdu) Co., Ltd
Top Environment Machinery (Chengdu) Co., Ltd
=====================================

Tel: 0086-28-85288976/85288996/85288896/85135597

Fax: 0086-28-85288976

Emergency call: 0086-18381662193

Websites: www.filter-screens.com http://www.topindustry.com/

E-mail: grouptop010 at gmail.com
