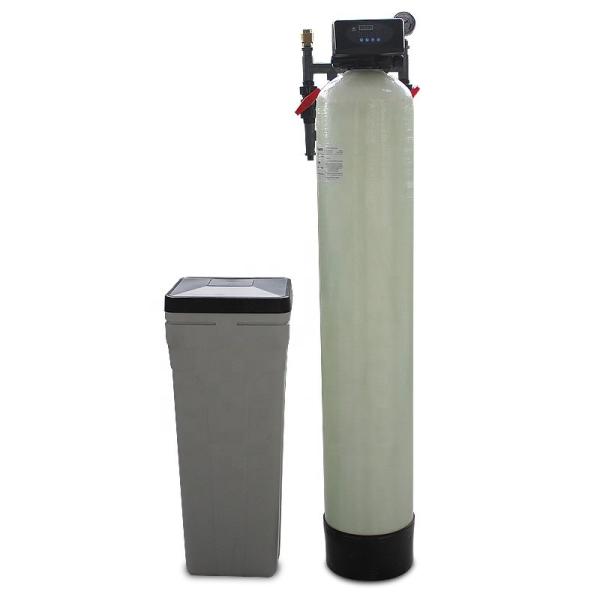

Industrial Nature Soft Water Softener / Automatic Water Softener 3W-40W

Andorra purely water FRP Water softener Manufacturer FRP Water softener Manufacturer

1. Principal: Industrial water softener for water treatment

When raw water with rigid ion passing resin in the exchanging cylinder, Ca2+,Mg2+ in water is exchanged and absorbed by Na+ in resin, wiping off Ca2+,Mg2+ and carbonate or non carbonate rigidity, is called softened water. The resin must be regenerated after absorbing some Ca2+,Mg2+, regeneration is washing resin layer using brine in salt box. Na+ in salt water exchange the rigid ion of resin into water, then discharged with regeneration liquid off the cylinder, recovering exchanging capacity, and continuously softening water.

Industrial water softener allows water equipment (boiler, radiators, water heaters, solar, etc.) will never scale, congestion and make it has a longer life. Put an end to security risks and equipment loss. Bathroom facilities(Glass shower room, mirror, bathtub, toilet, etc) use soft water, it will no more difficult to clean up the white stains and rust spots.In life we can save a lot of energy and trouble, and lady commonly used soft water bath have a good cosmetic effect.

Industrial water softener is belongs to daily using water, can not get rid of impurities, bacteria, viruses and heavy metals in the water. And its main function is softened water, not directly for drinking, general it need to use with drinking machine (Water purifier), so that to settle the problem of drinking water.

2. Features: Industrial water softener for water treatment

(1) Easy installation and low maintenance

(2) Long life and great performance

(3) Manual Valve or Fleck Valve available

(4) SS Jacket available

3. Applications: Industrial water softener for water treatment

(1) Make-up water for boilers

(2) Cafeteria-food service

(3) Classroom Labs

(4) Cooling towers

(5) Pools Ice Machines

(6) Vending machines

(7) Fountain Service

(8) Drinking water

(9) Facility Use

(10) Vehicles Wash

JM-Fleck valve system selection table(only for reference):

GB/T18300—— definitions and terminology (continued)

downstream regeneration fixed bed: when running and regenerating, both the water flow and the regenerated liquid are top-down exchangers through ion exchange resin layers.
Countercurrent Regeneration Fixed Bed: The water flows from top to bottom through the ion exchange resin layer during operation, and the regenerated liquid flows from bottom to top through the ion exchange resin layer exchanger.
Floating bed: When running, water flows from bottom to top through the ion exchange resin layer, which is suspended in the upper part of the exchanger because of the action of the upward flow.

GB/T18300—— technical requirements

A , exchanger machine requirements

exchanger design for industrial water softening treatment shall comply with GB/T 50109 requirements. Switch design documents shall include at least design drawings, process design calculations, installation instructions, the design unit shall be responsible for the correctness and completeness of the design documents.
exchanger design pressure shall not be less than 0.6 MPa.
The height of the ion exchange resin layer in the exchanger shall be determined according to the operation period, raw water quality and effluent quality requirements. The height of fixed bed ion exchange resin layer for soft water treatment of industrial equipment should not be less than 800 mm; and the height of floating bed ion exchange resin layer should not be less than 1200 mm..
the downstream regeneration and countercurrent regeneration fixed bed ion exchanger shall have a 40%~50% backwash expansion height of the resin height; the floating bed shall have a water cushion of 100~200 mm.
The upper and lower water distributor should be installed in the exchange tank, and the water distribution should be uniform and do not produce bias flow.

Choose different levels according to your situation
