Fully Adjustable Fleck Water Softener Head / Fleck 2750 Valve Warranty 3 Years
Fully Adjustable Fleck Water Softener Head / Fleck 2750 Valve Warranty 3 Years
Fully Adjustable Fleck Water Softener Head / Fleck 2750 Valve Warranty 3 Years
Fully Adjustable Fleck Water Softener Head / Fleck 2750 Valve Warranty 3 Years
Fully Adjustable Fleck Water Softener Head / Fleck 2750 Valve Warranty 3 Years
Fully Adjustable Fleck Water Softener Head / Fleck 2750 Valve Warranty 3 Years
Fully Adjustable Fleck Water Softener Head / Fleck 2750 Valve Warranty 3 Years
Fully Adjustable Fleck Water Softener Head / Fleck 2750 Valve Warranty 3 Years
Fully Adjustable Fleck Water Softener Head / Fleck 2750 Valve Warranty 3 Years
Fully Adjustable Fleck Water Softener Head / Fleck 2750 Valve Warranty 3 Years
Specifications
Brand Name :
FLECK (ASSEMBLY IN CHINA)
Model Number :
2750FT
Certification :
NSF
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500 sets per month
Delivery Time :
3 to 5 working days
Packaging Details :
Carton packaging
Temperature :
34° - 150° F
Pressure Hydrostatic :
300 psi Working:20 - 125 psi
Medium :
water
Service life :
8-10 years
Electrical Rating :
24V,110V,220V - 50Hz, 60Hz
Description

Warranty 3 years fully automatic FLECK filter softening multichannel control valve one level agent

Product Description

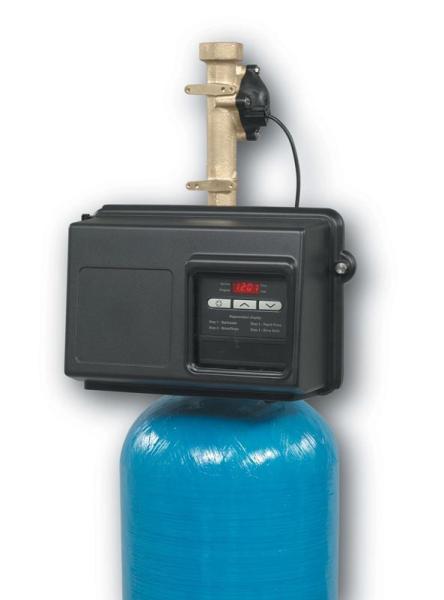

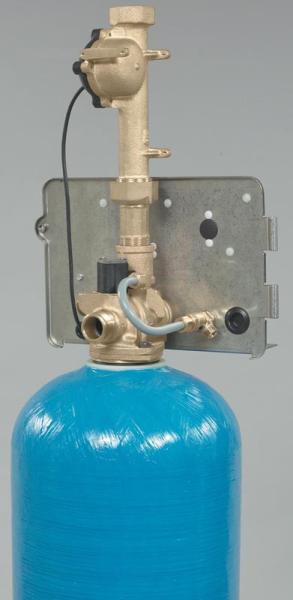

Name:Fleck valve 2750 1" Commercial Control Valve
Features:
1. Suitable for large residential/light commercial applications
2. Fully adjustable, 5-cycle control delivers controlled up-flow backwash, down-flow brining and slow rinse, rapid rinse, timed brine refill and down-flow service
3. Backwash capacity handles tanks up to 24" diameter
4. Mechanical control (7- or 12-day clock or metered initiated regeneration)
5. Valve body is solid, lead-free brass
6. No hard water bypass
7. Time tested, hydraulically-balanced piston, seal, and spacer concept to pilot service flow and regeneration
Options
1. Backwash filter
2. Hot water (time clock 180 F, meter 150 F)
Meter-initiated regeneration
3. Manual operation
4. Service valve operator
5. No hard water bypass(Down Flow)
6. Upflow can choose injector(1600 or 1700 Injector)
7. Electronic timer, SE, XT, 3214NXT, or 3200NT
8. Environmental cover
9. Auxiliary switches
10. Auxiliary switch

Fully Adjustable Fleck Water Softener Head / Fleck 2750 Valve Warranty 3 Years
Fleck Valve 2750 Specifications

Valve material onleaded brass
Inlet/Outlet pipe diameter 1 NTPM
Regenerative process 5

Range of flow (0.35MPa Inflow pressure)

Continuous water inflow (0.1MPa drop) 5.9 m3/h
Peak water inflow (0.175MPa drop) 7.5 m3/h
Cv 6.8
Back-wash flow (0.175MPa drop) 5.68 m3/h

Regeneration

Down/Up flow Both are suitable
Program regulation All regeneration steps can be accommodation
Maximum regenerative time

Motor control:164 per cycle
SE control: 0-99 minutes
NT,ET control:0-999.9 minute
Systemax control:0-999.9 minutes

Meter

Accuracy

3/4 :0.056-3.4 m3/h 5%
1 :0.159-9.09 m3/h 5%
Capacity options

Motor: Standard:1.17-19.95 m3
Extended:5.86-99.74 m3
SE: 0-37.83 m3
ET: 0-37852.11 m3
Systemax:0-378521.15m3

Main size

Central line diameter 1.05 O.D.
Drain line diameter 3/4 O.D.
Brine line diameter 3/8 &1/2
Base diameter 2-1/2 -8NPSM
Height from top of tank 6-1/2
Suited base diameter

Soften:10 24
Expect filter:10 21

Additional Information

Regenerative system 3/8 -1610, 3/8 -1665, 1/2 -1700
Electrical rating 24V,110V,220V-50,60Hz
Maximum power 74W
Estimated shipping weight

Time clock:13 Ibs
Metered valve:26 Ibs
Pressure

Designed:2.1MPa
Operating:0.14-0.84MPa
Operating Temperature 34 -110 F(10 -43 C)
* It has been proved as safe drinking water device material.

Application of fleck valve 2750:
Fully Adjustable Fleck Water Softener Head / Fleck 2750 Valve Warranty 3 Years
Other components for fleck valve 2750:
Fully Adjustable Fleck Water Softener Head / Fleck 2750 Valve Warranty 3 Years
Packaging & Shipping for fleck valve 2750:
Fully Adjustable Fleck Water Softener Head / Fleck 2750 Valve Warranty 3 Years

Standard export carton packing.

DELIVERY TIME:

7-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
