Specifications
Place of Origin :
China
Brand Name :
Reliable
Certification :
ISO CE SGS TUV
Model Number :
Turn Key Project
MOQ :
1 Set
Price :
USD40000-50000/set
Packaging Details :
wooden box
Delivery Time :
30-45 days
Payment Terms :
T/T L/C
Supply Ability :
30sets/month
Warranty :
1 Year
Filling material :
Liquid
Bottle Size :
0.2-2L
Application :
Beverage
Condition :
New
Material :
SUS 314 / 316
Description

Bottling Filling Machine Complete Production Line Automatic Bottling Machine


Reliable machinery can provide turn key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.We will carry on trying our best to meet the demands of our customers continually and seek for development together with our customers.

2000BPH Semi Auto Mineral Water Bottle Production Line
Semi auto bottle blowing machine
Water treatment system
3 in 1 washing filling capping machine
Light checker
Inkjet printer
Semi auto sleeve labeling machine
Semi auto PE film wrapping packing machine
Conveyor system
Electric system

2000BPH Bottle Water Plant Workshop Layout for your reference

------ Workshop Size: 8 meter*20 meter

Bottling Filling Machine Complete Production Line Automatic Bottling Machine

Name: semi auto Bottle blowing machine
Usage: Making PET/Plastic bottle by preform
Bottle volume: 100-2000ml
Parts: PET bottle Main machine > High pressure air compressor> Low pressure air compressor> Refrigerated air dryer> Air filter> Air storage tank > pipes and valves> Water chiller > Tool box> Mould > spare parts

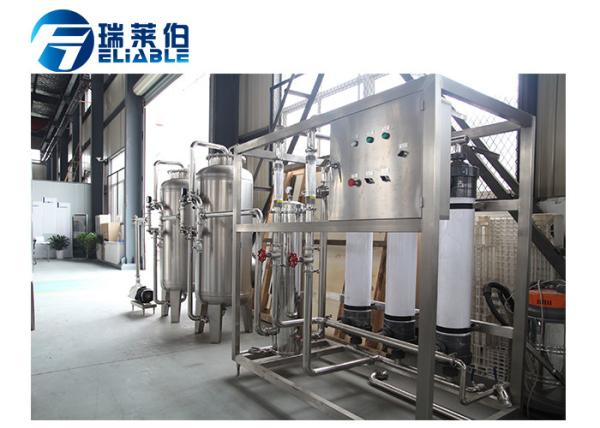

Name: UF water treatment
Usage: Producing pure water
Parts: Sand Filter > Softener> Active Carbon Filter > Dosing device> Precision Filter > Cleaning device> Hollow Filter > Tank> UV sterilizer > Pump> Ozone Generator > Motor> Pipes and valves

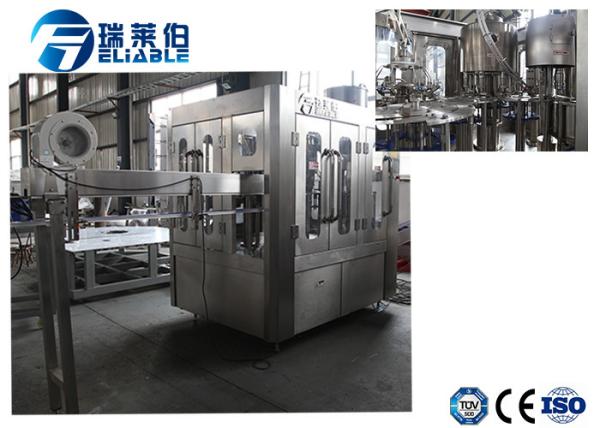

Function: 3 in 1 rotary type+bottle neck click+gravity filling+torque force capping

Bottling Filling Machine Complete Production Line Automatic Bottling Machine
Washing part
>> Water distributor, bottle clamp, upturn plate, guide rail, protection cover, spraying device.
>> All food grade SUS304/316 design.
>> Effectively clean bottle and save water.
>> Resting waiting for water drops.

Filling part
>> Filling valve, guide rail, elevating device, etc.
>> Gravity filling method.
>> Filling volume adjustable.
>> All food grade SUS304/316 design, harmless for beverages and easy to clean.

Capping part
>> Cap unscrambler, cap drop rail and capper.
>> Place & capping system.
>> Minimum bottle crash during capping.
>> No bottle no capping.
>> Automatic stop when lack of bottle.

Air conveyor (Let empty bottles in.)

>> Ideal empty bottle conveying equipment.
>> Driven by wind, high conveying speed and low noise.
>> All food grade SUS304/316 design.
>> Ultra-high molecular polyethylene materials with low frictional resistance and high abrasion resistance.

Flat conveyor (Let filled bottles out.)

>> Designed by module, component can be interchanged easily, have flexibility to combine the bottle type according to the different capacity.
>> Both sides of the fence can be adjusted to make sure the bottle does not fall during delivery.
>> Customized layout according to customer's factory.

Name: semi auto sleeve labeling machine
Usage: shrink sleeve PVC label
Parts: Place the tag platform>Shrink tunnel>Steam generator

Name: Ink jet printer
Usage: Timing and counting printing
Parts: characters/languages/logos/fonts printing

Name: semi auto PE film wrapping machine
Usage: Wrapp packing the filled bottle with PE film
Parts: Bottle entering→ Auto unscrambling bottle→ Pushing bottle→ Heat sealing-Cool cutting →Pressing PE→ Shrink→ Cooling→ 3*4, 4*6, ect


Additionally, we also supply technique consultation, factory construction design plan, equipment installation and adjustment, technology training and other after sale services. Now our products are exported to over ten countries and regions, including Southeast Asia, Russia, the Commonwealth of the Independent States, Western Asia and South Africa.

Service & Customer Support :

At Reliable Machinery, our service department is staffed with highly-trained service technicians capable of providing installation services on new machines as well as scheduled preventative maintenance on your existing machinery.
No matter you’re looking for a single machine or a complete liquid packaging line.
Reliable Machinery’s experienced sales staff will work with you to find the right machine for your liquid packaging project.


Communication with customers

Q1: Are you a trading company or a manufactory?
A1: We own a factory ourselves, and we can assure the quality we manufactured.
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality after-service. Also we have one year warranty of the spare parts, free of charge.
Q3: When can I get my machine after I paid?
A3: We will deliver the machines on time as the date we agreed both side.
Q4: How can I install my machine when it arrives?
A4: We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5: How about the spare parts?
A5: After we deal down all the things , we will offer you a spare parts list for your reference.
