Specifications
Place of Origin :
China
Brand Name :
Reliable
Certification :
ISO CE SGS TUV
Model Number :
Turn Key Project
MOQ :
1 Set
Price :
Negotiatory
Packaging Details :
wooden box
Delivery Time :
30-45 days
Payment Terms :
T/T L/C
Supply Ability :
30sets/month
Electrical Brand :
Simens,ect
Warranty :
1 Year
Bottle Size :
0.2-2L
Material :
SS304/316
Automatic Grade :
Automatic
Condition :
New
Filling Capacity :
8000BPH
Description

Turn Key Project Bottling Filling Machine / Complete Production Line With CE

Decription

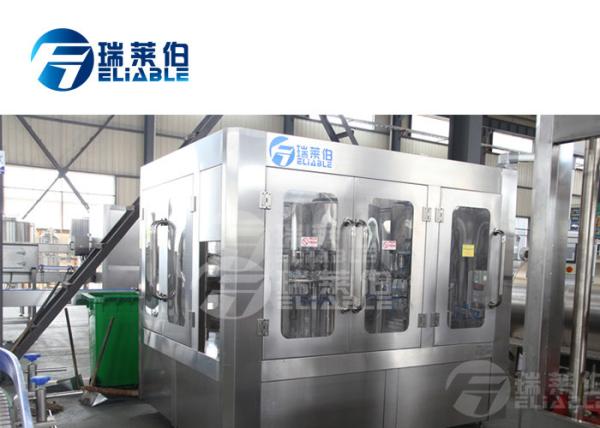

1.The machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device.

2.The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.

3.The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably. It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity.

4.On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum. The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an idea-preferred equipment for beverage makers.

Product description:
1) This is a turnkey project for drinking water treatment. We can offer you a whole solution from raw water treatment, through sterilization to packaging.
2) Our company can design customized mineral water production lines in accordance to the customers' requirements. The production capacity varies from 1000L/h to 10000L/h according to customer's need
3) Water treatment system -RO system:
Raw water-Raw water tank-Water pump-Silica sand filter-Active carbon filter-Sodium ion exchanger-Precision filter-Reverse Osmosis-Mixing tower-Water tank-Pump
4) Filling and Packing:

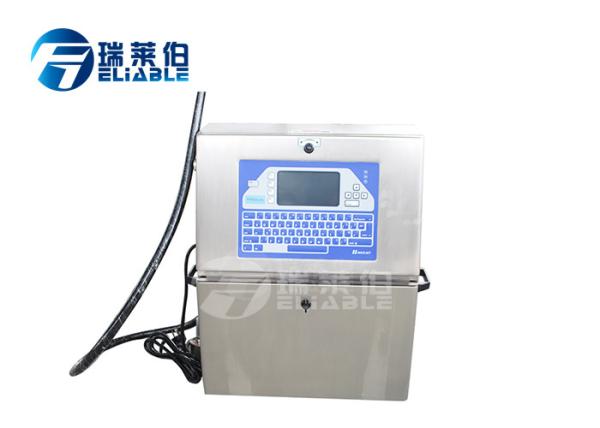

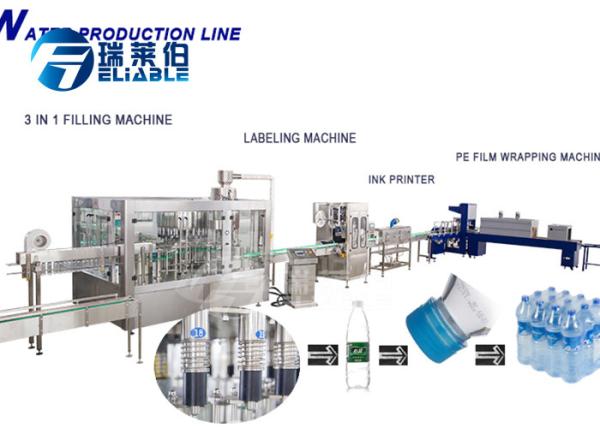

Bottle uploader-Air conveyor-Filling Monoblock(3-In-1 machine)-Conveyor-Light checker-Blow dryer-Labeling machine-Code sprayer-PE film packing machine-Pallet stretch wrapper-Stock
5) PET bottle making:
PET granules-Injection molding machine-PET prefomrs-PET bottle blow molding machine-PET bottles

Main specification data:

Model CGF12125 CGF18186 CGF24248 CGF323210 CGF404012 CGF505012 CGF606015 CGF808020

Number of washing,

filling and capping heads

 12-12-5 18-18-6 24-24-8 32-32-10 40-40-12 50-50-12 60-60-15 80-80-20

Production capacity(600ml)

(B/H)

 4000 7000-8000 10000-12000 12000-15000 16000-20000 20000-24000 25000-30000 35000-40000

suitable bottle

specification(mm)

 φ=50-110=170 330-2000ml

Washing pressure

(kg/cm 2 )

 2-3
Motor power(kw)

Main motor

2.2kw

Main motor

2.2kw

Main motor

3kw

Main motor

5.5kw

Main motor

7.5kw

Main motor

11kw

Main motor

15kw

Main motor

19kw

Overall dimensions

(mm)

2400×1650

×2500

2600×1920

×2550

3100×2300

×2800

3800×2800

×2900

4600×2800

×2900

5450×3300

×2900

6500×4500

×2900

76800×66400

×2850
Weight (kg) 2500 3500 4500 6500 8500 9800 12800 15000

After-service:

Well-trained & experienced staff are to answer all your inquiries in English and Chinese

• 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).

• 2 Years guarantee

• Your business relationship with us will be confidential to any third party.

• Good after-sale service offered, please get back to us if you got any questions.
