Specifications
Brand Name :
Reliable
Model Number :
CGF12-12-6
Certification :
CE/TUV/ISO/TUV
Place of Origin :
Jiangsu, China
MOQ :
1 SET
Price :
USD 15000 PC
Payment Terms :
L/C, T/T
Supply Ability :
15 sets for a month
Delivery Time :
30 days after receiving your sample bottles and caps
Packaging Details :
Wooden package
Capacity :
3000-4000BPH for 500ml
Power :
2.5KW
Control :
Touch Screen Control
Electrical Brand :
SIEMENS
Material :
SUS 304 with Food Stage
Bottle Volume :
200-2000ml
Voltage :
380V or by your order
Filling material :
Flowing Liquid Water
Description

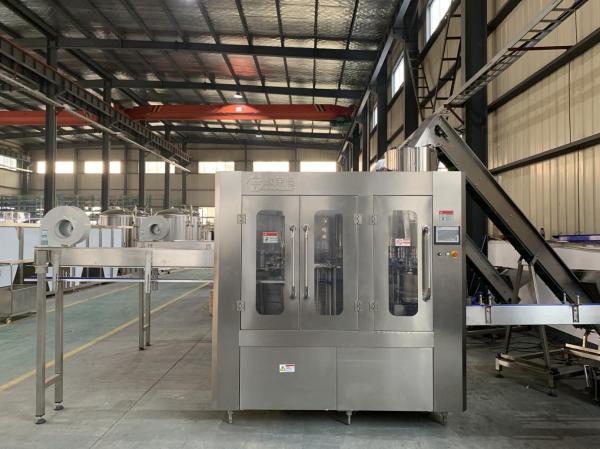

CE ISO Certification Automatic 0.2-2L Rotary Water Bottle Filling Machine For Non-Carbonated Filling

Outlook

Function :
(1) The water fillling machine has three functions for bottle rinser, filler and capper, which is composed in one body of the machine . The whole process is full automatic.

(2)Adopting air conveyor system with high efficient filters to feed bottle, this can keep the inside of the filling machine clean

With bottle neck holding in the whole course and protect bottle block device.

1.Washing station
The bottle is blew into the shifting wheel, when the flushing clamp reach the bottle neck, the jaw will clamp the bottleneck, under the guidance of the rail, the clamp will turn the bottle 180°into an upright position, through second bottle pusher into the filling position.

2.Filling station

The filling part is manly is consisting of a filling valve and filling transmission parts. The washed bottle reaches the filling position via the bottle shifting wheel. In the mean time, the bottle clamping plate of the filling machine will clamp the bottle and move up to seal the bottle, filling valve will open, send the liquid into the bottle. When the liquid level of the bottle reaches the trachea of the filling valve, the filling will stop.

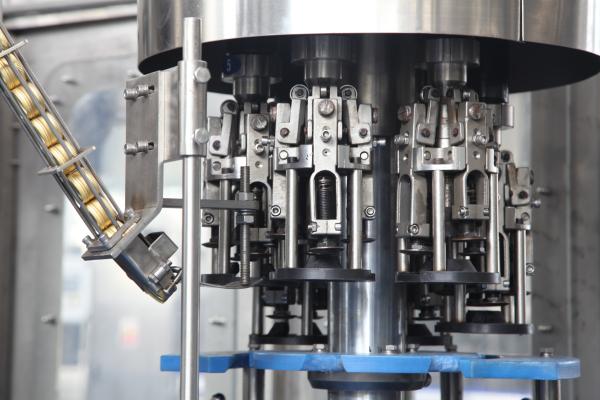

3.Capping station

The capping part is consisting of screw heads, capping transmission part, a sorting part and an under cover tube parts. The bottle which has finished filling will enter the capping position via the driving wheel. Bottles that have finished capping will be transported by the bottle pusher to the conveyor belt.

Introduction of mineral water filling machine

1.Machine realizes continuous rinser, filler, and capper in one machine. It is suitable for pure water, mineral water and drinking water.

2. It adopts advanced pressure filling with fast and precise filling. Material recirculating system is equipped to avoid contacting with material, second pollution and oxidation.

3. We adopt magnetic torque capping head,which is high efficiency and low reject ration.

4. No bottle no filling, no bottle no capping. Once the caps are lack, the machine will stop automatically.

CE ISO Certification Automatic 0.2-2L Rotary Water Bottle Filling Machine For Non-Carbonated Filling

Characteristic of mineral water filling machine
1.Automatic 3 in 1 Water Bottling Machine adopt Rinsing / Filling / Capping 3-in-1 technology, PLC control, Touch Screen, it is mainly made of SUS304 / SUS316.

2.Adopt bottle neck blocking technology, convenient to change the type of bottles.
3.High speed filling valve, avoiding drop leaking, accurate filling quantity.
4.Program logic controller(PLC), easy for changing size or modifying parameters.
5.Pneumatic elements are all famous brand, such as Mitsubishi, OMRON, SIEMENS,stability and reliability.
6.Photo-electric sensing and pneumatic linking control, automatic protection for shortage of bottle.
7.Pneumatic executive control valve, high efficiency and safety.
8.The machine is designed according to requirements of buyer's.

Technical Parameter:

Model

CGF8-8-3

CGF12-12-6

CGF18-18-6

CGF24-24-8

CGF32-32-10

CGF40-40-10

Washing No.

8

12

18

24

32

40

Filling No.

8

12

18

24

32

40

Capping No.

3

6

6

8

10

10

Production capacity (500ML)

2000

3000-4000

6000-8000

10000-12000

12000-15000

15000-18000

Installed Capacity(kw)

3

3.5

4

4.8

7.6

8.3

Overall size

2250*1800*2400

2450*

1800*2400

2650*

1900*2400

2900*

2100*2400

4100*2400*2400

4550*2650*2400

What service Reliable Machinery Co.,Ltd can supply you ?

Inspections
We have our own engineer department in our factory to make sure that all our products are in very good quality before ship out to our customers.

The Sample Service
1.We can send you the all videos of the running machine.


2.You are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.


3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information,you can go to visit their factory.

Customized Service
1.We can design the machines according your requirements(material,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.


2. We can propose some professional suggestion when you begin this project, such as draw the factory layout for you,analyze the source water report.

After-Sales Service
1.We will provide the bill of load on time to make sure you can get the machine quickly.


2.When you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.


3.We ask feedback from our customer and offer help when the production line have been used for some time!


4.We provide one year warranty with spare parts free.

Details Picture is for your reference
