Description:

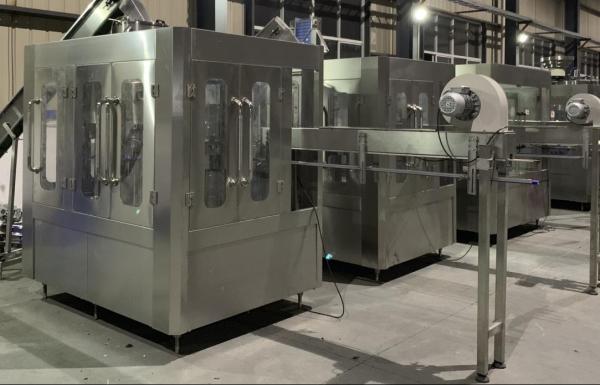

is suitable for packing beverage cintaining gas. Its performance is as following: All parts, for instance, filling value, which directly contact medium are made of stainless steel. So conform to the requirements of Food sanitation. Sealing parts are made of heat-proofing rubber, in order to meet the techique requirement of users to sterilize the whole machine at high temperature. Using programmable controller to realize fully zutomatic control from bottles entering to finishing packing. Using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements. Adopting balanced pressure filling principle and spring valvers in order to assure beverage quality. Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quelity.

Feature

1) Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape is not changed because of adopting hanging clamping bottle neck way.

2) Adopting clamping bottle neck way to wash bottle mouth and avoid touching screw mouth, adopting clamping bottle neck way in the whole conveying process. When bottle type changes, you only need to change the board related with bottle diameter.

3) Opening valve is driven by cylinder. High filling speed and mass flow rate, high precision of filling value and control of liquid level is accurate and without loss.

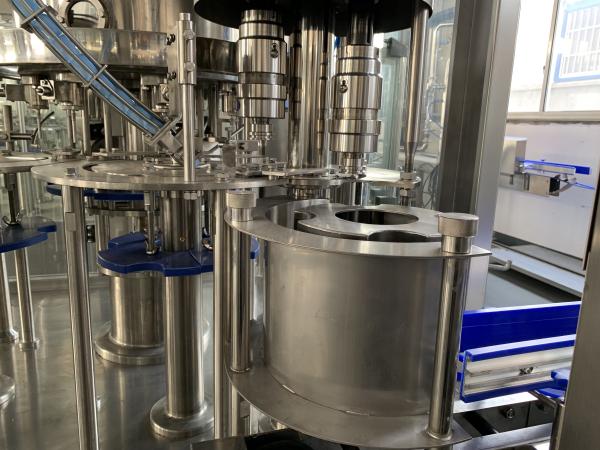

4) The capping system applies advanced French technology, when clamp the cap will immediately and magnetic torque type capping head

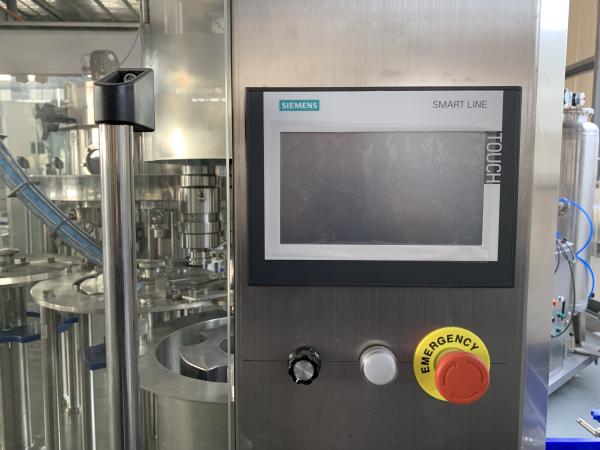

5) The PLC and transducer are chosen from international famous brand, such as OMROM, MITSUBISHI and so on.

Functions: rinse the empty pet bottle

Features:all 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean

304 stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

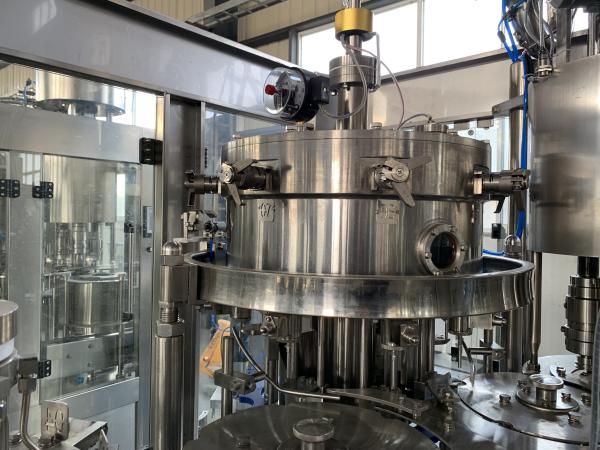

Functions: filling the rinsed bottle
Features: filling temperature is adjustable.
all 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

Model

CGFD 8-8-3

CGFD 16-12-6

CGFD 18-18-6

CGFD 24-24-8

CGFD 32-32-10

Rinsing Head No

8

16

18

24

32

Filling Head No

8

12

18

24

32

Capping Head No

3

6

6

8

10

Rated Capacity

1200-1500BPH

2500BPH

3500-4000BPH

7000-7500BPH

8000-10000BPH

Overall Size

2000*1600*2300mm

2200*1600*2300mm

2450*1900*2300mm

2750*1180*2400mm

4000*2300*2300m

Weight(Kg)

2T

2.2T

3.0T

4.0T

8.0T

Power(KW)

3KW

3.5kw

4.0kw

4.8kw

7.6kw

Rated Voltage(V)

380V

380V

380V

380V

380V
