Specifications
Brand Name :
Reliable
Model Number :
CGF32-32-8
Certification :
CE&ISO&TUV&SGS
Place of Origin :
China,JiangSu,Zhangjiagang
MOQ :
1 set
Price :
28000-32000
Payment Terms :
TT & L/C
Supply Ability :
20 Sets Per Months
Delivery Time :
30 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package
Machine Material :
SUS304/316
Packing Material :
Wooden Case
Machine Color :
Sliver
Filling Material :
non gas liquid
Function :
washing filling capping
Bottle Type :
PET Bottle
Processing Types :
Gravity Filling
Bottle shape :
Customized Bottle Shape
Description

Purified Liquid Bottle Water Bottling Equipment Full Automatic Low Consumption


Quick Detail:

Name: CE Certification Mineral Water Bottle Water Filling Machine Fully Automatic
Capacity: 12000-15000bph
Material: Food stage stainless steel
Control: PLC & touch screen control
Suitable Bottle: PET Plastic bottle
Bottle Volume: 300ml-2000ml
Dimension: Customized
Function: washing filling capping 3 in 1
Technology: Advanced
After-sales service provided: Engineers available to service machinery overseas .

Description:

The mineral water 3 in 1 bottle machine can carry out washing bottle, filling and capping one machine. The whole machine designing is reasonable. The appearance is beautiful and the maintenance is convenient. It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and easier. The main machine adopts advanced PLC control technology. The key electric elements are adopting international famous products. The mineral water 3 in 1 bottle machine applies bottle handling technical and the filling valves go up-down when filling, which make sure the bottle filling goes stable, reliable during high speed. The bottle handling technical also make the different bottle changing easily without changing too many accessories.

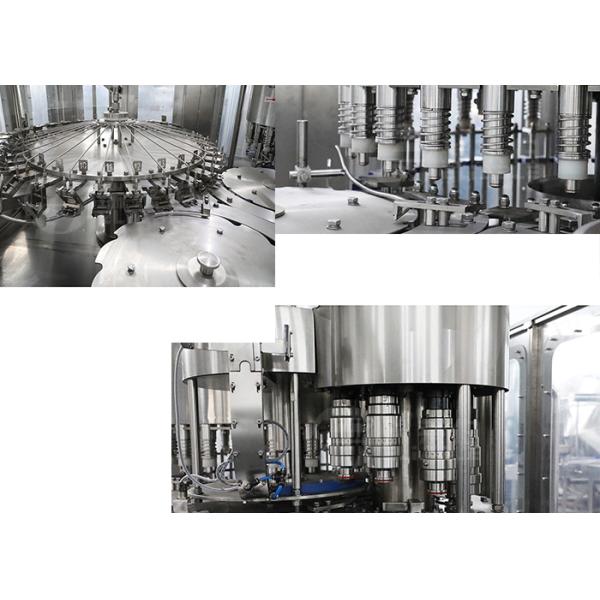

rinser part

This mineral water 3 in 1 bottle machine uses new generation stainless steel spring washing clips and the clips do not contact the upside of bottle screw avoiding the second pollution. It can both clear the inside and the outside of the bottle.

Filler parts

The mineral water 3 in 1 bottle machine applies bottle handling technical and the filling valves go up-down when filling, which make sure the bottle filling goes stable, reliable during high speed. The advanced normal pressure filling principle was applied. Filling is quick, and stable. Not contacting with the liquid avoids second pollution and oxidation.

Capper parts

This mineral water 3 in 1 bottle machine applies magnetic force screw type sealing, realizing auto grasping cap, sealing. The sealing cap force can be adjusted.

Air conveyor:

To provide containers conveyance between the separate technological processes like bottle blow-moulding, depalletizing, rinsing, filling, closing, labeling, group-packing and palletizing. Air conveyors is used for transportation of PET and HDPE bottles. The bottle air conveyor line sustains on the land, the air blower is installed on the top of air bottle conveyor line. The bottle neck will be locked by the bottle holder plate in the air bottle conveyor line, and conveyed to filling machine by air blow.

Specifications:

Model

CGF8-8-3

CGF16-12-6

CGF18-18-6

CGF24-24-8

CGF32-32-10

Rinsing Head No.

8

16

18

24

32

Filling Head No.

8

12

18

24

32

Capping Head No.

3

6

6

8

10

RatedCapacity

(BPH)

2000

4000

7000-8000

10000-12000

12000-15000

Overall Size (MM)

1900*1420*2000mm

2200*1600*2300mm

2450*1900*2300mm

2750*1180*2400mm

4000*2300*2300mm

Weight (T)

1.5

2.2

3.0

4.0

8.0

Power(KW)

3.0kw

3.5kw

4.0kw

4.8kw

7.6kw

Rated Voltage(V)

380V

380V

380V

380V

380V

Competitive Advantage:

1 We have 1 year warranty for all our machines and engineers are overseas available to install and adjust for you.
2 If our client has some question about the machine, we will provide our instant service to solve the problem.
3 We are the trading company and has our own factory, the quality of our machine is very reliable and controllable, thus, we can guarantee our good quality.

General Information

Design Ability:

All the machines designed by CAD

Manufacturing Ability

Mechanical parts: High quality stainless steel,processed by CNC

Reliability

Electrical parts from world famous brands

Professional

Focus on beverage and pharmaceutical packing machines

Exported to over 50 countries with good reputation

10 years Alibaba Golden supplier without complaint

Good Service

Service include complete production line design, manufacturing, on-site installation & aftersales maintenance.

Export Experience

Exported to over 45 countries, with good reputation.

Profession on Export

Authorized import & Export licence.

Spare Parts Show

No Name Qty
1

Sliding fork
2

Spring
3 Plug&pipe for water separator
4 Seals for metal pipe
5 Seals for filling valve
6 Gaskets for bottle neck
7 O rings for liquid tank
8 Metal ball
9 O rings for capping head
10 Conveyor chain
11 Conveyor wheel
12 Bearing
13 Bearing sea
14

Black wheel
15 Mid relay
16 Thermorelay
17 Speed adjust
