Specifications
Brand Name :
Reliable
Model Number :
CGF32-32-10
Certification :
CE&ISO&TUV&SGS
Place of Origin :
China,JiangSu,Zhangjiagang
MOQ :
1 set
Price :
28000-32000
Payment Terms :
TT & L/C
Supply Ability :
20 Sets Per Months
Delivery Time :
30 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package
Material :
SUS304/316
Advantage :
Efficiency
Filling volumele Size :
0.2-2l
Processing :
washer filler capper
Control :
Touch Screen
Capacity :
12000-15000BPH
Warranty :
1 Year for Spare Parts
Bottle shape :
Square Round Bottle
Description

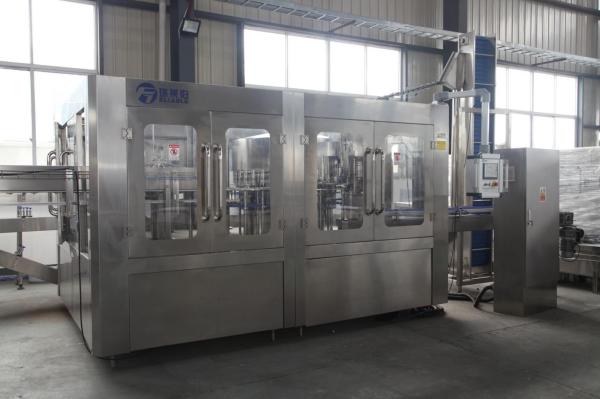

Automatic Liquid Water Bottle Filling Machine For PET Bottle 2000-12000BPH

1. We use direct connection technology between air conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing.
2. Neck-hanging technology is applied in bottle transportation. Instead of traditional starwheel, we use neck-hanging gripper to make bottle-size-changing easily, without equipment height adjustment, only arch board and starwheel such little nylon parts need to be changed.

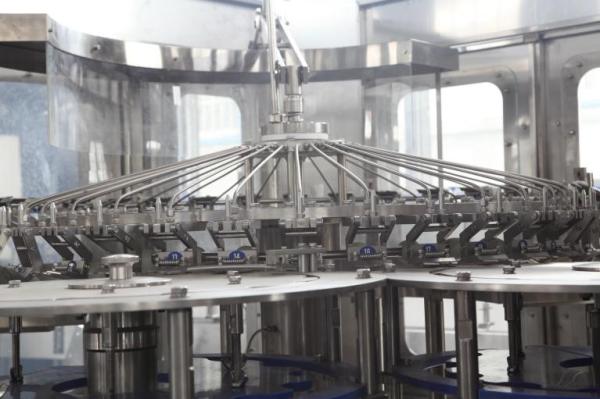

3. Specially-designed rinser grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution.

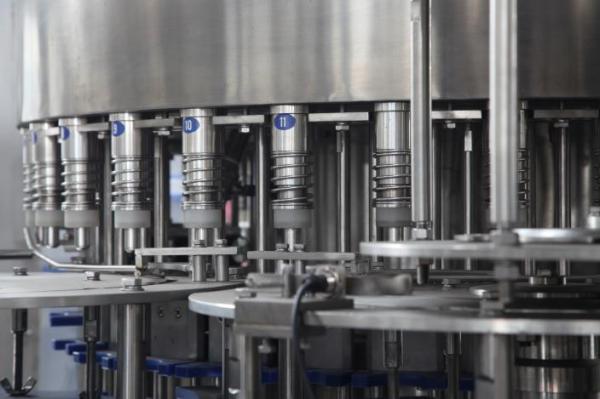

4. Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss.
5. Splint of starwheel using twist descending way to simplify the process of bottle-size-changing.
6. The machine applies to the production of natural mineral water, purified water and mineralized water.


Quick Detail:

Name: Full Automatic PET Bottle Filling Machine For Small Mineral Water Machines
Capacity: 12000-15000bph
Material: Food stage stainless steel
Control: PLC & touch screen control
Suitable Bottle: PET bottle
Bottle Volume: 0.3-2L
Dimension: By order
Function: washing filling capping 3 in 1
Technology: Advanced
After-sales service provided: Engineers available to service machinery overseas .

Description:

1.This drinking water filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping. Most elements of the electrical system employ famous brand advanced products. Each machine element that contacts with the liquid is made of high quality stainless steel.They obtain the advantages of good abrasive resistance, high stability, low failure rate, etc.

2.The quality of the equipments reaches the international level.

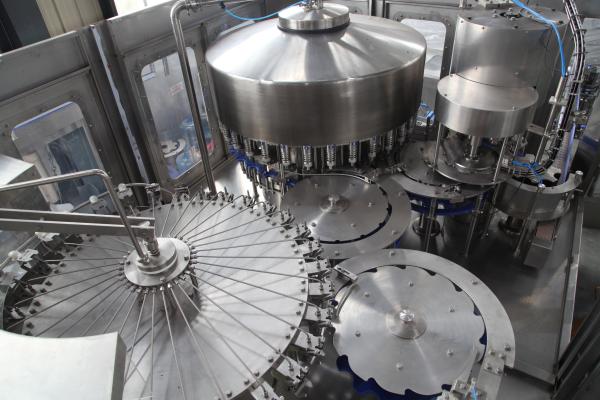

3.The rinsing, filling and capping will be finished just by one machine. It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.

4.Advanced programmable PLC is equipped to control the main machine. Main electronic components are all from famous international enterprises. All spare parts that may touch with water are made from high-quality SUS304 stainless steel.


Specifications:

Model

CGF8-8-3

CGF16-12-6

CGF18-18-6

CGF24-24-8

CGF32-32-10

Rinsing Head No.

8

16

18

24

32

Filling Head No.

8

12

18

24

32

Capping Head No.

3

6

6

8

10

RatedCapacity

(BPH)

2000

4000

7000-8000

10000-12000

12000-15000

Overall Size (MM)

1900*1420*2000mm

2200*1600*2300mm

2450*1900*2300mm

2750*1180*2400mm

4000*2300*2300mm

Weight (T)

1.5

2.2

3.0

4.0

8.0

Power(KW)

3.0kw

3.5kw

4.0kw

4.8kw

7.6kw

Rated Voltage(V)

380V

380V

380V

380V

380V

Competitive Advantage:

1.We have 1 year warranty for all our machines and engineers are overseas available to install and adjust for you.

2.If our client has some question about the machine, we will provide our instant service to solve the problem.

3.We are the trading company and has our own factory, the quality of our machine is very reliable and controllable, thus, we can guarantee our good quality.

4.We have business relationship with many countries such as Europe, America, Africa, Middle East, Southeast Asia and so on, and we are honored with our turnkey project.

General Information

Design Ability:

All the machines designed by CAD

Manufacturing Ability

Mechanical parts: High quality stainless steel,processed by CNC

Reliability

Electrical parts from world famous brands

Professional

Focus on beverage and pharmaceutical packing machines

Exported to over 50 countries with good reputation

10 years Alibaba Golden supplier without complaint

Good Service

Service include complete production line design, manufacturing, on-site installation & aftersales maintenance.

Export Experience

Exported to over 45 countries, with good reputation.

Profession on Export

Authorized import & Export licence.

Spare Parts Show

No Name Qty
1

Sliding fork

2

Spring

3 Plug&pipe for water separator
4 Seals for metal pipe
5 Seals for filling valve
6 Gaskets for bottle neck
7 O rings for liquid tank
8 Metal ball
9 O rings for capping head
10 Conveyor chain
11 Conveyor wheel
12 Bearing
13 Bearing sea
14

Black wheel

15 Mid relay
16 Thermorelay
17 Speed adjust

Besides,I think this information you will be interested in:


1.Min Order: 1 set
2.Payment Terms:30% by T/T ad down payment, 70% by T/T before shipment.
3.Delivery Time: 30 working days after getting 30% down payment and after confirm preform bottle & cap samples.
4.Installment:If you needed, We will send engineers to the factory after preparation work is completed.

Transaction History

Our products are sold well not only in domestic, but also in Chile,Venezuela,Egypt,Peru,Maldives,United States,Brunei Darussalam,Saudi Arabia,Panama,Cambodia,Bhutan,Bolivia,Bulgaria,Nicaragua,Dominican Republic,Kenya,Somalia,Australia,Switzerland,Mozambique and other countries.
